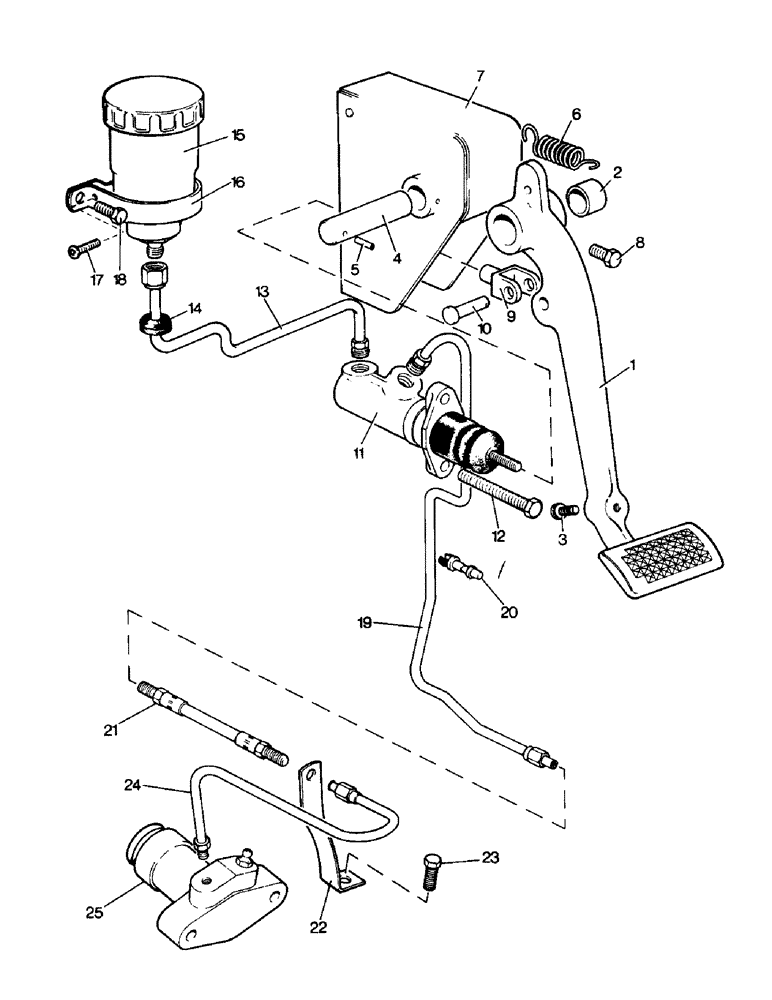

Запчасти Case IH 995 (B06-1) - CLUTCH, CLUTCH RELEASE MECHANISM - HYDRAULIC COMPONENTS, 990Q, 995Q, 990SK, 995SK, 996Q, 996SK (03.1) - CLUTCH

1a

K954947

PEDAL

CLUTCH PEDAL - with bush (990Q, 995Q, 996Q), Includes: Ref. 2

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11089142 and after

1шт.

1b

K954318

PEDAL

CLUTCH PEDAL - with bush (990Q, 995Q, 996Q), Includes: Ref. 2

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11089142

1шт.

1c

K954947

PEDAL

CLUTCH PEDAL - with bush (990SK, 995SK, 996SK), Includes: Ref. 2

1шт.

2

K628754

BUSHING

BUSH - clutch pedal

1шт.

3

K609206

SCREW

- 1/4 UNC x 1 in., pedal stop

1шт.

4

K950569

PIN

PIVOT PIN - clutch pedal

1шт.

5

K19552

GROOVED PIN,1/8" x 1 1/8", Type A

Pin, Grooved, , pivot to bracket 1/8" x 1 1/8", Type A

1шт.

6

K624947

SPRING

- pedal return

1шт.

7a

K954831

SUPPORT

BRACKET - clutch pedal (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11089142 and after

1шт.

7b

K949098

SUPPORT

BRACKET - clutch pedal (990Q, 995Q, 996Q)

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11089142

1шт.

7c

K954831

SUPPORT

BRACKET - clutch pedal (990SK, 995SK, 996SK)

1шт.

8

K602846

SCREW,5/16" - 18 x 5/8", Gr S

SETSCREW - 5/16 UNC x 5/8 in., Serial Range: (Bracket-cab)

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Bracket-cab)

2шт.

9

K622205

FORK

END - 5/16 UNF

1шт.

10

K625954

PIN

CLEVIS PIN - 5/16 in., 1-3/16 in.

1шт.

K11934

PIN

SPLIT PIN - 1/16 x 1/2 in.

1шт.

425-115

NUT,5/16"-24, G5

LOCKNUT - 5/16 UNF

1шт.

11

K950544

CYLINDER,36.32mm Stroke

MASTER CYLINDER - mineral oil seals

1шт.

12a

413-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

SETSCREW - 5/16 UNC x 1-1/8 (Cylinder to cab)

1шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Cylinder-cab)

2шт.

13a

K951343

PIPE

- reservoir to master cylinder (990Q, 995Q, 996Q)

1шт.

13b

K954505

PIPE

- reservoir to master cylinder (990SK, 995SK, 996SK)

1шт.

14

K627748

GROMMET

- 5/8 in., bulkhead

1шт.

15

K951526

RESERVOIR

1шт.

K964488

CAP

FILLER CAP - reservoir

1шт.

K964813

COVER

- blue, reservoir cap

1шт.

16

K624873

CLIP

- reservoir

1шт.

17

K614946

SCREW,Pan, #10 - 32 x 3/4"

SETSCREW - no. 10 UNF x 3/4 in.

1шт.

K19488

SPRING WASHER

SPRING WASHER - 3/16 in.

1шт.

K617080

NUT

- no. 10 UNF

1шт.

18

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in.

1шт.

K19488

SPRING WASHER

SPRING WASHER - 5/16 in.

1шт.

19a

K954405

PIPE

- master cylinder to flexible (990Q, 995Q, 996Q)

1шт.

19b

K954503

PIPE

- master cylinder to flexible pipe (990SK, 995SK, 996SK)

1шт.

20a

K625008

CLIP

PIPE CLIP (990Q, 995Q, 996Q)

1шт.

20b

K621728

PIPE

CLIP (990SK, 995SK, 996SK)

1шт.

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

- 1/4 UNC x 5/8 in. (990SK, 995SK, 996SK)

1шт.

K607043

NUT

- 1/4 UNC (990SK, 995SK, 996SK)

1шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (990SK, 995SK, 996SK)

1шт.

21a

K952745

PIPE

FLEXIBLE PIPE - M12 x 4-5/8 in. (990Q, 995Q, 990SK, 995SK)

1шт.

21b

K952511

PIPE

FLEXIBLE PIPE - M12 x 16-3/8 in. (996Q, 996SK)

1шт.

K652100

LOCK NUT

LOCKNUT - M12 (990Q, 995Q, 990SK, 995SK)

2шт.

K652100

LOCK NUT

LOCKNUT - M12 (996Q, 996SK)

1шт.

K626345

LOCK WASHER

SPRING WASHER - 1/2 in. (990Q, 995Q, 990SK, 995SK)

2шт.

K626345

LOCK WASHER

SPRING WASHER - 1/2 in. (996Q, 996SK)

1шт.

22

K953808

PIPE

BRACKET - flexible pipe (990Q, 995Q, 990SK, 995SK)

1шт.

23

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in. (990Q, 995Q, 990SK, 995SK)

1шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (990Q, 995Q, 990SK, 995SK)

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (990Q, 995Q, 990SK, 995SK)

1шт.

24

K952746

PIPE

- flexible to slave cylinder (990Q, 995Q, 990SK, 995SK)

1шт.

25a

K952267

CYLINDER

SLAVE CYLINDER - mineral oil seals (990Q, 995Q, 990SK, 995SK)

1шт.

25b

K950550

CYLINDER

SLAVE CYLINDER - mineral oil seals (996Q, 996SK)

1шт.

K964572

SEAL KIT

SEAL KIT - master cylinder (Mineral oil seals)

1шт.

FOOTNOTE

1шт.

Not applicable to N. America

1шт.

K964573

SEAL KIT

SEAL KIT - slave cylinder (Mineral oil seals) (990Q, 995Q, 990SK, 995SK)

1шт.

K964576

SEAL KIT

SEAL KIT - slave cylinder (Mineral oil seals) (996Q, 996SK)

1шт.

K964534

SCREW,M12 x 1

BLEED SCREW - 12 MM

1шт.

FOOTNOTE

1шт.

Not applicable to N. America

1шт.
