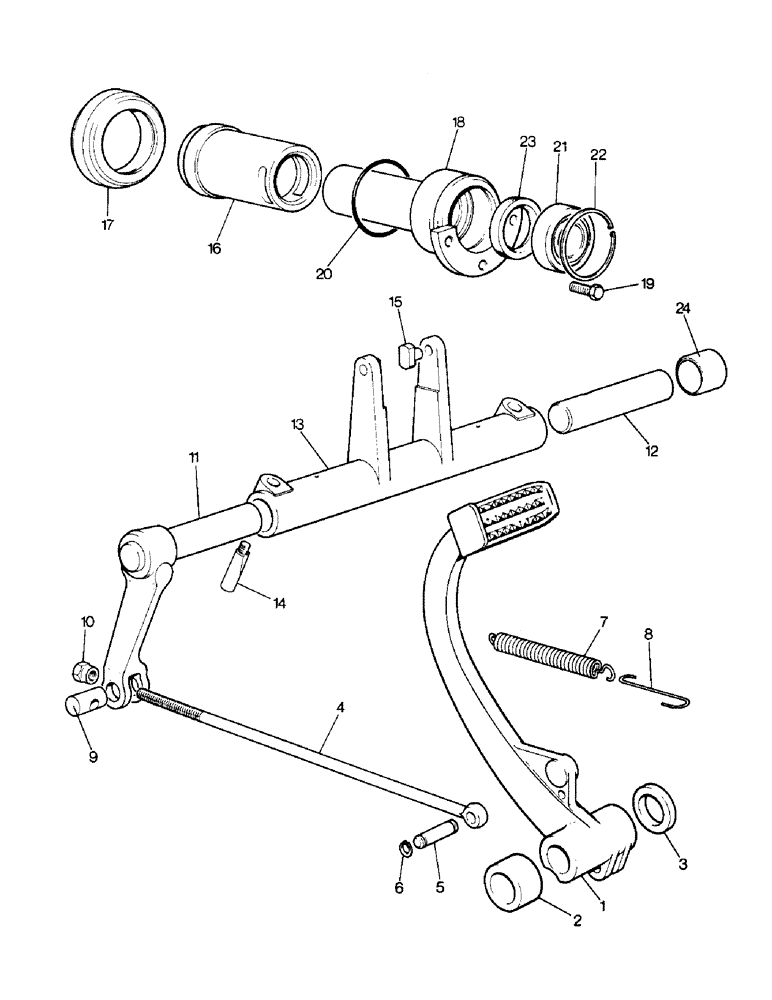

Запчасти Case IH 995 (B03-1) - CLUTCH, CLUTCH RELEASE MECHANISM, 990, 990G, 995, 995G (03.1) - CLUTCH

1

K943381

CLUTCH

PEDAL

1шт.

2

K954731

BUSHING

SPACER - 7/8 in.

1шт.

3

K954732

BUSHING

SPACER - 3/16 in.

1шт.

4

K951897

STEM

ROD - pedal to stud shaft

1шт.

5

K950269

PIN

- 3/8 x 1-1/4 in.

1шт.

6

K621562

RING, SNAP

CIRCLIP - 3/8 in., external

2шт.

7

K624927

SPRING

- pedal return

1шт.

8

K946631

SPRING

ANCHOR - return spring

1шт.

9

K14744

PIN

- 3/4 x 1-1/2 in.

1шт.

280136

NUT,3/8"-16, G8

1шт.

10

K607521

NUT

ADUSTING NUT - 3/8 UNC

1шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

LOCKNUT - 3/8 UNC

1шт.

11

K951221

CLUTCH

STUD SHAFT AND LEVER - left-hand

1шт.

(K951221) : See figure L10-1 / L11-1 / L11-3 for "Bearing Bushing" & "Flange" that this shaft may ride through.

1шт.

12

K951908

SHAFT

STUD SHAFT - right-hand

1шт.

13

K950509

CLUTCH

FORK

1шт.

14

K609425

LARGE PIN

COTTER PIN - 3/8 UNC

2шт.

280136

NUT,3/8"-16, G8

2шт.

K19472

WASHER

- 3/8 in.

2шт.

K11522

WASHER

SHAKEPROOF WASHER - 3/8 in.

2шт.

15

K84748

TRUNNION

PIN - clutch fork

2шт.

16

K951494

CARRIER

- thrust bearing

1шт.

17

K620153

THRUST BEARING,69.84mm ID x 103.17mm OD x 21.59mm W

4" O.D.

1шт.

18a

K956404

SUPPORT

SNOUT - bearing carrier

1шт.

No Keyway, 8 - 7/8" Long

1шт.

Used on 990, 990G, 995, 995G, S/N 11089342 and after

1шт.

18b

K965201

SUPPORT

SNOUT KIT, use K965192

1шт.

Used on 990, 990G, 995, 995G, up to S/N 11089342

1шт.

K956404

SUPPORT

SNOUT

1шт.

K623430

OIL SEAL

OIL SEAL - 45 x 65 x 8 MM

1шт.

K956029

CLUTCH

DRIVESHAFT

1шт.

19

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in. (Support snout to frame)

3шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Support, Serial Range: snout-frame)

3шт.

20

K623545

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - 3 in. internal dia.

1шт.

21

K620190

BALL BEARING

- clutch driveshaft

1шт.

22

K621430

CIRCLIP

- 75 MM, internal

1шт.

23

K623430

OIL SEAL

OIL SEAL - 45 x 65 x 8 MM, clutch driveshaft

1шт.

Used on 990, 990G, 995, 995G, S/N 11089342 and after

1шт.

24

K628753

BUSHING

BUSH - main frame

2шт.
