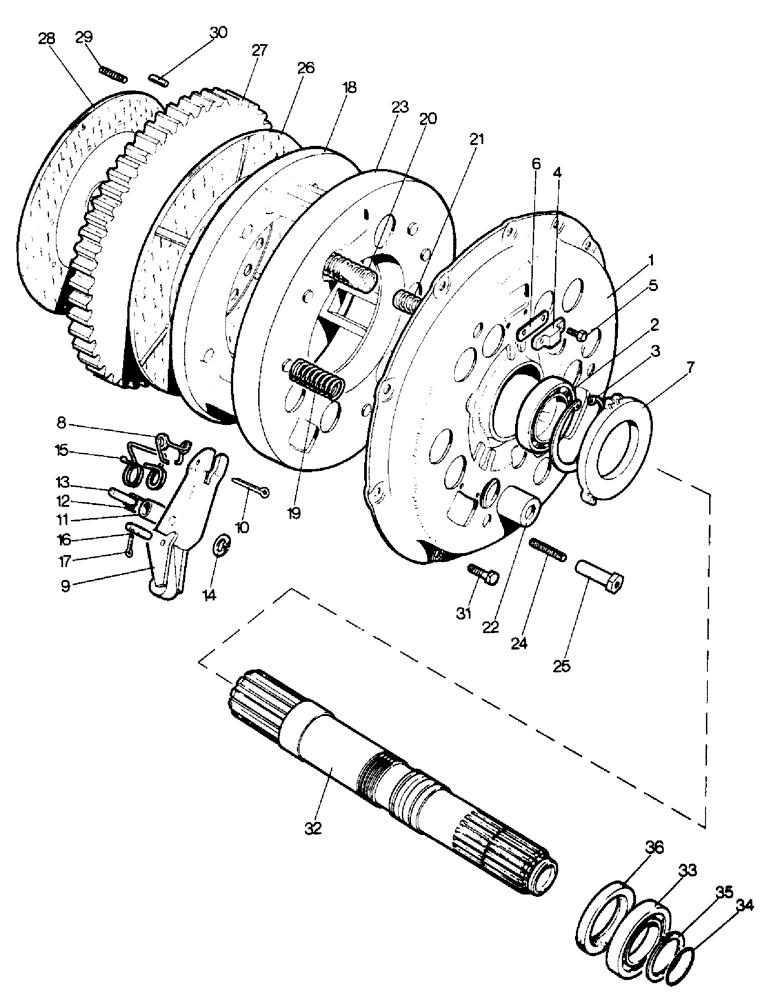

Запчасти Case IH 995 (B01-1) - CLUTCH, DOUBLE CLUTCH UNIT, 990, 990G, 990Q, 990SK, 995, 995G, 995Q, 995SK (03.1) - CLUTCH

K962822

CLUTCH

ASSEMBLY, Includes: Ref. 1 - 25

1шт.

1

K917999

COVER

OUTER COVER

1шт.

2

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

1шт.

3

K89326

RING, SNAP

CIRCLIP - 3-1/8 in. dia. internal

1шт.

4

K900257

PAD

ADJUSTING PAD - release lever

3шт.

5

K900272

SCREW

SETSCREW - 1/4 UNC x 1/2 in., Serial Range: (Pads-cover)

6шт.

K900279

WASHER

SHAKEPROOF WASHER - 1/4 in., Serial Range: (Pads-cover)

6шт.

6a

K900258

SHIM,.002" Thk

(Pads to cover) .002" Thk

1шт.

6b

K901723

SHIM,.003" Thk

(Pads to cover) .003" Thk

1шт.

6c

K904138

SHIM,.010" Thk

(Pads to cover) .010" Thk

1шт.

6d

K904139

SHIM,.020" Thk

(Pads to cover) .020" Thk

1шт.

7

K900268

PLATE

- release levers

1шт.

8

K900267

RETAINER

- lever plate

3шт.

9

K900275

LEVER

RELEASE LEVER

3шт.

0

K900278

PIN

SPLIT PIN - release lever

3шт.

K900280

WASHER

- split pin

6шт.

11

K900264

ROLLER

- release lever

3шт.

12

K900273

NEEDLE

ROLLER - release lever

57шт.

13

K900265

PIN

- release lever roller

3шт.

14

K900274

RING, SNAP

CIRCLIP - lever pin

6шт.

15

K961128

SPRING

- anti-rattle

3шт.

16

K900266

PIN

- release lever pivot

3шт.

17

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), , Pivot pin (Replaced K900271) 3/32" x 1/2"

3шт.

18

K961046

PLATE, THRUST

PRESSURE PLATE

3шт.

19

K902514

SPRING

THRUST SPRING - PTO, pink

6шт.

20

K928922

SPRING

THRUST SPRING - transmission-outer, red

6шт.

21

K902513

SPRING

THRUST SPRING - transmission-inner, brown

6шт.

22

K900256

SPRING

CUP

12шт.

23

K918606

COVER

INNER COVER

1шт.

24

K918607

SCREW

ADUSTING SCREW - 5/16 UNF

3шт.

25

K918608

NUT

LOCKNUT - 5/16 UNF, special

3шт.

26a

K923375

CLUTCH DISC

DRIVEN PLATE - transmission, 11 in. (990, 990G, 990Q, 990SK)

1шт.

K961832

FACING

S - 11 in. F30C and rivets (990, 990G, 990Q, 990SK)

1шт.

Ref #26A - 1 3/4" Dia. Major 10 spline 12/15/95

1шт.

26b

K942507

CLUTCH

DRIVEN PLATE - transmission, 11 in. (995, 995G, 995Q, 995SK)

1шт.

Ref #26B - Replaced by K957254 is 1.160 Width of Hub. The old plate was 1.150 12/15/95

1шт.

1539024C1R

REMAN-CLUTCH DISC

995 SN 11070001 & Aft., Reman For New P/N K942507, N.A. Only

1шт.

1539024C1C

CORE-CLUTCH DISC

Return Number, For N.A. Only

1шт.

K962961

CLUTCH

FACINGS - 11 in. Thermoid and rivets (995, 995G, 995Q, 995SK)

1шт.

27

K906446

PLATE, THRUST

SEPARATOR PLATE

1шт.

28a

K915827

CLUTCH & DISC ASSY

DRIVEN PLATE - PTO, 11 in.

1шт.

Used on models 990, 990Q, 990G, 990SK, S/N E52890 and after

1шт.

Used on models 995, 995Q, 995G, 995SK, S/N E50780 and after

1шт.

K962052

CLUTCH

FACINGS - 11 in. F30C and rivets

1шт.

Ref #28A - Use A48244 1 1/8" 10 spline 1.41" Hub 12/15/95

1шт.

Used on models 990, 990Q, 990G, 990SK, S/N E52890 and after

1шт.

Used on models 995, 995Q, 995G, 995SK, S/N E50780 and after

1шт.

28b

K89322

CLUTCH & DISC ASSY

DRIVEN PLATE - PTO, 10 in.

1шт.

Used on models 990, 990Q, 990G, 990SK, up to S/N E52890

1шт.

Used on models 995, 995Q, 995G, 995SK, up to S/N E50780

1шт.

K961828

KIT

FACINGS - 10 in. F30C and rivets

1шт.

Used on models 990, 990Q, 990G, 990SK, up to S/N E52890

1шт.

Used on models 995, 995Q, 995G, 995SK, up to S/N E50780

1шт.

29

K13226

SPRING

- flywheel

3шт.

30

K621838

PIN

DOWEL - 5/16 / 7/16 x 1-1/8 in., Serial Range: (Clutch-flywheel)

2шт.

31

K602903

SCREW

BOLT - 3/8 UNC x 7/8 in., Serial Range: (Clutch-flywheel)

9шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in., Serial Range: (Clutch-flywheel)

9шт.

32a

K957320

DRIVE SHAFT

CLUTCH DRIVESHAFT (replaced K956029)

1шт.

Used on models 990, 990Q, 990G, 990SK, 995, 995Q, 995G, 995SK, S/N 11089342 and after

1шт.

32b

K965201

SUPPORT

CLUTCH DRIVESHAFT KIT - replaces K949879 (990, 990G, 995, 995G)

1шт.

Ref #32B - (Shaft 19 3/16") 12/15/95

1шт.

Used on models 990, 990Q, 990G, 990SK, 995, 995Q, 995G, 995SK, up to S/N 11089342

1шт.

32c

K965192

SUPPORT

CLUTCH DRIVESHAFT KIT - replaces K949879 (990Q, 990SK, 995Q, 995SK)

1шт.

Used on models 990, 990Q, 990G, 990SK, 995, 995Q, 995G, 995SK, up to S/N 11089342

1шт.

33

K620190

BALL BEARING

- clutch driveshaft

1шт.

34

K628864

O-RING

"O" RING - 39.5 MM internal dia., driveshaft

1шт.

Used on models 990, 990Q, 990G, 990SK, 995, 995Q, 995G, 995SK, up to S/N 11089342

1шт.

35

K12922

RING, SNAP

CIRCLIP - 1-3/4 in. external

3шт.

36

K623430

OIL SEAL

OIL SEAL - 45 x 65 x 8 MM

1шт.

Used on models 990, 990Q, 990G, 990SK, 995, 995Q, 995G, 995SK, S/N 11089342 and after

1шт.
