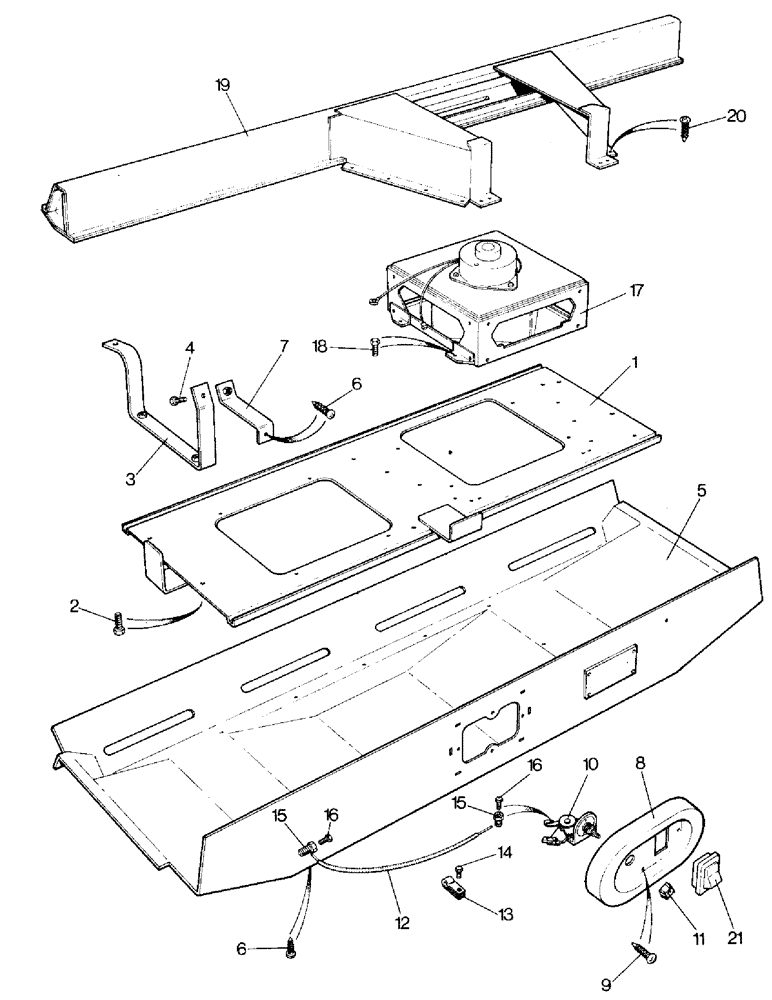

Запчасти Case IH 995 (L24-1) - CHASSIS, HEATER UNIT FOR CAB OPTIONAL EQUIPMENT, 990Q, 995Q, 996Q UP TO S/N 11088300 (12) - CHASSIS

1

K951420

BASE

PLATE - cab heater

1шт.

2

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in. (Baseplate to supports)

6шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Baseplate-supports)

6шт.

3

K952504

SUPPORT

BRACKET - baseplate

3шт.

4

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in. (Support brackets to cab)

6шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Support, Serial Range: brackets-cab)

6шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (Support brackets to cab)

4шт.

5

K953373

COVER

- cab heater

1шт.

6

K624528

SCREW

SELF-TAPPING SCREW - no. 6 x 5/8 in.

14шт.

K626760

WASHER

CUP WASHER - no. 6

14шт.

7

K953390

SUPPORT

BRACKET - heater cover

2шт.

8

K953372

PANEL

CONTROL PANEL

1шт.

9

K624529

PAN

SELF-TAPPING SCREW - no. 6 x 7/8 in.

4шт.

10

K952101

VALVE, CONTROL

CONTROL - water valve

1шт.

11

K952783

KNOB

- water control

1шт.

12

K952103

CABLE

FLEXIBLE CABLE - inner and outer

1шт.

13

K621681

CLIP

(Cable to radiator flange)

1шт.

14

K602840

SCREW

SETSCREW - 5/16 UNC x 1/2 in. (Cable to radiator flange)

1шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Cable to radiator flange)

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (Cable to radiator flange)

1шт.

15

K952104

TRUNNION

- inner cable

2шт.

16

K605578

SCREW

SETSCREW - no. 8 UNC x 3/8 in. trunnion

2шт.

17

K953872

FAN

UNIT

1шт.

K951514

PLATE

BLANKING PLATE

1шт.

K624524

SCREW

SELF-TAPPING SCREW - no. 6 x 3/8 in.

4шт.

18

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SETSCREW - 1/4 UNC x 1/2 in. (Fan unit to baseplate)

4шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (Fan, Serial Range: unit-baseplate)

4шт.

K607043

NUT

- 1/4 UNC (Fan, Serial Range: unit-baseplate)

4шт.

19

K951440

DUCT

DEMISTER DUCT

1шт.

20

K624528

SCREW

SELF-TAPPING SCREW - no. 6 x 5/8 in.

12шт.

K952699

SEALING STRIP

- 6 x 20 MM x 11-3/8 in.

2шт.

K952700

TAPE

SEALING STRIP - 6 x 20 MM x 8 in.

2шт.

K952701

TAPE

SEALING STRIP - 6 x 20 MM x 2 in.

3шт.

K952706

TAPE

SEALING STRIP - 6 x 20 MM x 9-1/2 in.

2шт.

K952705

TAPE

SEALING STRIP - 6 x 12 MM x 25-3/4 in.

2шт.

21

K953351

SWITCH

- heater fan, Lucas 5340620

1шт.
