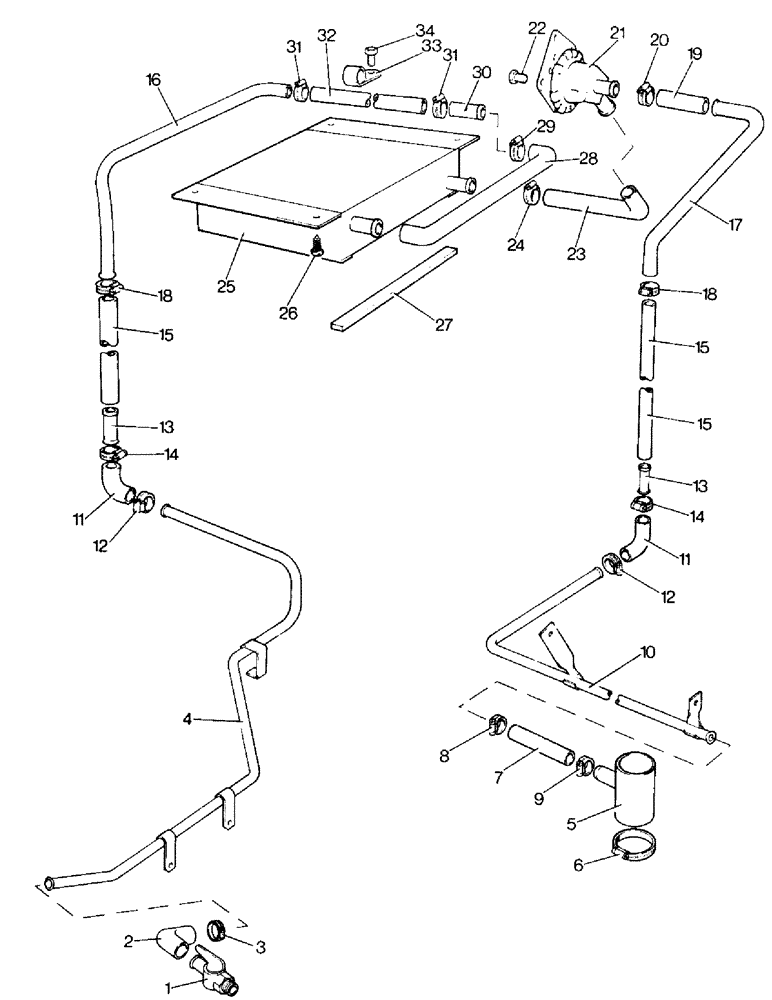

Запчасти Case IH 995 (L23-1) - CHASSIS, CAB HEATER PIPES AND FITTINGS, OPTIONAL EQUIPMENT (12) - CHASSIS

1

K952109

COCK

TAP - 3/8 BSP, water pump body

1шт.

2

K626806

FITTING

RUBBER ELBOW

1шт.

3a

K622023

CLAMP

HOSE CLIP - 3/4 in., replaces K621770 (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

3b

K622024

CLAMP

HOSE CLIP - 7/8 in., replaces K13070 (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

4a

K953450

PIPE

- water supply (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

4b

K953816

PIPE

- water supply (990SK, 995SK, 996SK)

1шт.

K602808

SCREW

SETSCREW - 5/16 UNC x 1-3/8 in. (Pipe to timing cover) (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Pipe to timing cover) (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (Pipe to timing cover) (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

5

K953814

ADAPTER

ADAPTOR - radiator outlet hose

1шт.

6

K622029

CLAMP

HOSE CLIP - 1-7/8 in.

2шт.

7

K626807

HOSE

- 1/2 - 5/8 x 5 in., adaptor to pipe (990SK, 995SK, 996SK)

1шт.

7b

K955051

ADAPTER

ADAPTOR - hose, 5/8 in. to 1/2 in. dia. (990 4WD, 995 4WD, 996 4WD)

1шт.

8

K622023

CLAMP

HOSE CLIP - 3/4 in., replaces K621770 (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

9

K622024

CLAMP

HOSE CLIP - 7/8 in., replaces K13070 (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

9

K622024

CLAMP

HOSE CLIP - 7/8 in., replaces K13070 (990SK, 995SK, 996SK)

2шт.

10a

K626828

HOSE

- heater, 45 in. (990 4WD, 995 4WD, 996 4WD)

1шт.

K625007

ADHESIVE

CABLE TIE (990 4WD, 995 4WD, 996 4WD)

1шт.

280136

NUT,3/8"-16, G8

(Pipe to manifold) (990Q, 995Q, 996Q) 3/8"-16, G8

1шт.

280136

NUT,3/8"-16, G8

(Pipe to manifold) (990SK, 995SK, 996SK) 3/8"-16, G8

2шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Pipe to manifold) (990Q, 995Q, 996Q)

1шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Pipe to manifold) (990SK, 995SK, 996SK)

2шт.

11

K626806

FITTING

RUBBER ELBOW (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

2шт.

11

K626806

FITTING

RUBBER ELBOW (990SK, 995SK, 996SK)

1шт.

12

K622023

CLAMP

HOSE CLIP - 3/4 in., replaces K621770

2шт.

13

K952106

CONNECTOR, ELEC

HOSE CONNECTOR - 1/2 x 1-1/2 in. (990Q, 995Q, 996Q)

2шт.

14

K622023

CLAMP

HOSE CLIP - 3/4 in., replaces K621770 (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

4шт.

15a

K626825

HOSE

- 1/7 x 63 in., cab pillars (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

2шт.

15b

K626828

HOSE

- 5/8 x 45 in. (990SK, 995SK, 996SK)

1шт.

15c

K626829

PIPE

HOSE - 5/8 x 28 in. (990SK, 995SK, 996SK)

1шт.

K625007

ADHESIVE

CLIP - hose to frame (990SK, 995SK, 996SK)

1шт.

K627752

GROMMET

- 1 in. dia., replaces K627746 (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

2шт.

16

K952782

HEATER

PIPE - right-hand (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

17

K952781

HEATER

PIPE - left-hand (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

18

K622023

CLAMP

HOSE CLIP - 3/4 in., replaces K621770 (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

4шт.

19

K626827

HOSE

- 1/2 x 3 in. (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

20

K622023

CLAMP

HOSE CLIP - 3/4 in., replaces K621770 (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

2шт.

21

K952100

VALVE

WATER METERING VALVE (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

22

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

SETSCREW - no. 10 UNF x 1/2 in. (Valve to mounting bracket) (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

2шт.

K626340

RING

SPRING WASHER - 3/16 in. (Valve to mounting bracket) (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

2шт.

K617080

NUT

- no. 10 UNF (Valve to mounting bracket (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

2шт.

23

K953101

HOSE

- valve to radiator (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

24

K622023

CLAMP

HOSE CLIP - 3/4 in., replaces K621770 (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

2шт.

25

K951515

RADIATOR

- cab heater (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

26

K624524

SCREW

SELF-TAPPING SCREW - no. 6 x 3/8 in. (Radiator to plate) (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

4шт.

27

K953102

SEAL

ING STRIP - 1/4 x x 1/2 x 7-1/2 in. (Radiator to plate) (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

2шт.

28

K953100

HOSE

- radiator to connection (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

29

K622023

CLAMP

HOSE CLIP - 3/4 in., replaces K621770 (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

2шт.

30

K952106

CONNECTOR, ELEC

HOSE CONNECTOR - 1/2 x 1-1/2 in. (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

31

K622023

CLAMP

HOSE CLIP - 3/4 in., replaces K621770 (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

2шт.

32

K626826

HOSE

- 1/2 x 30 in. (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

1шт.

33

K621709

CLIP

(990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

2шт.

34

K614964

SCREW

SETSCREW - 1/4 UNF x 1/2 in. (Hose to heater baseplate) (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

2шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (Hose to heater baseplate) (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

2шт.

K616980

NUT

- 1/4 UNC (Hose to heater baseplate) (990Q, 995Q, 996Q, 990 4WD, 995 4WD, 996 4WD)

2шт.
