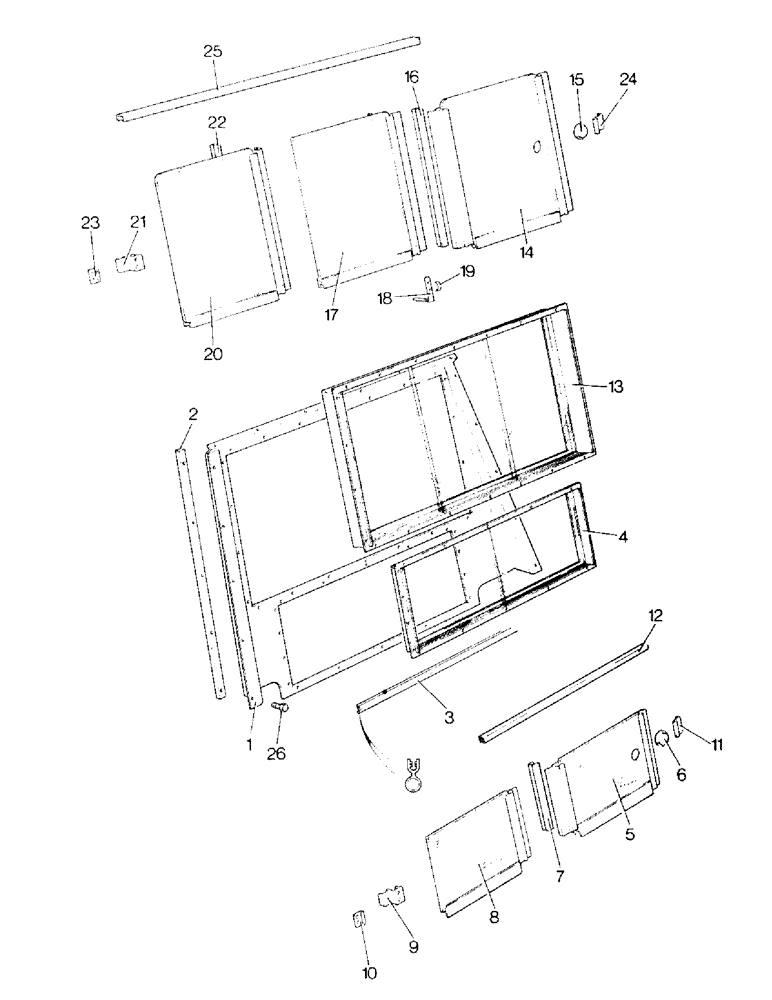

Запчасти Case IH 995 (L22-1-1) - CHASSIS, PANEL, RIGID, FOR REAR OF CAB (12) - CHASSIS

K956196

PANEL

ASSEMBLY - rigid, rear, Includes: Ref. 1A - 25

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K955683

PANEL

ASSEMBLY - rigid, rear, U3080, Includes: Ref. 1A - 25

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

1a

K955214

PANEL

- rear

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

1b

K955022

PANEL

- rear

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

2a

K955219

RUBBER

SEALING STRIP - 1/4 x 5/8 x 33-1/2 in.

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

2b

K955387

SEAL

ING STRIP - 1/4 x 5/8 x 35-14/ in.

2шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

3

K691979

PANEL

SEALING STRIP - order in metres

1шт.

4

K955322

WINDOW

DOUBLE SLIDING WINDOW ASSEMBLY, Includes: Ref. 5 - 12

1шт.

5

K965117

PANEL

GLASS PANEL - with circular finger pull, Includes: Ref. 6 & 7

1шт.

6

K965108

KNOB

FINGER PULL - circular

1шт.

7

K965120

SEAL

NYLON WEATHERSEAL - order in metres

1шт.

8

K965118

PANEL

GLASS PANEL - with finger pull, Includes: Ref. 9

1шт.

9

K965109

KNOB

FINGER PULL AND CATCH

1шт.

10

K965112

CATCH

PLATE - left-hand side

1шт.

11

K965113

CATCH

PLATE - right-hand side

1шт.

12

K965119

WEB

NYLON WEBBING - order in metres

1шт.

13a

K955303

WINDOW

TRIPLE SLIDING WINDOW ASSEMBLY, Includes: Ref. 14A - 25

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

13b

K955321

WINDOW

TRIPLE SLIDING WINDOW ASSEMBLY, Includes: Ref. 14A - 25

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

14a

K965194

PANEL

GLASS PANEL - with circular finger pull, Includes: Ref. 15 & 16

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

14b

K965103

PANEL

GLASS PANEL - with circular finger pull, Includes: Ref. 15 & 16

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

15

K965108

KNOB

FINGER PULL - circular

1шт.

16

K965120

SEAL

NYLON WEATHERSEAL

1шт.

17a

K965193

PANEL

GLASS CENTRE PANEL, Includes: Ref. 18 & 19

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

17b

K965102

PANEL

GLASS CENTRE PANEL, Includes: Ref. 18 & 19

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

18

K965107

BOLT

SLIDING BOLT - window catch

1шт.

19

K965106

SPRING

- sliding bolt

1шт.

20a

K965195

PANEL

GLASS PANEL - with finger pull, Includes: Ref. 21 & 22

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

20b

K965105

PANEL

GLASS PANEL - with finger pull, Includes: Ref. 21 & 22

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

21

K965109

KNOB

FINGER PULL AND CATCH

1шт.

22

K965120

SEAL

NYLON WEATHERSEAL - order in metres

1шт.

23

K965112

CATCH

PLATE - left-hand side

1шт.

24

K965113

CATCH

PLATE - right-hand side

1шт.

25

K965119

WEB

NYLON WEBBING - order in metres

1шт.

26

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in.

21шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in.

21шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC

21шт.
