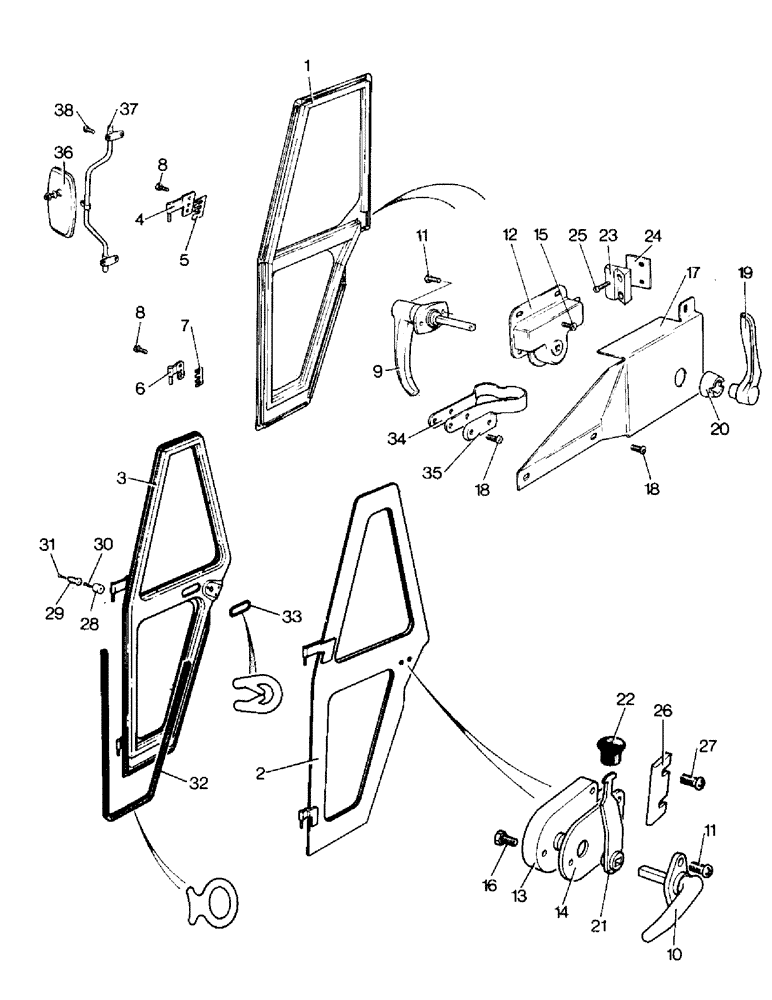

Запчасти Case IH 995 (L20-1-1) - CHASSIS, CAB DOORS AND DOOR FITTINGS (12) - CHASSIS

1

K955488

CAB

DOOR - right-hand

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

2

K950358

DOOR

CAB DOOR - left-hand

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

3a

K955195

DOOR

CAB DOOR - left-hand

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088330 and after

1шт.

3b

K950357

CAB

DOOR - right-hand

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

K626779

WASHER

THRUST WASHER - door hinge

2шт.

4a

K955423

HINGE

- upper, left-hand door

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

4b

K955492

HINGE

- upper, right-hand door

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

5

K955484

DOOR

PACKING PLATE - upper hinges

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

6a

K955421

HINGE

- lower, left-hand door

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

6b

K955494

HINGE

- lower, right-hand door

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

7

K955498

DOOR

PACKING PLATE - lower hinges

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

8

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in. (Hinges to doors)

12шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K626682

WASHER

- 5/16 in., Serial Range: (Hinges-doors)

12шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Hinges-doors)

12шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

9

K955435

HANDLE

- outer locking

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

10

K949336

HANDLE

- outer

2шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

11

K614498

SCREW

- no. 10 UNF x 1/2 in.

4шт.

12a

K955426

LOCK ASSY

LATCH - left-hand door

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

12b

K955496

LOCK

LATCH - right-hand door

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

13a

K951133

LOCK

LATCH - left-hand door

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

13b

K773203

DOOR

LATCH - right-hand door

1шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

14

K950206

RETAINER

PLATE - door latch

2шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

15

86625206

SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"

SETSCREW - no. 10 UNF x 1/2 in. (Latches to doors)

8шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

16

K615408

SCREW,Pan, #10 - 32 x 1"

SETSCREW - no. 10 UNF x 1/2 in., Serial Range: (Latches-doors)

6шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

K626340

RING

SPRING WASHER - 3/16 in., Serial Range: (Latches-doors)

6шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

K626340

RING

SPRING WASHER - 3/16 in., Serial Range: (Latches-doors)

8шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

17a

K955419

LATCH

COVER - left-hand door latch

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

17b

K955497

DOOR

COVER - right-hand door latch

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

18

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

- 1/4 UNC x 5/8 in.

10шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K19470

WASHER

- 1/4 in.

6шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in.

10шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

19

K955448

HANDLE

LEVER - inner

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K955447

SHIM

Inner lever

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

20

K955446

SPACER

ESCUTCHEON - inner handle

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

21

K950360

LEVER

- inner

2шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

22

K901738

KNOB

- inner lever

2шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

23

K955167

DOOR

STRIKER PLATE - door latch

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

24

K955169

DOOR

PACKING PLATE - door striker plates

1шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

25

K614945

SCREW

- no. 10 UNF x 5/8 in.

4шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K626340

RING

SPRING WASHER - 3/16 in.

4шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K617080

NUT

- no. 10 UNF

4шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

26

K948970

STOP

PLATE - door latch

2шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

27

K603931

SCREW

- 1/4 UNC x 1-1/4 in.

4шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in.

4шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

K607251

NUT

DOMED NUT - 1/4 UNC

4шт.

Used on models 990Q, 995Q, 996Q, up to S/N 11088300

1шт.

28

K953495

DOOR

RETAINER - male

2шт.

29

K953496

DOOR

RETAINER - female

2шт.

30

K606521

SCREW

SOCKET SCREW - 1/4 UNC x 7/8 in.

2шт.

31

K603926

SCREW

- 1/4 UNC x 3/4 in.

2шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in.

2шт.

K607043

NUT

- 1/4 UNC

2шт.

32

K949338

DOOR SEAL

DRAUGHT EXCLUDER - order in metres

1шт.

33

K951136

SEALING STRIP

EDGING SRIP - order in metres

1шт.

34

K955485

STRAP

- door pull

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

K955499

STRAP

COVER - door pull strap

2шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

35

K955486

DOOR

RETAINER - door strap

4шт.

Used on models 990Q, 995Q, 996Q, S/N 11088300 and after

1шт.

36

K950922

MIRROR

DRIVING MIRROR

1шт.

K965040

MIRROR

GLASS - driving mirror

1шт.

37

K950921

ARM

SUPPORT BRACKET - driving mirror

1шт.

38

K603926

SCREW

- 1/4 UNC x 3/4 in.

4шт.
