Запчасти Case IH 995 (L13-1) - CHASSIS, BULKHEADS, CLAD DB WEATHERFRAME, 990, 995, 996 (12) - CHASSIS

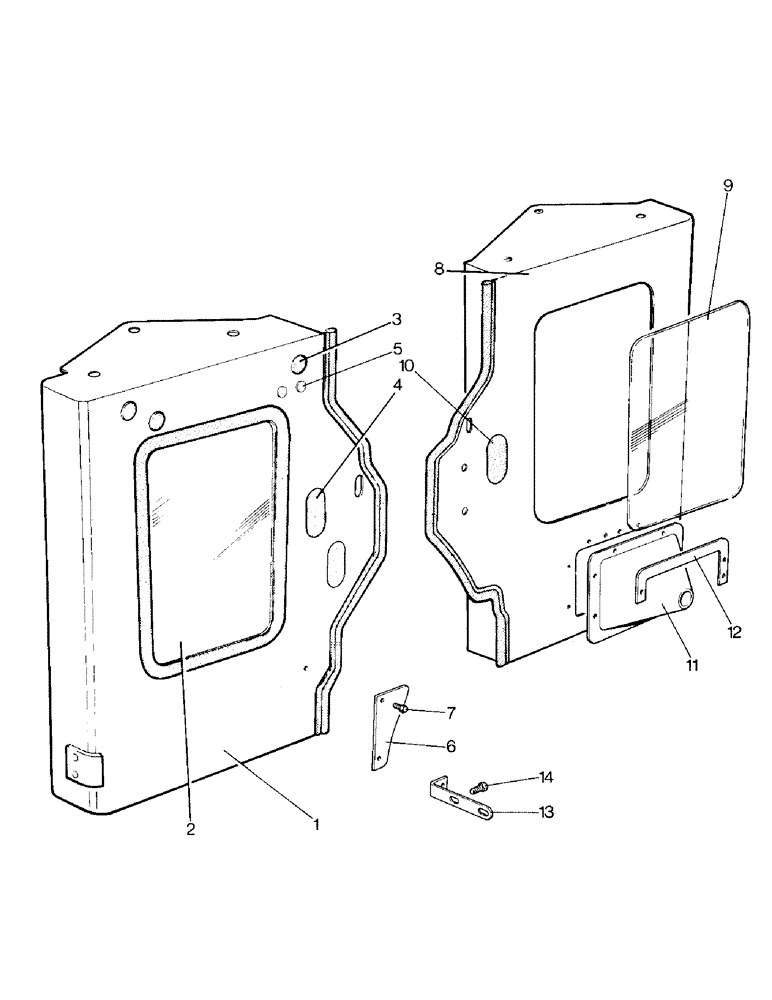

Схема запчастей Case IH 995 - (L13-1) - CHASSIS, BULKHEADS, CLAD DB WEATHERFRAME, 990, 995, 996 (12) - CHASSIS
14
11
10
9
7
5
13
12
4
3
6
1
2
8

Артикул

Название

Примечание

Количество

K773373

PANEL

BULKHEAD PANEL ASSEMBLY - right-hand, Includes: Ref. 1 - 7 and spring washer and nut

1шт.

1

K772792

PANEL

STEEL PANEL

1шт.

2

K772943

GLASS

PANEL

1шт.

3

K691967

GROMMET

3шт.

4

K691968

GROMMET

2шт.

5

K692169

GROMMET

1шт.

6

K775897

PANEL

PIECE

1шт.

7

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

SETSCREW - 1/4 UNC x 5/8 in.

2шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in.

2шт.

K607043

NUT

- 1/4 UNC

2шт.

K773250

PANEL

BULKHEAD PANEL ASSEMBLY - left-hand, manual steering, Includes: Ref. 8 - 12 and rivet

1шт.

8

K772812

PANEL

STEEL PANEL

1шт.

9

K772944

GLASS

PANEL

1шт.

10

K691968

GROMMET

1шт.

11a

K773437

BOOT

GAITER

1шт.

12

K774163

CLAMP

- gaiter, Serial Range: (Gaiter-bulkhead)

1шт.

K692059

RIVET

, Serial Range: (Gaiter-bulkhead)

8шт.

K774182

PANEL

BULKHEAD PANEL ASSEMBLY - left-hand, hydrostatic steering, Includes: Ref. 8 - 12 and rivet

1шт.

8

K772812

PANEL

STEEL PANEL

1шт.

9

K772944

GLASS

PANEL

1шт.

10

K691968

GROMMET

1шт.

11b

K774166

BOOT

GAITER

1шт.

12

K774163

CLAMP

, Serial Range: (Gaiter-bulkhead)

1шт.

K692059

RIVET

, Serial Range: (Gaiter-bulkhead)

8шт.

13

K773597

SUPPORT

STAY - bulkhead to main frame

2шт.

14

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Bulkheads to frame platforms and stays) Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

K19472

WASHER

- 3/8 in. (Bulkheads to frame platforms and stays)

6шт.

K19482

SPRING WASHER

SPRING WASHER - 3/8 in. (Bulkheads to frame platforms and stays)

6шт.

280136

NUT,3/8"-16, G8

(Bulkheads to frame platforms and stays) 3/8"-16, G8

6шт.

Выбрано товаров: 29
