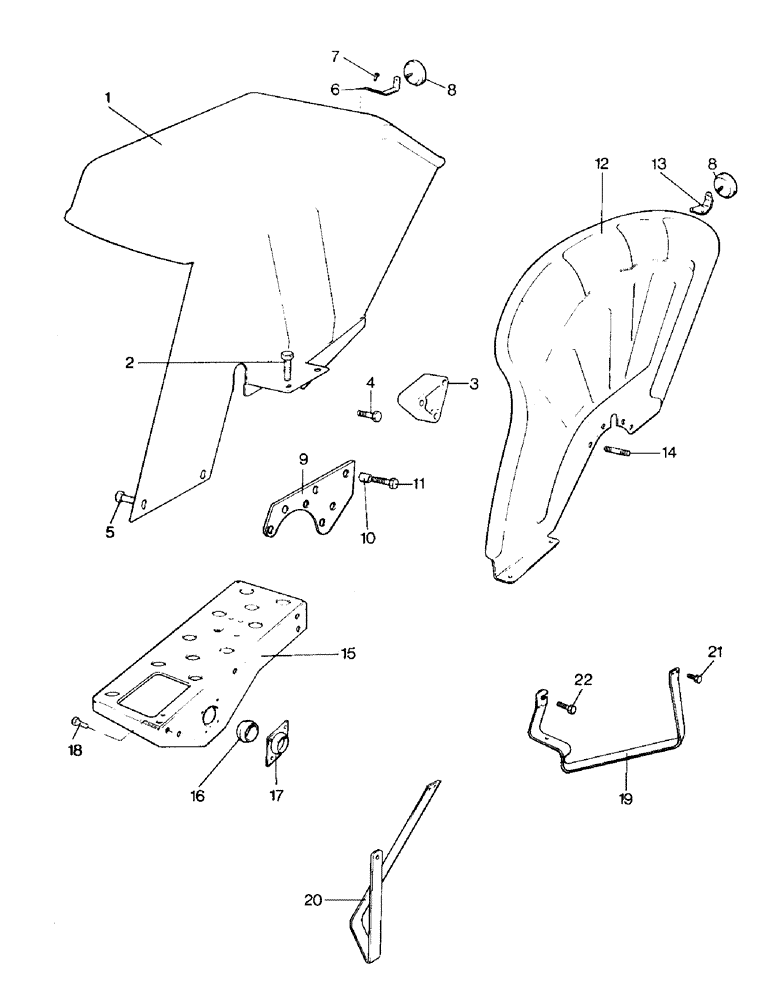

Запчасти Case IH 995 (L10-1) - CHASSIS, STANDARD FENDERS AND FRAME PLATFORMS, 990, 995, 996 (12) - CHASSIS

K945491

FENDER

FULL FENDER - left-hand

1шт.

1

K945492

FENDER

FULL FENDER - right-hand

1шт.

K627713

PLUG

PLASTIC PLUG - 7/32 in.

3шт.

2

K603141

SCREW

SETSCREW - 1/2 UNC x 1-1/4 in. (Fenders to axle case)

4шт.

K626345

LOCK WASHER

SPRING WASHER - 1/2 in. (Fenders to axle case)

4шт.

3

K921932

BLOCK

PACKING BLOCK (Fenders to reduction units)

2шт.

4

K600889

BOLT

- 1/2 UNC x 3-3/4 in. (Fenders to reduction units)

6шт.

K626345

LOCK WASHER

SPRING WASHER - 1/2 in. (Fenders to reduction units)

6шт.

K626686

WASHER

- 1/2 in. (Fenders to reduction units)

6шт.

5

K602735

SCREW

SETSCREW - 1/4 UNC x 3/4 in. (Fenders to frame platforms)

4шт.

K19470

WASHER

- 1/4 in. (Fenders to frame platforms)

8шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in. (Fenders to frame platforms)

4шт.

6

K929468

BRACKET

- reflector, full

2шт.

7

K603924

SCREW

- 1/4 UNC x 1/2 in., Serial Range: (Brackets-fenders)

4шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in., Serial Range: (Brackets-fenders)

4шт.

K607043

NUT

- 1/4 UNC, Serial Range: (Brackets-fenders)

4шт.

8

K964716

REFLECTOR

- red

2шт.

9

K945701

SUPPORT

PLATE - fender (High clearance)

2шт.

10

K627080

BUSHING

DISTANCE PIECE - 3/4 in. (High clearance)

6шт.

11

K600810

BOLT

- 1/2 UNC x 2-1/2 in. (High clearance)

6шт.

K19484

LOCK WASHER

SPRING WASHER - 1/2 in. (High clearance)

6шт.

K607004

NUT

- 1/2 UNC (High clearance)

6шт.

K913209

FENDER

SHELL FENDER - left-hand

1шт.

12

K913205

FENDER

SHELL FENDER - right-hand

1шт.

K627710

PLUG

RUBBER PLUG - 3/4 in.

2шт.

13

K943024

BRACKET

- reflector

2шт.

14

K608406

STUD

- 1/2 UNC x 2-7/8 in. (Fender to reduction units)

8шт.

K626345

LOCK WASHER

SPRING WASHER - 1/2 in. (Fender to reduction units)

8шт.

280431

NUT,1/2"-13, G5

(Fender to reduction units) 1/2"-13, G5

8шт.

K913906

FRAME

PLATFORM - left-hand (990, 995), Includes: Ref. 16 & 17

1шт.

K947410

FRAME

PLATFORM - left-hand (996), Includes: Ref. 16 & 17

1шт.

15

K913903

FRAME

PLATFORM - right-hand, Includes: Ref. 16 & 17

1шт.

16

K904258

SPHERICAL BEARING

BEARING BUSH

1шт.

17

K85415

BRACKET

- bearing

1шт.

18a

K603003

SCREW

SETSCREW - 7/16 UNC x 1 in. (990, 995)

9шт.

18a

K603003

SCREW

SETSCREW - 7/16 UNC x 1 in. (996)

10шт.

18b

K603005

SCREW

SETSCREW - 7/16 UNC x 1-1/4 in. (990, 995)

1шт.

18b

K603005

SCREW

SETSCREW - 7/16 UNC x 1-1/4 in. (996)

2шт.

K19483

SPRING WASHER

SPRING WASHER - 7/16 in. (990, 995)

10шт.

K19483

SPRING WASHER

SPRING WASHER - 7/16 in. (996)

12шт.

19

K950261

BRACKET

STIRRUP - left-hand platform

1шт.

20

K919596

BRACKET

STIRRUP - right-hand, high-clearance

1шт.

21a

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW - 5/16 UNC x 1 in. (Stirrup fixings)

2шт.

21b

K602803

BOLT

SETSCREW - 5/16 UNC x 3/4 in. (Stirrup fixings)

2шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in. (Stirrup fixings)

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16 UNC (Stirrup fixings)

2шт.

22

K603052

SCREW

SETSCREW - 76/16 UNC x 1-1/4 in. (Stirrup fixings)

1шт.

K626344

WASHER, LOCK

SPRING WASHER - 7/16 in.

1шт.
