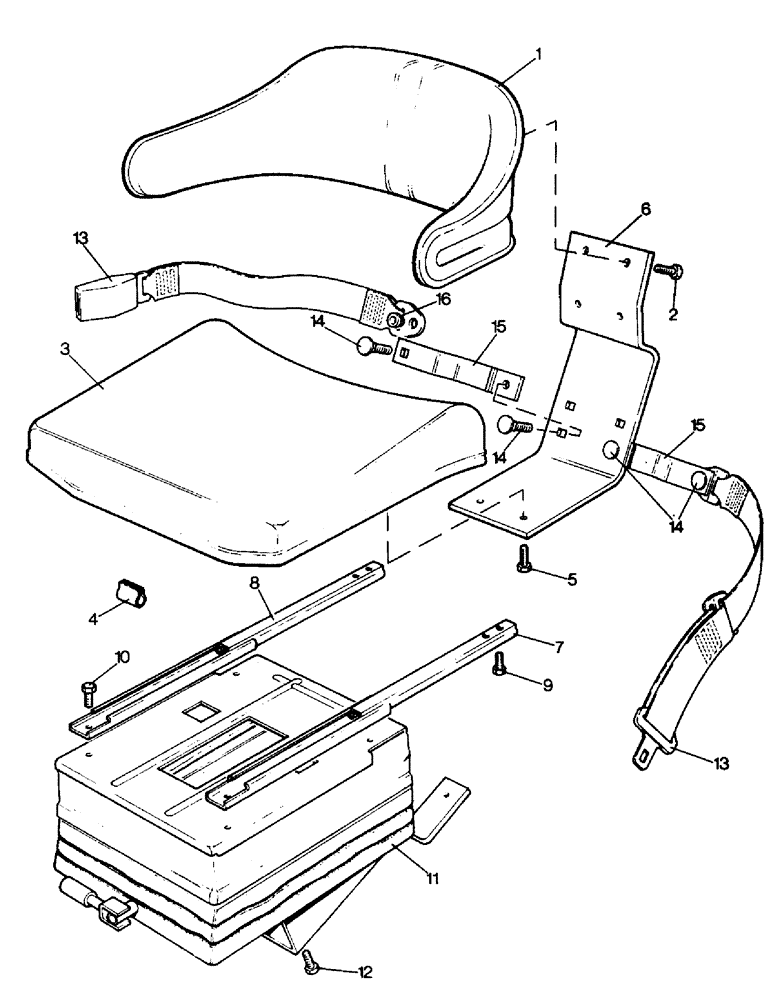

Запчасти Case IH 995 (L06-1) - CHASSIS, ADJUSTABLE ARMCHAIR SEAT, 990Q, 995Q, 996Q, 990SK, 995SK, 996SK (12) - CHASSIS

K953182

SEAT

AND SUSPENSION ASSEMBLY, Includes: Ref. 1 - 11

1шт.

German special

1шт.

K953183

SEAT

CUSHION AND BACKREST, Includes: Ref. 1 - 6

1шт.

1

K964635

SEAT

BACKREST

1шт.

2

K650029

SCREW

- M8 x 20 MM

4шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in.

4шт.

3

K964634

CUSHION

SEAT CUSHION

1шт.

4

K964809

CLIP

11шт.

5

K650029

SCREW

- M8 x 20 MM

4шт.

K626341

SPRING WASHER

SPRING WASHER - 1/4 in.

4шт.

6

K964639

SUPPORT

BRACKET

1шт.

7

K964682

SEAT

RUNNER - upper and lower halves, left-hand

1шт.

8

K964681

SEAT

RUNNER - upper and lower halves, right-hand

1шт.

9

K964640

SCREW

- M8 x 20 MM

4шт.

K964644

WASHER

- 15/16 x 7/16 x 5/32 in.

4шт.

K964690

WASHER

- 15/16 x 7/16 x 1/16 in.

4шт.

K11517

WASHER

SHAKEPROOF WASHER - 7/16 in.

4шт.

10

K964633

SCREW

- M8 x 15 MM

4шт.

K11517

WASHER

SHAKEPROOF WASHER - 7/16 in.

4шт.

11

K953184

SEAT

SUSPENSION ASSEMBLY - See Figure L07-1

1шт.

12

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW - 5/16 UNC x 3/4 in. (Seat to cab)

4шт.

K19481

SPRING WASHER

SPRING WASHER - 5/16 in., Serial Range: (Seat-cab)

4шт.

K932694

SEAT BELT UNIT - U3113, Includes: parts listed below

1шт.

13

K200220

SAFETY BELT

SAFETY BELT

1шт.

14

K965178

BOLT

- M10 x 25 MM

4шт.

15

K965179

BRACKET

2шт.

K965180

NUT

- M10

2шт.

K965181

WASHER

- M10

2шт.

16

K965182

BUSHING

SPACER

2шт.

K965183

SHIM

2шт.

K965184

NUT

- M10

2шт.
