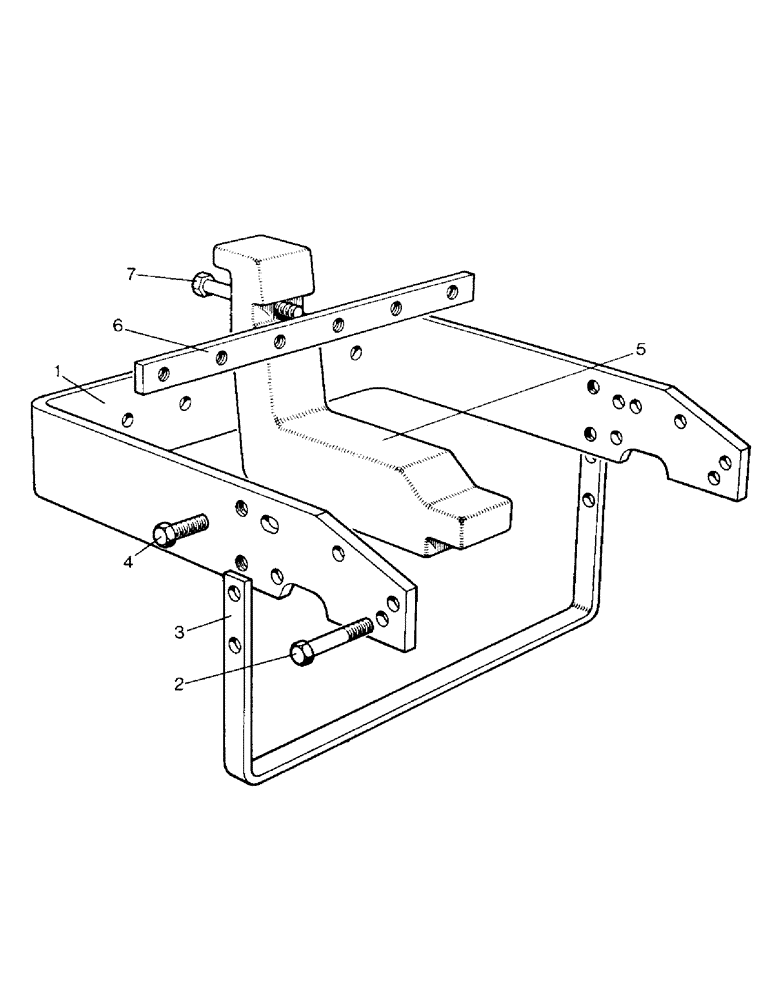

Запчасти Case IH 995 (L04-1) - CHASSIS, FRONT CHASSIS BALLAST WEIGHTS, OPTIONAL EQUIPMENT (12) - CHASSIS

K931600

SPARE PART

FRONT CHASSIS BALLAST WEIGHT UNIT - U1865, Includes: parts listed below

1шт.

1

K916699

SUPPORT

FRAME (Frame to front extension)

1шт.

2

K603276

SCREW

BOLT - 5/8 UNC x 1-3/4 in. (Frame to front extension)

6шт.

K19475

WASHER

- 5/8 in. (Frame to front extension)

16шт.

K19485

WASHER

SPRING WASHER - 5/8 in. (Frame to front extension)

6шт.

Ref #2 - Use 113-600 12/15/95

1шт.

3

K915386

BRACKET

STIRRUP

1шт.

4

K603279

SCREW

SETSCREW - 5/8 UNC x 1-3/8 in., Serial Range: (Stirrup-extension)

4шт.

K19485

WASHER

SPRING WASHER - 5/8 in., Serial Range: (Stirrup-extension)

4шт.

5

K916700

WEIGHT

BALLAST WEIGHT - 67 lb

6шт.

6

K915388

BAR

LOCKING BAR

1шт.

7

K601366

BOLT

- 5/8 UNC x 3-1/2 in. (Weights to locking bar)

6шт.

K19485

WASHER

SPRING WASHER - 5/8 in. (Weights to locking bar)

6шт.
