Запчасти Case IH 995 (M38) - ELECT. EQUIP., ELECT. WIRING, SIDE & REAR LAMPS, 990,995,996 W/O LIGHT DUTY FULL FENDER, A AND AFTER (06) - ELECTRICAL SYSTEMS

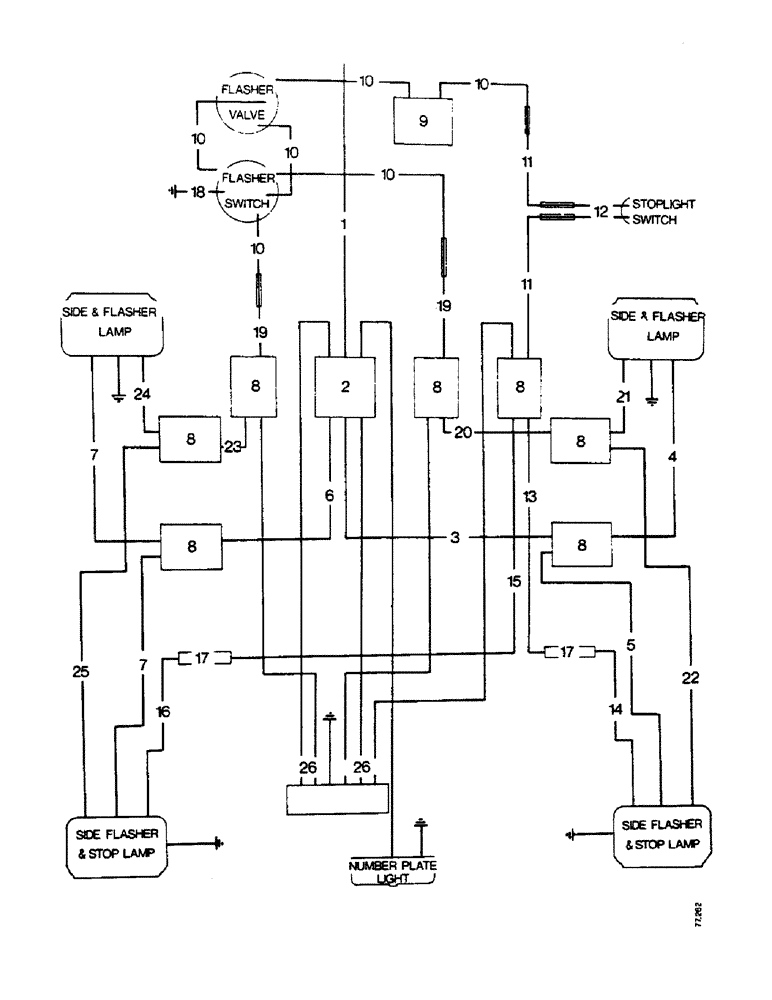

Схема запчастей Case IH 995 - (M38) - ELECT. EQUIP., ELECT. WIRING, SIDE & REAR LAMPS, 990,995,996 W/O LIGHT DUTY FULL FENDER, A AND AFTER (06) - ELECTRICAL SYSTEMS
8
8
10
5
19
10
10
25
22
8
18
12
17
10
6
13
10
4
7
26
9
11
2
26
14
24
8
19
16
8
10
7
11
8
17
1
3
20
21
8
15

Артикул

Название

Примечание

Количество

1

K923775

ELECTRICAL WIRE

LEAD, lighting, Serial Range: switch-connector

1шт.

2

K908905

CONNECTOR, ELEC

CONNECTOR three-way

1шт.

3

K925197

NO LONGER SERVICED

LEAD, right-hand side lamps

1шт.

4

K940639

ELECTRICAL WIRE

LEAD, right-hand side lamps

2шт.

5

K940642

ELECTRICAL WIRE

LEAD, tail lamps

2шт.

6

K925283

NO LONGER SERVICED

LEAD, left-hand side lamps

1шт.

7

K940639

ELECTRICAL WIRE

LEAD, left-hand side lamps

2шт.

8

K86230

CONNECTOR, ELEC

CONNECTOR double

8шт.

9

K925309

CONNECTOR, ELEC

CONNECTOR four-way

1шт.

10

K929555

HARNESS

stop and indicator lamps

1шт.

11

K929738

ELECTRICAL WIRE

LEAD, stop lamps

1шт.

12a

K929739

ELECTRICAL WIRE

LEAD, stop lamp switch K929737

1шт.

12b

K929740

NO LONGER SERVICED

LEAD, stop lamps switch K920206

1шт.

K621633

CABLE

CLIP, stop lamp switch leads

3шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in, frame platform

1шт.

13

K925285

ELECTRICAL WIRE

LEAD, right-hand stop lamp

1шт.

14

K940645

ELECTRICAL WIRE

LEAD, right-hand stop lamp

1шт.

15

K925284

ELECTRICAL WIRE

LEAD, left-hand stop lamp

1шт.

16

K940645

ELECTRICAL WIRE

LEAD, left-hand stop lamp

1шт.

17

K67916

ELEC CONNECTOR

CONNECTOR single

1шт.

18

K923592

ELECTRICAL WIRE

LEAD, indicator, Serial Range: switch-earth

1шт.

19

K925293

ELECTRICAL WIRE

LEAD, direction indicators

1шт.

20

K925287

ELECTRICAL WIRE

LEAD, right-hand direction indicator lamps

1шт.

21

K940641

NO LONGER SERVICED

LEAD, right-hand direction indicator lamps

1шт.

22

K940644

ELECTRICAL WIRE

LEAD, right-hand direction indicator lamps

1шт.

23

K925286

ELECTRICAL WIRE

LEAD, left-hand direction indicator lamps

1шт.

24

K940640

ELECTRICAL WIRE

LEAD, left-hand direction indicator lamps

1шт.

25

K940643

ELECTRICAL WIRE

LEAD, left-hand direction indicator lamps

1шт.

K947419

COVER

lamp connections

1шт.

K615404

SCREW

No. 10 UNF x 1/2 in

1шт.

K626310

WASHER

3/16 in

1шт.

K925167

CABLE

TUBE cable, right-hand lamp leads

1шт.

3

K925168

CABLE

TUBE cable, left-hand lamp leads

1шт.

K627708

GROMMET

1-1/4 in, fenders.

4шт.

K627704

GROMMET

1 in, fenders.

4шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in

8шт.

26a

K925489

HARNESS, 12 in long, trailer socket

1шт.

26b

K942598

HARNESS

24 in long, trailer socket

1шт.

K925197

NO LONGER SERVICED

LEAD, right-hand side/rear lamp (tractors with shell)

1шт.

K925196

NO LONGER SERVICED

LEAD, left-hand side/rear lamp (fenders)

1шт.

K921078

COIL

LEAD, rear number-plate lamp (fenders)

1шт.

K942599

WIRE HARNESS

LEAD, trailer socket (fenders)

1шт.

K925176

COVER

side lamp connections (fenders)

1шт.

K615404

SCREW

No. 10 UNF x 1/2 in (fenders)

1шт.

K626310

WASHER

3/16 in (fenders)

1шт.

K925167

CABLE

TUBE cable, right-hand lamp leads (fenders)

1шт.

K925168

CABLE

TUBE cable, left-hand lamp leads (fenders)

1шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in, fender (fenders)

2шт.

K921078

COIL

LEAD, rear number-plate lamp (fenders)

1шт.

K621644

CLIP

lead to seat (fenders)

1шт.

K19930

GROMMET,3/8" ID x 5/8" Groove Dia

5/8 in, seat support (fenders)

1шт.

Выбрано товаров: 51
