Запчасти Case IH 995 (M18) - ELECTRICAL EQUIPMENT, SIDE LAMPS AND REAR LAMPS, ALL MODELS (06) - ELECTRICAL SYSTEMS

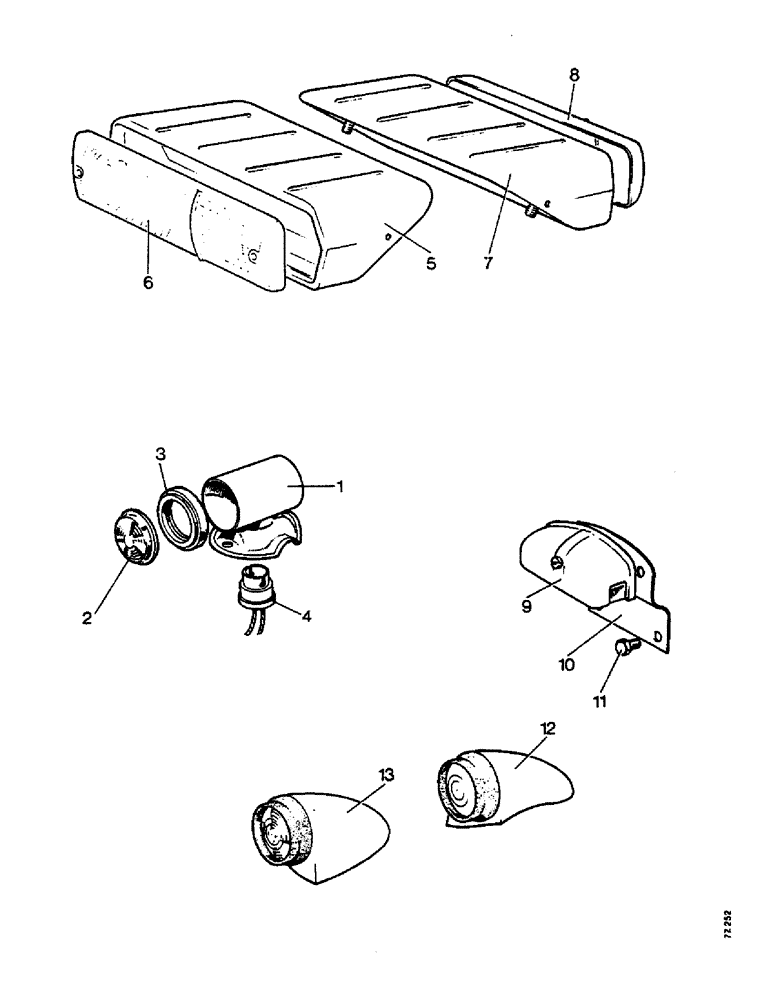

Схема запчастей Case IH 995 - (M18) - ELECTRICAL EQUIPMENT, SIDE LAMPS AND REAR LAMPS, ALL MODELS (06) - ELECTRICAL SYSTEMS
9
7
2
12
13
10
6
3
1
11
5
4
8

Артикул

Название

Примечание

Количество

1

K921080

STOP LIGHT

LAMP side/rear, left-hand, orchid white, Includes: Ref. 2 - 4

1шт.

K921079

LAMP

side/rear, right-hand, orchid white, Includes: Ref. 2 - 4

1шт.

2

K960887

LENS

clear

1шт.

K960888

LENS

red

1шт.

3

K960889

MOUNTING PARTS

MOUNTING lens, black rubber

1шт.

4

K961772

BULB

HOLDER bulb

1шт.

K961827

MOUNTING rubber, bulb holder

1шт.

K615404

SCREW

No. 10 UNF x 1/2 in

4шт.

K617080

NUT

No. 10 UNF

4шт.

K11519

WASHER

shakeproof, 3/16 in

4шт.

5a

K948814

WARNING LIGHT

LAMP side/flasher, left-hand, black.

1шт.

K948813

INDICATOR LIGHT

LAMP side/flasher, right-hand, black.

1шт.

5b

K929167

INDICATOR LIGHT

LAMP side/flasher, left-hand, orchid white.

1шт.

K929166

INDICATOR LIGHT

LAMP side/flasher, right-hand, orchid white.

1шт.

5c

K929171

NO LONGER SERVICED

LAMP side/flasher, left-hand, golden yellow. (Highway tractor)

1шт.

K929170

NO LONGER SERVICED

LAMP side/flasher, right-hand, golden yellow. (Highway tractor)

1шт.

6

K963519

LENS

with washers and screws, left-hand

1шт.

K963518

LENS

with washers and screws, right-hand

1шт.

7a

K948816

LAMP

stop/tail/flasher, left-hand, black.

1шт.

K948815

WARNING LIGHT

LAMP stop/tail/flasher, right-hand, black.

1шт.

7b

K929169

LIGHT

LAMP stop/tail/flasher, left-hand, orchid white.

1шт.

K929168

LIGHT

LAMP stop/tail/flasher, right-hand, orchid white.

1шт.

7c

K929173

NO LONGER SERVICED

LAMP stop/tail/flasher, left-hand, golden yellowl. (Highway tractor)

1шт.

K929172

NO LONGER SERVICED

LAMP stop/tail/flasher, right-hand, golden yellow. (Highway tractor)

1шт.

8

K963517

LENS

with washers and screws, left-hand

1шт.

K963516

LENS

with washers and screws, right-hand

1шт.

K963507

GASKET

lens, side and stop lamps.

4шт.

K963508

ADAPTER

side and stop lamps.

10шт.

K963509

CABLE

earth, side and stop lamps.

4шт.

K624522

SCREW

self-tapping, 1/2 in, earth, Serial Range: leads-fenders.

4шт.

K11519

WASHER

shakeproof, 3/16 in, earth, Serial Range: leads-fenders.

4шт.

K626340

RING

WASHER spring, 3/16 in, earth, Serial Range: leads-fenders.

4шт.

K617080

NUT

No. 10 UNF, Serial Range: lamps-fenders.

8шт.

K626340

RING

WASHER spring, 3/16 in, Serial Range: lamps-fenders.

8шт.

K626310

WASHER

3/16 in, Serial Range: lamps-fenders.

8шт.

9

K943308

PLATE

LAMP number-plate

1шт.

K12355

NUT

domed, 2 BA

2шт.

10

K902460

SUPPORT

BRACKET support

1шт.

11

K603924

SCREW

1/4 UNC x 1/2 in, Serial Range: bracket-seat.

3шт.

K607043

NUT

1/4 UNC, Serial Range: bracket-seat.

3шт.

K626341

SPRING WASHER

WASHER spring, 1/4 in, Serial Range: bracket-seat.

3шт.

12

K921236

INDICATOR LIGHT

LAMP side, left-hand, orchid white. (1210, 1212)

1шт.

K921234

INDICATOR LIGHT

LAMP side, right-hand, orchid white. (1210, 1212)

1шт.

13

K921235

LAMP

rear, left-hand, orchid white. (1210, 1212)

1шт.

K921233

LAMP

rear, right-hand, orchid white. (1210, 1212)

1шт.

K960887

LENS

clear (1210, 1212)

2шт.

K960888

LENS

red (1210, 1212)

2шт.

K962195

SPARE PART SET

MOUNTING rubber (1210, 1212)

4шт.

K616980

NUT

1/4 UNF, lamps to fenders. (1210, 1212)

8шт.

K626341

SPRING WASHER

WASHER spring, 1/4 in, lamps to fenders. (1210, 1212)

8шт.

Выбрано товаров: 50
