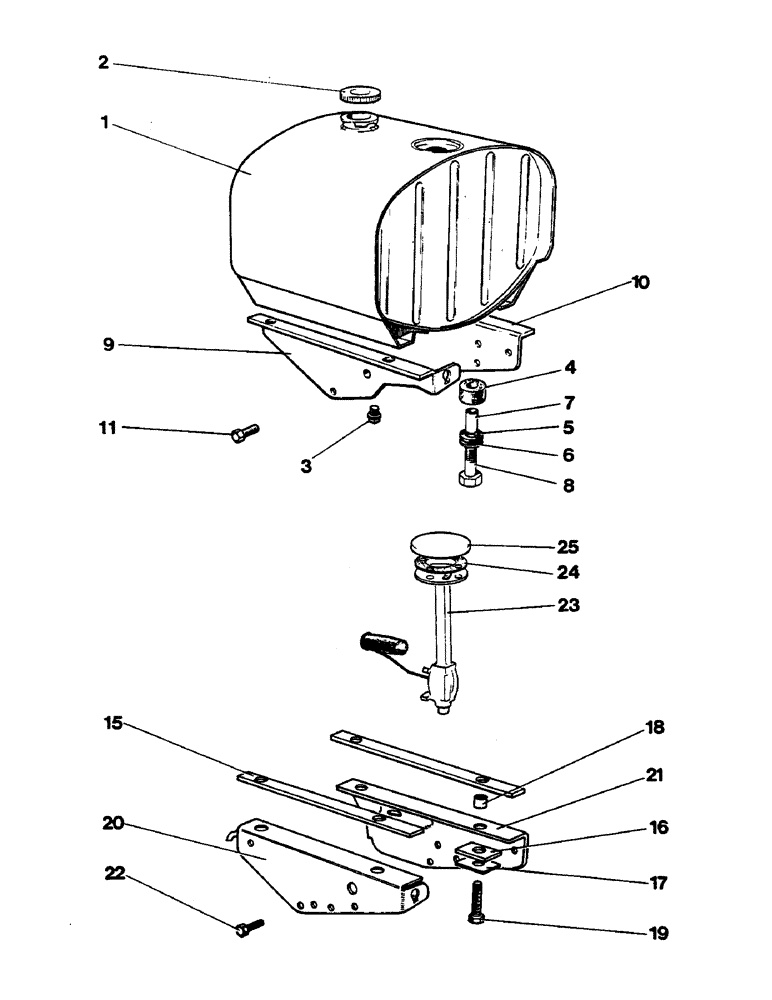

Запчасти Case IH 995 (A36) - ENGINE, FUEL TANK AND FITTINGS, 990, 995 AND 996 TRACTORS (01) - ENGINE
№
Артикул
Название
Примечание
Количество
1
K946007
TANK
FUEL TANK (Part kit K963617)
1шт.
2
K901983
CAP
FILLER CAP (Part kit K963617)
1шт.
3
K19591
PLUG
DRAIN PLUG, 1/8 BSP (Part kit K963617)
1шт.
K19504
WASHER,9.92mm ID x 14.29mm OD x 2mm Thk
FIBRE WASHER, 3/8 in. deg. (Part kit K963617)
1шт.
4
K626462
DAMPER
RUBBER WASHER, fuel tank to support brackets (Part kit K963617)
4шт.
5
K915725
WASHER
RUBBER WASHER, fuel tank to support brackets (Part kit K963617)
4шт.
6
K915726
PLATE
CLAMPING PLATE, fuel tank to support brackets (Part kit K963617)
4шт.
7
K627007
TUBE,0.375" OD x 1.016" L
DISTANCE TUBE, fuel tank to support brackets (Part kit K963617)
4шт.
8
113-5
BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5
Hex, 1/4"- 20 x 1 1/2", G5, Fuel tank to support brackets (Part kit K963617), Replaces K600150
4шт.
K626341
SPRING WASHER
SPRING WASHER, 1/4 in., fuel tank to support brackets (Part kit K963617)
4шт.
9
K945995
BRACKET
SUPPORT BRACKET, left-hand (Part kit K963617)
1шт.
10
K945997
BRACKET
SUPPORT BRACKET, right-hand (Part kit K963617)
1шт.
11
K602902
SCREW
SETSCREW, 3/8 UNC x 3/4 in., Serial Range: brackets-frame
4шт.
K19482
SPRING WASHER
SPRING WASHER, 3/8 in., Serial Range: brackets-frame
4шт.
1
K963617
TANK
FUEL TANK KIT, replaces K962382
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
K962140
PLATE
BLANKING PLATE, fuel gauge aperture
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
K916485
GASKET
blanking plate
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
K617980
STUD
No. 10 UNF x 11/16 in.
5шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
K617080
NUT
No. 10 UNF
5шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
K626340
RING
SPRING WASHER, 3/16 in.
5шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
2
K901983
CAP
FILLER CAP
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
3
K19591
PLUG
DRAIN PLUG, 1/8 BSP
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
K19504
WASHER,9.92mm ID x 14.29mm OD x 2mm Thk
FIBRE WASHER, 3/8 in.
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
15
K915724
STRIP
SEATING STRIP, tank to support brackets
2шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
16
K915725
WASHER
RUBBER WASHER, tank to support brackets
4шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
17
K915726
PLATE
CLAMPING PLATE, tank to support brackets
4шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
18
K915727
TUBE
DISTANCE TUBE, tank to support brackets
4шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
19
K602704
SCREW
SETSCREW, 1/4 UNC x 7/8 in.
4шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
20
K940711
TANK
SUPPORT BRACKET, left-hand
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
21
K940714
TANK
SUPPORT BRACKET, right-hand
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
22
K602902
SCREW
SETSCREW, 3/8 UNC x 3/4 in., Serial Range: brackets-frame
4шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
K19482
SPRING WASHER
SPRING WASHER, 3/8 in., Serial Range: brackets-frame
4шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
K963617
TANK
FUEL TANK KIT - to service K962382 with side mounted fuel gauge Comprises of Ref. 1 - 10 above plus the following
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
23
K946158
SENDER UNIT
FUEL GAUGE UNIT
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
24
K946159
GASKET
, Serial Range: gauge-tank
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
K614965
SCREW
10-32 UNF x 5/8 in., Serial Range: gauge-tank
4шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
K614924
SCREW
10-32 UNF x 1/2 in., Serial Range: gauge-tank
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
K11519
WASHER
LOCKWASHER, 3/4 in., Serial Range: gauge-tank
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
25
K946257
PLUG
NEOPRENE COVER, 3-3/8 in.deg.
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
K925268
BLADE
CONNECTOR
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
86625206
SCREW,Phillips Drive, Pan HD, #10 - 32 x 1/2"
10-32 UNF x 1/2 in., blade to left-hand support.
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
K617080
NUT
No. 10 UNF, blade to left-hand support
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
K19929
BUCKLE
CLIP
1шт.
Used on model 990, up to S/N 856494
1шт.
Used on model 995, up to S/N 926701
1шт.
Used on model 996, up to S/N 983083
1шт.
Выбрано товаров: 130
