Запчасти Case IH 995 (A30) - ENGINE, DOWNSWEPT EXHAUST, 1210 AND 1212 TRACTORS, OPTIONAL EQUIPMENT (01) - ENGINE

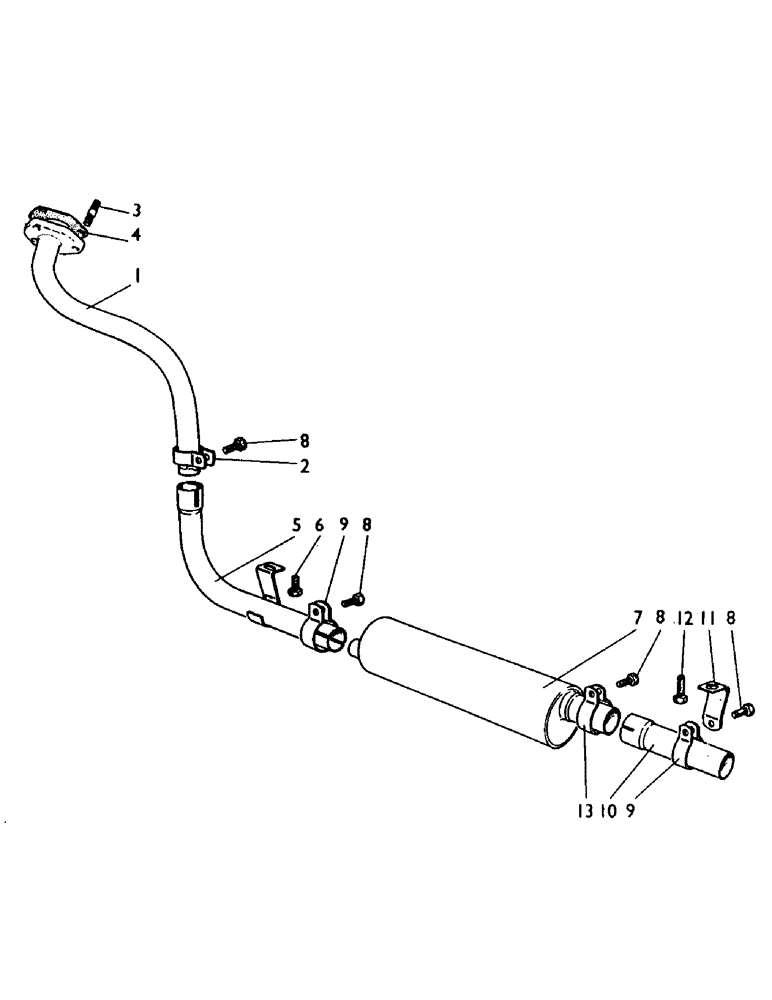

Схема запчастей Case IH 995 - (A30) - ENGINE, DOWNSWEPT EXHAUST, 1210 AND 1212 TRACTORS, OPTIONAL EQUIPMENT (01) - ENGINE
8
10
2
8
13
6
11
8
8
1
7
4
3
12
5
9
9

Артикул

Название

Примечание

Количество

K918190

NO LONGER SERVICED

DOWNSWEPT EXHAUST (U923) - 1210 and 1212 Tractors (Optional Equipment)

1шт.

K919574

X

MANIFOLD, exhaust

1шт.

1

K919575

PIPE, EXHAUST SYSTEM

PIPE, manifold end

1шт.

2

K919581

CLIP

SLIP, exhaust pipe

1шт.

3

K608203

STUD

3/8 UNC x 1-7/16 in., Serial Range: pipe-manifold

3шт.

280136

NUT,3/8"-16, G8

Pipe to manifold 3/8"-16, G8

3шт.

4

K912441

GASKET

, Serial Range: pipe-manifold

1шт.

5

K919578

PIPE, EXHAUST SYSTEM

PIPE, silencer end

1шт.

6

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

SETSCREW, 5/16 UNC x 1 in.

1шт.

K626682

WASHER

5/16 in.

1шт.

7

K910539

MUFFLER

SILENCER

1шт.

8

K602845

BOLT,Hex Hd, 5/16"-18 x 3/4"

SETSCREW, 5/16 UNC x 3/4 in.

4шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

5шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

5шт.

9

K10455

CLIP

2шт.

10

K919652

PIPE

TAIL PIPE

1шт.

11

K919582

SUPPORT

STRAP

1шт.

12

K603274

SCREW

SETSCREW, 5/8 UNC x 1-1/2 in., support strap to hitch bracket

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

Support strap to hitch bracket 5/8"-11, G5

1шт.

K19485

WASHER

SPRING WASHER, 5/8 in., support strap to hitch bracket

1шт.

13

K914852

CLIP

silencer

1шт.

K914347

INSERT

bonnet aperture

1шт.

Выбрано товаров: 22
