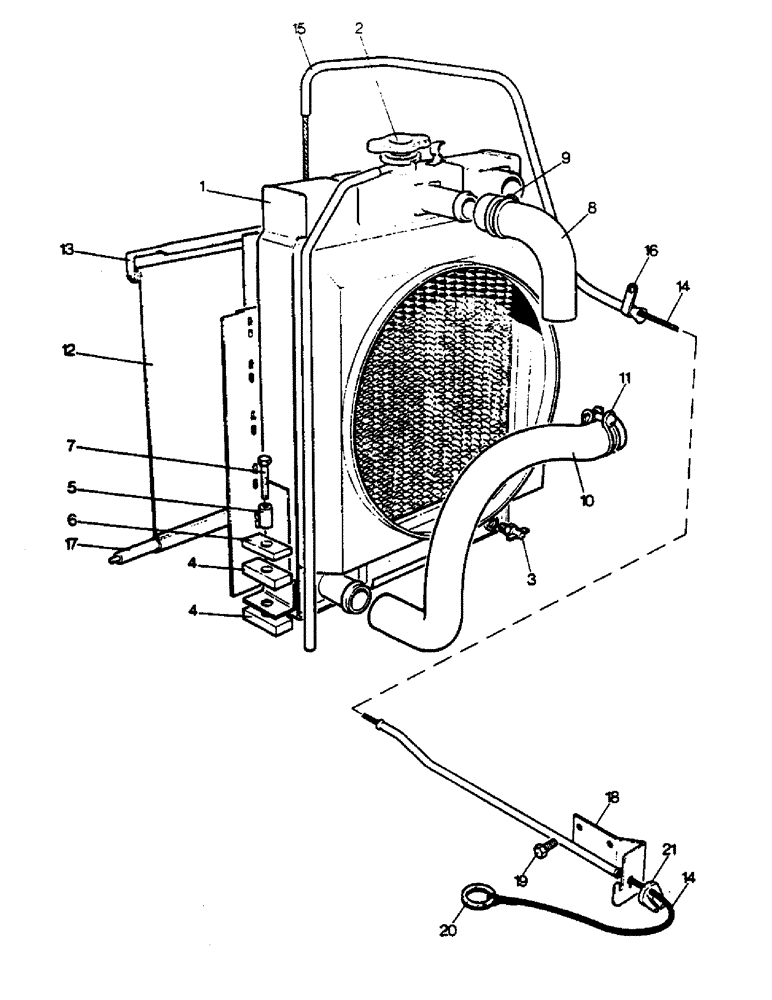

Запчасти Case IH 995 (A22) - ENGINE, RADIATOR AND BLIND, 990, 995 AND 996 TRACTORS (01) - ENGINE

1a

K922057

RADIATOR

2-1/4 in. block, standard (990)

1шт.

1b

K922058

RADIATOR

2-1/2 in. block, standard (995, 996)

1шт.

1c

K942878

RADIATOR

2-3/4 in. block, tropical (995, 996)

1шт.

2a

K945363

CAP

FILLER CAP, 4lb/inf, for K922057/8

1шт.

2b

K945362

CAP

FILLER CAP, 7lb/inf, for K942878

1шт.

3

K622060

PLUG, DRAIN

DRAIN TAP, 1/4 BSP

1шт.

K19501

WASHER

FIBRE WASHER

1шт.

4

K921836

WEDGE

FOOT PACKING

4шт.

5

K908823

TUBE,0.562" OD x 0.875" L

DISTANCE PIECE

2шт.

6

K921837

SHIM

CLAMPING PLATE

2шт.

7

K600406

BOLT

3/8 UNC x 1-3/4 in.

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in.

2шт.

8

K921972

HOSE

radiator inlet

1шт.

9

K622029

CLAMP

HOSE CLIP, 2-1/2 in. dia.

3шт.

10a

K948453

HOSE

radiator outlet

1шт.

Used on model 990, S/N 866384 and after

1шт.

Used on model 995, S/N 943287 and after

1шт.

Used on model 996, S/N 98778 and after

1шт.

10b

K926603

HOSE

radiator outlet

1шт.

Used on model 990, up to S/N 866384

1шт.

Used on model 995, up to S/N 943287

1шт.

Used on model 996, up to S/N 98778

1шт.

11

K622029

CLAMP

HOSE CLIP, 2-1/2 in.

1шт.

K930291

SPARE PART

RADIATOR BLIND UNIT, U1432, Includes: Ref. 12 & 13

1шт.

12

K908846

COVER

RADIATOR BLIND

1шт.

13

K64925

ROD

PULL ROD

1шт.

14

K67196

ROPE

CONTROL CORD, Includes: Ref. 15 - 21

1шт.

15

K921969

TUBE

1шт.

16

K621616

CLIP

, Serial Range: tube-manifold

1шт.

K627749

GROMMET

3/8 in.

1шт.

17

K921971

ROD

ANCHOR, blind

1шт.

K19520

PIN

SPLIT PIN, 1/16 x 3/8 in.

1шт.

18

K954208

GUIDE

REAR GUIDE TUBE

1шт.

19

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in.

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

2шт.

20

K952646

KEY

RING

1шт.

21

K952633

ROD

ANCHOR, cord

1шт.
