Запчасти Case IH 995 (A12) - ENGINE, INJECTION PUMP AND FUEL SYSTEM, 990, 995 AND 996 TRACTORS (01) - ENGINE

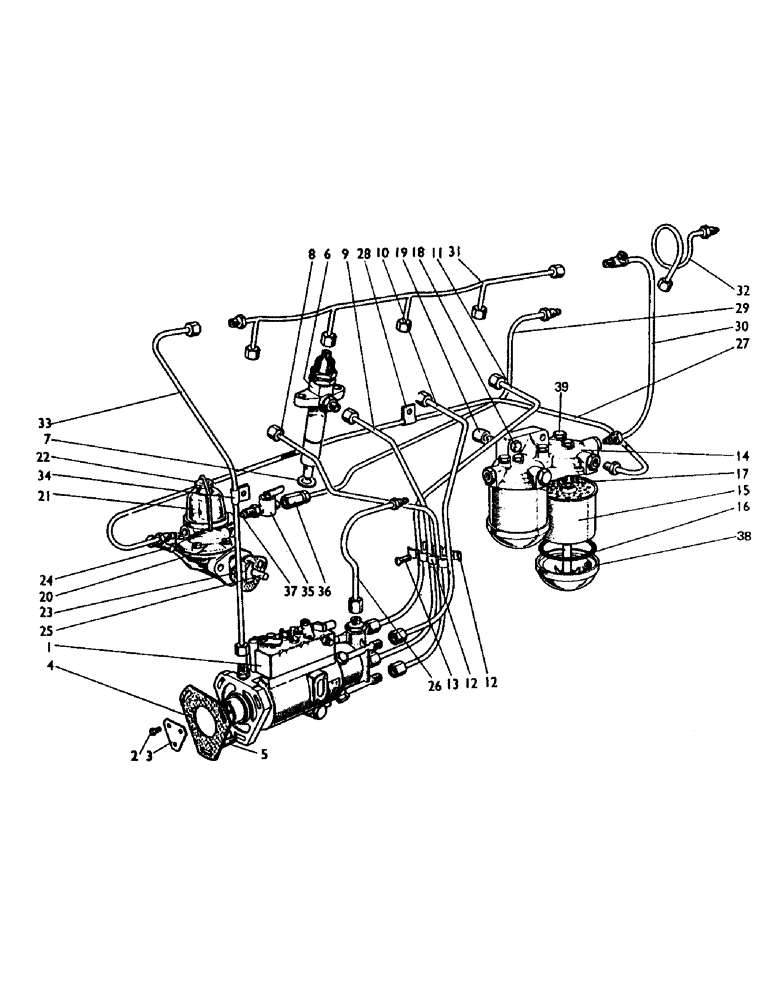

Схема запчастей Case IH 995 - (A12) - ENGINE, INJECTION PUMP AND FUEL SYSTEM, 990, 995 AND 996 TRACTORS (01) - ENGINE
7
32
18
17
16
29
12
35
15
24
4
22
23
10
37
3
27
30
13
39
5
2
31
19
12
25
28
36
20
14
21
8
6
38
34
1
9
11
33
26

Артикул

Название

Примечание

Количество

1a

K921356

PUMP, FUEL INJECTION

INJECTION PUMP, (CAV DPA3248F820) (990)

1шт.

1b

K942521

PUMP

INJECTION PUMP, (CAV DPA 3249F500) (995, 996)

1шт.

2

K612804

SCREW

SETSCREW, 5/8 UNF x 7/8 in., pump gear

3шт.

K14577

DOWEL

1/4 x 9/16 in., pump gear

1шт.

3

K914503

LARGE PLATE

TABWASHER, pump gear

1шт.

4

K68349

GASKET

1шт.

5

K608135

STUD

5/16 UNC x 1-1/4 in.

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

3шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in.

3шт.

K19471

WASHER

5/16 in.

3шт.

6

K942175

NOZZLE CAP

INJECTOR, Includes: Ref. 7

4шт.

K904261

NOZZLE CAP

HOLDER, (CAV BKBL 97S 5152)

1шт.

K942176

NOZZLE CAP

NOZZLE, (CAV BDLL 140S 6592)

1шт.

7

K901092

WASHER

COPPER WASHER

1шт.

8

K918915

PIPE

FUEL PIPE, injection pump to No. 1 cylinder

1шт.

9

K918916

PIPE

FUEL PIPE, injection pump to No. 2 cylinder

1шт.

10

K954828

PIPE,18.281" L

FUEL PIPE, injection pump to No. 3 cylinder, replaces K918917

1шт.

11

K954829

PIPE,20.75" L

FUEL PIPE, injection pump to No. 4 cylinder, replaces K918918

1шт.

K900845

NUT

UNION PIPE, injector pipes

8шт.

K947203

FERRULE

OLIVE, 0.218 in., injector pipes (to suit pipe dia.)

8шт.

K900846

FERRULE

OLIVE, 0.228 in., injector pipes (to suit pipe dia.)

8шт.

12

K900844

CLAMP

CLIP, injector pipes

2шт.

13

K12217

SCREW,0.185" x 5/8"

2BA x 5/8 in., injector pipes

2шт.

K11109

NUT

2 BA, injector pipes

2шт.

K19488

SPRING WASHER

SPRING WASHER, 3/16 in., injector pipes

2шт.

14

K906708

FILTER

FUEL FILTER, complete (Purolator APF62900), Includes: Ref. 15 - 39 and aluminum washer

1шт.

K962263

COVER

FILTER HEAD

1шт.

15

K960911

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order K960911MP

ELEMENT

2шт.

16

K960936

RING

SEALING WASHER, (supplied with element)

4шт.

40

K600360

BOLT

5/16 UNC x 4-3/4 in.

2шт.

K963409

RING

SEAL, 5/16 in.

2шт.

17

K960937

O-RING

'O' RING, 1/2 in. internal dia.

2шт.

38

K962264

COVER

BASE

2шт.

39

K962348

SCREW

VENT PLUG, 5/16 BSF

1шт.

K14734

WASHER

ALUMINUM WASHER, replaces K626856

1шт.

18

K600406

BOLT

3/8 UNC x 1-3/4 in., filter to cylinder head

2шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in., filter to cylinder head

2шт.

19

K627042

BUSHING

DISTANCE PIECE, filter to cylinder head

2шт.

20a

K944997

PUMP

FUEL FEED PUMP, (AC-Delco E/FP63154/B)

1шт.

Used on model 995, S/N 930274 and after

1шт.

Used on model 990, S/N 862037 and after

1шт.

Used on model 996, S/N 984571 and after

1шт.

20b

K909944

PUMP

FUEL FEED PUMP, (AC-Delco E/FP63154/A) (K944997 will be supplied in lieu), Includes: Ref. 21 - 22 and diaphragm

1шт.

K961675

FILTER SCREEN

FILTER GAUZE (replaces K961677)

1шт.

21

K66443

SPARE PART

FILTER BOWL

1шт.

K961674

SEAL

GASKET

1шт.

22

K961676

BAIL

STIRRUP AND SCREW

1шт.

K911917

DIAPHRAGM

(replaces K911017)

1шт.

23

K902136

GASKET

feed pump to cylinder block

1шт.

24

K602807

SCREW

SETSCREW, 5/16 UNC x 1-1/4 in., feed pump to cylinder block

2шт.

K14988

WASHER

COPPER-ASBESTOS WASHER, 5/16 in., feed pump to cylinder block

2шт.

K19471

WASHER

5/16 in., feed pump to cylinder block

2шт.

25

K911928

PUSH ROD,9.51mm OD x 35.99mm L

PUSH ROD, feed pump

1шт.

26

K918923

PIPE

FUEL PIPE, filter to injection pump

1шт.

27a

K944999

FUEL TUBE,0.25" OD x 14.531, 6.562" L

FUEL PIPE, feed pump to filter, use with K944997

1шт.

Used on model 995, S/N 930274 and after

1шт.

Used on model 990, S/N 862037 and after

1шт.

Used on model 996, S/N 984571 and after

1шт.

27b

K909952

PIPE

FUEL PIPE, feed pump to filter, use with K909944

1шт.

Used on model 995, up to S/N 930274

1шт.

Used on model 990, up to S/N 862037

1шт.

Used on model 996, up to S/N 984571

1шт.

28

K621603

CLIP

fuel pipe to manifold stud

1шт.

29a

K946086

PIPE

FUEL PIPE, tank to feed pump

1шт.

Used on model 995, S/N 930274 and after

1шт.

Used on model 990, S/N 862037 and after

1шт.

Used on model 996, S/N 984571 and after

1шт.

29b

K915673

PIPE

FUEL PIPE, tank to feed pump

1шт.

Used on model 995, up to S/N 930274

1шт.

Used on model 990, up to S/N 862037

1шт.

Used on model 996, up to S/N 984571

1шт.

30a

K945417

PIPE

FUEL PIPE, Serial Range: leak-off-filters

1шт.

Used on model 990, S/N E40526 and after

1шт.

Used on model 995, S/N E40255 and after

1шт.

Used on model 996, S/N E55333 and after

1шт.

30b

K907037

FITTING

FUEL PIPE, Serial Range: leak-off-filters

1шт.

Used on model 990, up to S/N E40526

1шт.

Used on model 995, up to S/N E40255

1шт.

Used on model 996, up to S/N E55333

1шт.

31

K904250

INJECTION PIPE

LEAK-OFF PIPE, injectors

1шт.

32a

K947873

PIPE

FUEL PIPE, Serial Range: leak-off-tank

1шт.

Used on model 990, S/N E40526 and after

1шт.

Used on model 995, S/N E40255 and after

1шт.

Used on model 996, S/N E55333 and after

1шт.

K618901

ADAPTER

ADAPTOR, 3/8 UNF, use with K947873

1шт.

Used on model 990, S/N E40526 and after

1шт.

Used on model 995, S/N E40255 and after

1шт.

Used on model 996, S/N E55333 and after

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

FIBRE WASHER, 3/8 in.

1шт.

Used on model 990, S/N E40526 and after

1шт.

Used on model 995, S/N E40255 and after

1шт.

Used on model 996, S/N E55333 and after

1шт.

32b

K915671

PIPE

FUEL PIPE, Serial Range: leak-off-tank

1шт.

Used on model 990, up to S/N E40526

1шт.

Used on model 995, up to S/N E40255

1шт.

Used on model 996, up to S/N E55333

1шт.

33

K907035

PIPE

LEAK-OFF PIPE, pump

1шт.

34

K621610

CLIP

fuel pipe to exhaust manifold stud

1шт.

35

K622061

VALVE

FUEL TAP (optional equipment)

1шт.

36

K626076

FITTING

UNION, 1/2 UNF, replaces K626024 (optional equipment)

1шт.

K626950

WASHER

FIBRE WASHER, 1/2 in. (optional equipment)

1шт.

37

K14573

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

'O' RING, 5/16 in. internal dia. (optional equipment)

1шт.

K951062

EXTENSION

fuel tap

1шт.

Выбрано товаров: 103
