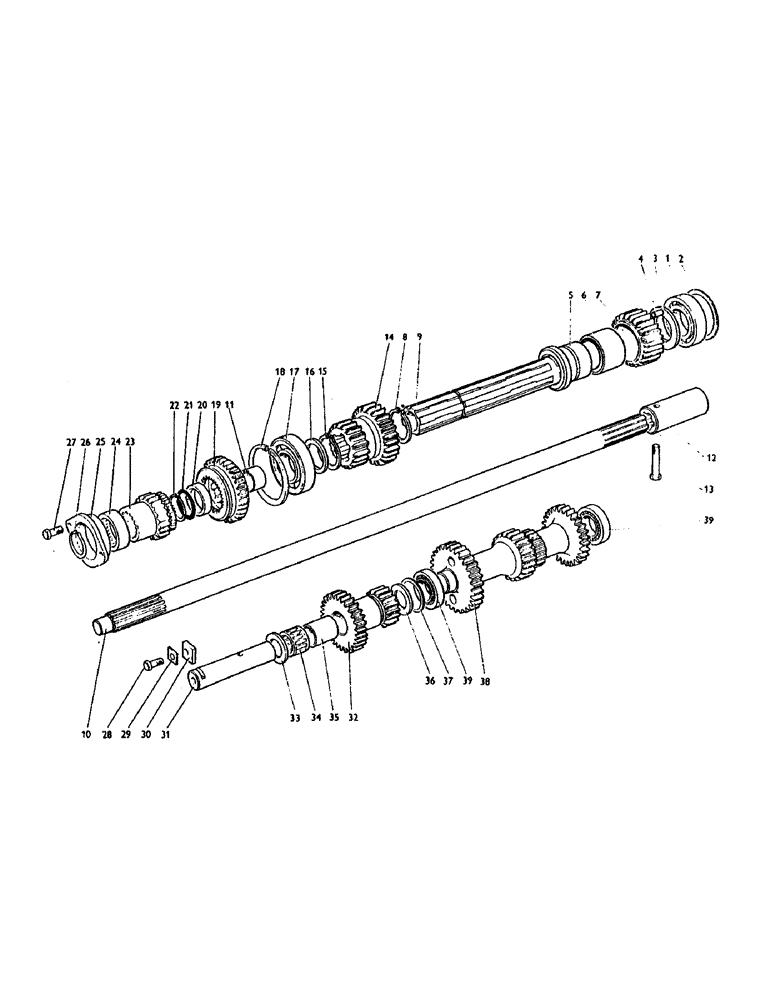

Запчасти Case IH 995 (C04) - GEARBOX, DRIVESHAFT AND LAYSHAFTS, 885, 990, 995 AND 996 TRACTORS Gearbox

1

K19047

BALL BEARING

1шт.

2a

K908372

SHIM,.003" Thk

1шт.

2b

K908373

SHIM,.005" Thk

1шт.

2c

K908374

SHIM,.020" Thk

1шт.

3

K908940

WASHER

THRUST WASHER

1шт.

4

K34594

PIN

1шт.

5

K85241

CARRIER

AND BUSH, reverse gear

1шт.

6

K24773

BUSHING

1шт.

7

K963536

GEAR

REVERSE GEAR, (25 teeth), with bush

1шт.

8

K13809

RING, SNAP

CIRCLIP, 45mm external

1шт.

9a

K929626

DRIVE SHAFT

DRIVESHAFT, 6-speed Livedrive

1шт.

9b

K929627

DRIVE SHAFT

DRIVESHAFT, 6-speed Non-Livedrive

1шт.

9c

K940073

DRIVE SHAFT

DRIVESHAFT, 12-speed Livedrive

1шт.

10a

K943386

SHAFT

LIVE PTO CARDAN SHAFT (996)

1шт.

10b

K89180

SPARE PART

LIVE PTO CARDAN SHAFT, 6-speed (990, 995)

1шт.

10c

K908363

SHAFT

LIVE PTO CARDAN SHAFT, 12-speed (990, 995)

1шт.

10d

K921635

SHAFT

LIVE PTO CARDAN SHAFT (885)

1шт.

11

K24774

BUSHING

BUSH, driveshaft

1шт.

12a

K89181

COUPLING, BREAK AWAY

COUPLING SLEEVE, Livedrive

1шт.

13a

K600009

BOLT

1/4 UNC x 1-7/8 in., coupling to cardan shaft

1шт.

K607440

NUT

CLEVELOC NUT, 1/4 UNC, coupling to cardan shaft

1шт.

12b

NLS

NO LONGER SERVICED

COUPLING SLEEVE, Non-Livedrive

1шт.

13b

K600210

BOLT

5/16 UNC x 2-1/8 in., Serial Range: coupling-driveshaft

1шт.

231-1445

NUT,5/16"-18, GB

CLEVELOC NUT, 5/16 UNC, coupling to driveshaft

1шт.

14

K942664

GEAR

RANGE PINION, (18/26 teeth)

1шт.

15

K12922

RING, SNAP

CIRCLIP, 1-3/4 in. external

1шт.

16

K940671

WASHER

SPACER

1шт.

17

K19081

BALL BEARING

1шт.

18

K16296

RING

CIRCLIP, 3-3/4 in. internal

1шт.

19

K928436

GEAR

DRIVEN GEAR, (32 teeth) (12-speed)

1шт.

20

K15176

OIL SEAL

OIL SEAL, 1-1/8 x 1-7/8 x 3/8 in. (12-speed)

1шт.

21

K623555

O-RING,1.396" OD x 0.255" Width

'O' RING, 1-7/16 in. internal dia., replaces K623546 (12-speed)

1шт.

22

K621452

RING, SNAP

CIRCLIP, 1-7/16 in. external (12-speed)

1шт.

Ref #14 - For 12 speed, use K205535 Gear & K205550 Shaft (Hollow). For 6 speed, use K205535 Gear & K205712 Shaft (Solid).

1шт.

23

K928666

GEAR

DRIVING GEAR (21 teeth) (12-speed)

1шт.

Ref #23 see SB 67-83.

1шт.

24

K620124

BEARING

NEEDLE ROLLER BEARING (12-speed)

1шт.

25

K928437

BEARING HOUSING

(12-speed)

1шт.

26

K12922

RING, SNAP

CIRCLIP, 1-3/4 in. external (12-speed)

1шт.

27

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 7/8 in. (12-speed)

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in. (12-speed)

2шт.

28

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 7/8 in. (12-speed)

1шт.

29

K626423

WASHER

TABWASHER (12-speed)

1шт.

30

K928456

PLATE

LOCKING PLATE (12-speed)

1шт.

31

K928439

SHAFT

SPINDLE, layshaft (12-speed)

1шт.

32

K928435

SHAFT

LAYSHAFT, with integral gears (12-speed)

1шт.

33

K626714

WASHER

THRUST WASHER (12-speed)

1шт.

34

K620273

BEARING, NEEDLE,28.57mm ID x 38.1mm OD x 25.02mm W

NEEDLE ROLLER BEARING (12-speed)

2шт.

35

K928440

BUSHING

DISTANCE PIECE (12-speed)

1шт.

36

K626714

WASHER

THRUST WASHER (12-speed)

1шт.

37a

K914702

SHIM,50.8mm ID x 67.06mm OD x 0.05mm Thk

1шт.

37b

K914703

SHIM,.003" Thk

1шт.

37c

K914704

SHIM,50.8mm ID x 67.06mm OD x 0.18mm Thk

1шт.

37d

K914705

SHIM,50.8mm ID x 67.06mm OD x 0.25mm Thk

1шт.

38

K942670

SHAFT

LAYSHAFT, with integral gears

1шт.

39

K620076

BEARING, ROLLER

ROLLER BEARING

2шт.

SB A57-82 10/12/95

1шт.

Kits for Drive Shaft Sealing, see SB A41-82.

1шт.
