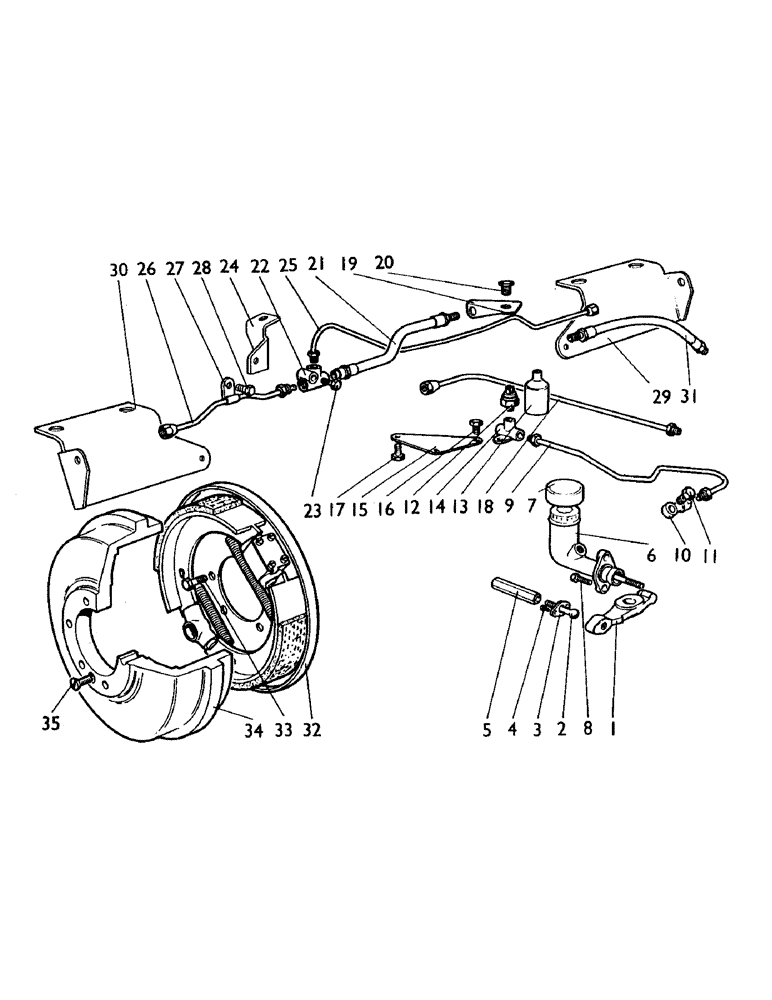

Запчасти Case IH 995 (G14) - BRAKES, FRONT WHEEL BRAKES, STANDARD FRONT AXLE, 990 AND 995 TRACTORS, OPTIONAL EQUIPMENT (5.1) - BRAKES

1

K972488

BEAM

COMPENSATOR BEAM

1шт.

2

K971935

ROD

PUSH ROD

1шт.

3

K971936

SHIM

Retaining plate

1шт.

4

K613982

SCREW

SETSCREW, No. 10 UNF x 3/8 in

2шт.

K19488

SPRING WASHER

SPRING WASHER, 3/16 in

2шт.

5

K971937

SLEEVE

ADJUSTING SLEEVE

1шт.

K617051

NUT

LOCKNUT, 5/16 UNF

2шт.

6

K943521

CYLINDER

MASTER CYLINDER, (Girling 64067685 supersedes 64067641)

1шт.

7

K972640

CAP

RUBBER CAP

1шт.

8

K602806

BOLT

SETSCREW, 5/16 UNC x 1-1/8 in, cylinder to frame platform

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in, cylinder to frame platform

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC, cylinder to frame platform

2шт.

9

K972376

PIPE

master cylinder to stop-lamp switch

1шт.

10

K620345

CONNECTOR, ELEC

BANJO, 3/8 UNF

1шт.

11

K620344

BANJO BOLT

BANJO BOLT, 3/8 UNF

1шт.

K14674

WASHER

COPPER WASHER, 7/16 in

1шт.

K626447

WASHER

COPPER WASHER, 3/8 in

1шт.

12

K920206

LIGHT SWITCH

SWITCH, stop lamps (Lucas 54337405)

1шт.

13

K972887

COVER

switch

1шт.

14

K972200

3 WAY CONNECTION

THREE-WAY CONNECTOR

1шт.

15

K910773

SUPPORT

PLATE

1шт.

16

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

SETSCREW, 5/16 UNC x 5/8 in

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

1шт.

17

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in

2шт.

K19471

WASHER

5/16 in

4шт.

18

K972378

PIPE

switch to flexible pipe

1шт.

19

K910775

BRACKET

SUPPORT BRACKET, pipe

1шт.

20

K972700

SCREW

SETSCREW, 5/8 UNC, special

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

LOCKNUT, 5/8 UNC

1шт.

K19485

WASHER

SPRING WASHER, 5/8 in

1шт.

21

K972385

HOSE

FLEXIBLE PIPE, 14-1/8 in

1шт.

K617052

NUT

LOCKNUT, 3/8 UNF

1шт.

K626479

WASHER

SHAKEPROOF WASHER, 3/8 in

1шт.

K626447

WASHER

COPPER WASHER, 3/8 in

1шт.

22

K972194

FITTING

TEE-PIECE

1шт.

23

K600004

BOLT

1/4 UNC x 1-1/4 in

1шт.

K19480

SPRING WASHER

SPRING WASHER, 1/4 in

1шт.

24

K972843

SUPPORT

BRACKET, tee-piece

1шт.

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

K19482

SPRING WASHER

SPRING WASHER, 3/8 in

1шт.

280136

NUT,3/8"-16, G8

1шт.

25

K972383

PIPE

right-hand

1шт.

26

K972711

PIPE

left-hand

1шт.

27

K19932

RING

CLIP, Serial Range: pipes-axle

2шт.

28

K11198

SCREW, 3/16 Whitworth x 1/2 in

2шт.

K19488

SPRING WASHER

SPRING WASHER, 3/16 in

2шт.

K19415

NUT

3/16 Whitworth

2шт.

K19496

WASHER

3/16 in, right-hand bracket only

1шт.

29

K943540

SUPPORT

BRACKET, right-hand, replaces K972442

1шт.

30

K972441

PIPE

SUPPORT BRACKET, left-hand

1шт.

31

K972385

HOSE

FLEXIBLE PIPE, 14-1/8 in

2шт.

K617052

NUT

LOCKNUT, 3/8 UNF

2шт.

K626479

WASHER

SHAKEPROOF WASHER, 3/8 in

2шт.

K626447

WASHER

COPPER WASHER, 3/8 in

2шт.

32

K971793

BRAKE

ASSEMBLY, left-hand, (Girling 64021379)

1шт.

K971794

BRAKE ASSEMBLY, right-hand, (Girling 64021381)

1шт.

33

K600503

BOLT

3/8 UNC x 1-1/16 in

8шт.

232-1416

LOCK NUT,3/8"-16, GC

NYLOC NUT, 3/8 UNC

8шт.

34

K971802

BRAKE

DRUM, 10 in dia.

2шт.

35

K604210

SCREW

1/2 UNC x 1-3/8 in, Serial Range: drum-hub

4шт.

The Frt Wheel Brakes referred to in the heading on page G15 is Not Applicable. 10/17/95

1шт.
