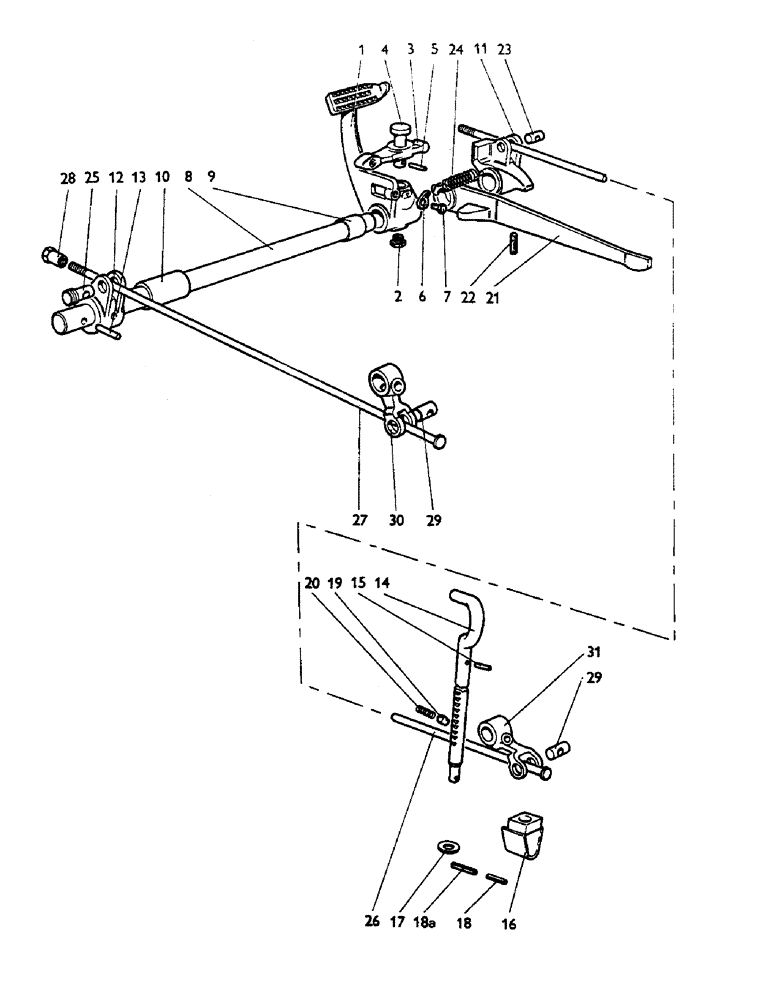

Запчасти Case IH 995 (G08) - BRAKES, BRAKE LINKAGE - FOUR-WHEEL BRAKES, 990 AND 995 TRACTORS, OPTIONAL EQUIPMENT (5.1) - BRAKES

1

K972487

BRAKE

PEDAL

1шт.

2

K971938

PLUG

1/4 BSP

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

3

K972488

BEAM

COMPENSATOR BEAM

1шт.

4

K971934

PIN

1шт.

5

K19562

GROOVED PIN,3/16" x 1 1/4", Type A

Pin, Grooved, , Mills 3/16" x 1 1/4", Type A

1шт.

6

K971939

SHIM

Spring anchor

1шт.

7

K602803

BOLT

SETSCREW, 5/16 UNC x 3/4 in

1шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in

1шт.

8

K971930

SHAFT

CROSS SHAFT

1шт.

9

K971931

TUBE

DISTANCE TUBE, right-hand

1шт.

10

K904355

TUBE

DISTANCE TUBE, left-hand

1шт.

11

K971941

LEVER, right-hand

1шт.

12

K903139

LEVER

left-hand

1шт.

13

K623732

PIN

MILLS PIN, 3/8 x 2 in

2шт.

14

K929791

LEVER

HAND LEVER

1шт.

15

K623892

PIN

SPRING PIN, 5/16 x 1-1/2 in

1шт.

16

K949260

FORK

replaces K945873

1шт.

17

K626736

WASHER

5/8 in, special

1шт.

18a

K623892

PIN

SPRING PIN, 5/16 x 1-1/2 in (use with 945873)

1шт.

18b

K623895

PIN

SPRING PIN, 5/16 x 2 in (use with 919897)

1шт.

19

K909588

PAWL

1шт.

20

K14651

SPRING

1шт.

21

K929789

LEVER

OPERATING LEVER, hand brake

1шт.

22

K606170

SCREW

GRUBSCREW, 7/16 UNC

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

LOCKNUT, 7/16 UNC

1шт.

23

K919706

PIN

cross shaft lever

1шт.

24

K624927

SPRING

RETURN SPRING

2шт.

25

K14744

PIN

cross shaft lever

1шт.

26

K929655

BRAKE

ROD, right-hand

1шт.

27

K929563

ROD

BRAKE ROD, left-hand

1шт.

28

K607504

NUT

ADJUSTING NUT, 3/8 UNC

2шт.

280136

NUT,3/8"-16, G8

2шт.

29

K14744

PIN

cam lever

2шт.

30

K929624

LEVER

CAM LEVER, left-hand

1шт.

31

K928589

LEVER

CAM LEVER, right-hand

1шт.

The Four-Wheel Brakes referred to in the Heading on Page G9 in Not Applicable. 10/17/95

1шт.
