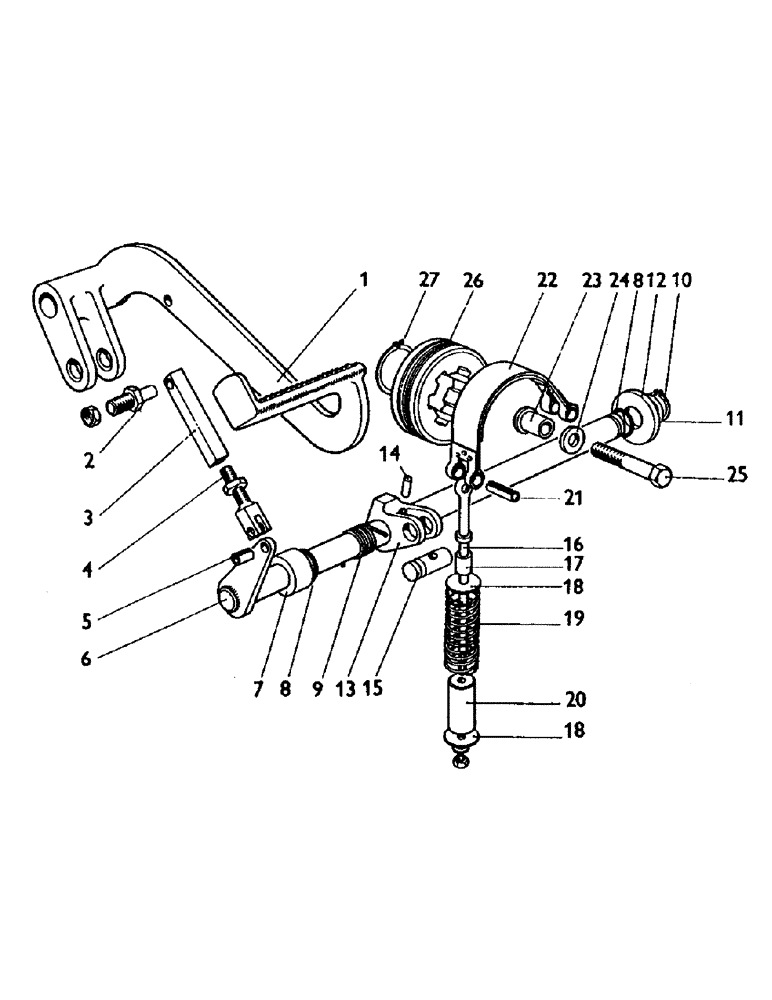

Запчасти Case IH 995 (B08) - CLUTCH, CLUTCH STOP, 990 AND 995 NON-SYNCHROMESH LIVEDRIVE TRACTORS (03.1) - CLUTCH

1

K929442

CLUTCH

PEDAL

1шт.

2

K929443

PIN

PIVOT PIN, 3/8 UNC

1шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

LOCKNUT, 3/8 UNC

1шт.

K19471

WASHER

5/16 in.

1шт.

K19527

PIN

SPLIT PIN, 3/32 x 1/2 in.

1шт.

3

K929447

PUSH ROD

1шт.

K607081

LOCK NUT

LOCKNUT, 5/16 UNC

1шт.

4

K929448

FORK

END, 5/16 UNC

1шт.

5

K623743

SPRING

PIN, 1/4 x 3/4 in.

1шт.

6

K929449

LEVER

CROSS SHAFT AND LEVER

1шт.

7

K627107

BUSHING

DISTANCE PIECE, cross shaft

1шт.

8

K24556

O-RING,0.734" ID x 1.012" OD x 0.139"

'O' RING, 3/4 in. internal dia.

2шт.

9

K929649

SPRING

RETURN SPRING, cross shaft

1шт.

10

K11290

RING, SNAP

CIRCLIP, 3/4 in. external

1шт.

11

K626210

SHIM,.030" Thk

1шт.

12

K626912

WASHER

3/4 in.

1шт.

13

K929452

CASTING

FORK, cross shaft

1шт.

14

K11274

MILLS PIN, 1/4 x 1-1/4 in.

1шт.

15

K929457

PIN

fork

1шт.

16

K929444

ROD

PULL ROD

1шт.

17

K627002

BUSHING

SPACER, pull rod

1шт.

18

K626885

WASHER

special

2шт.

19

K625195

SPRING

1шт.

20

K627005

BUSHING

DISTANCE PIECE, spring

1шт.

K19496

WASHER

3/16 in.

1шт.

K617120

NUT

No. 10 UNF

1шт.

21

K623742

SPRING

PIN

1шт.

22

K929453

BAND

END LINING

1шт.

23

K929456

BUSHING

BUSH, band pivot

1шт.

24

K626911

WASHER

5/16 in., special, band pivot

1шт.

25

K600211

BOLT

5/16 UNC x 2-1/4 in., band pivot

1шт.

26a

K917780

CASTING

DRUM, clutch driveshaft (6-speed)

1шт.

26b

K940324

CLUTCH

DRUM, clutch driveshaft (12-speed)

1шт.

27

K12922

RING, SNAP

CIRCLIP, 1-3/4 in. external

2шт.

K606554

SCREW

SETSCREW, 5/16 UNC x 1 in, support snout to main frame

2шт.

K19481

SPRING WASHER

SPRING WASHER, 5/16 in., support snout to main frame

2шт.
