Запчасти Case IH 990B (60B) - CLUTCH, HAND CONTROLS, PART OF U585, LIVEDRIVE, PART OF U586, NON-LIVEDRIVE, FROM TRACTOR 476325 (03.1) - CLUTCH

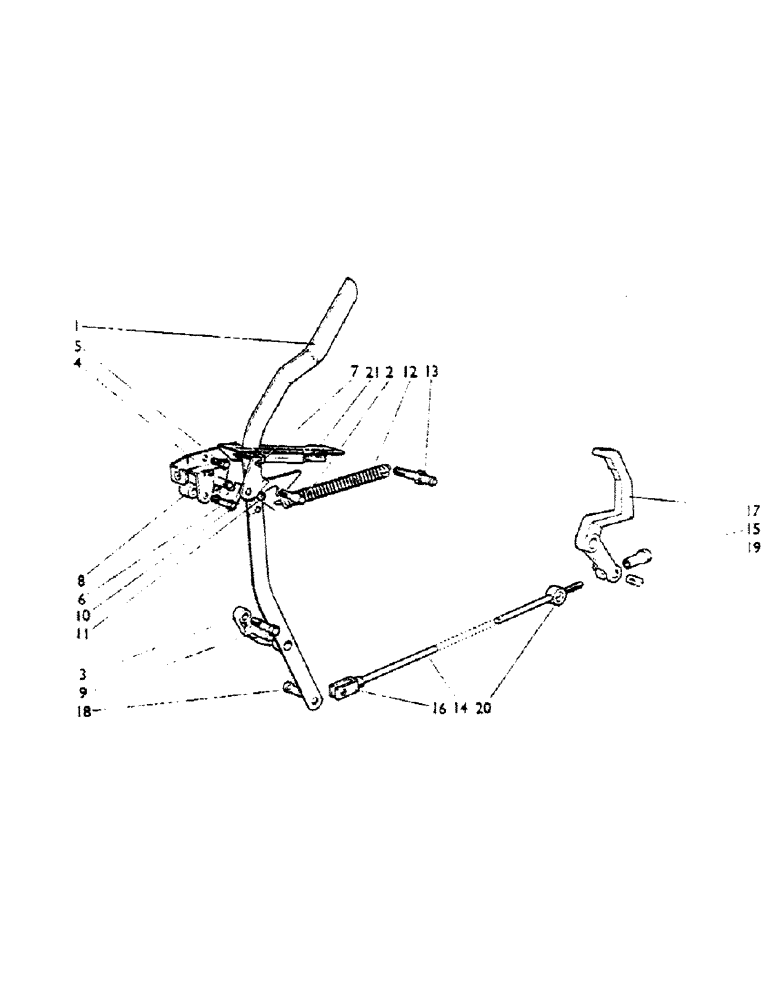

Схема запчастей Case IH 990B - (60B) - CLUTCH, HAND CONTROLS, PART OF U585, LIVEDRIVE, PART OF U586, NON-LIVEDRIVE, FROM TRACTOR 476325 (03.1) - CLUTCH
4
6
7
18
3
19
16
15
20
21
13
2
14
5
11
9
1
12
10
17
8

Артикул

Название

Примечание

Количество

1

K912848

LEVER

Resetting Lever

1шт.

2

K913299

PIN

Locking Pin

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

1шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

1шт.

3

K914090

BRACKET

--Resetting Lever

1шт.

K19476

WASHER

3/4 in.

1шт.

K19532

PIN

Split Pin, 1/8 x 1 in.

1шт.

4

K912849

BRACKET

Support Bracket--Resetting Lever

1шт.

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Setscrew, 5/16 UNC x 5/8 in.

1шт.

5

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

Setscrew, 5/16 UNC x 7/8 in.

1шт.

6

K600205

BOLT

5/16 UNC x 1 1/2 in.

1шт.

7

K600204

BOLT

5/16 UNC x 1 3/8 in.

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

4шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

4шт.

8

K912852

BUSHING

Distance Piece

1шт.

9

K600806

BOLT

1/2 UNC x 2 in.

2шт.

10

K912853

LATCH

Trigger For Clutch Hand

1шт.

K19472

WASHER

3/8 in. Controls (to Tractor 476324) see Fig. 27

1шт.

K621587

RING, SNAP

E Clip, 3/8 in. ext.

1шт.

11

K31411

SPRING

Torsion Spring--Trigger

1шт.

12

K41370

SPRING

Release Spring--Clutch

1шт.

13

K912854

SPRING

Anchor

1шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

1шт.

87016560

JAM NUT,Jam, 3/8"-16, G5

Locknut, 3/8 UNC

1шт.

14

K909901

ROD

Clutch Rod--Resetting Lever to Clutch Lever

1шт.

K19403

NUT

3/8 BSF

2шт.

15

K14745

NUT

Adjusting Nut

1шт.

16

K14233

Fork End--Resetting Lever

1шт.

17

K89363

LEVER

Clutch Lever Livedrive

1шт.

17

K900716

LEVER

Clutch Lever Non-Livedrive

1шт.

18

K14227

PIN

1шт.

K19527

PIN

Split Pin, 3/32 x 1/2 in.

1шт.

19

K14744

PIN

1шт.

20

K14715

BUSHING

Distance Piece

1шт.

21

K913860

Guide Bracket

1шт.

Выбрано товаров: 35
