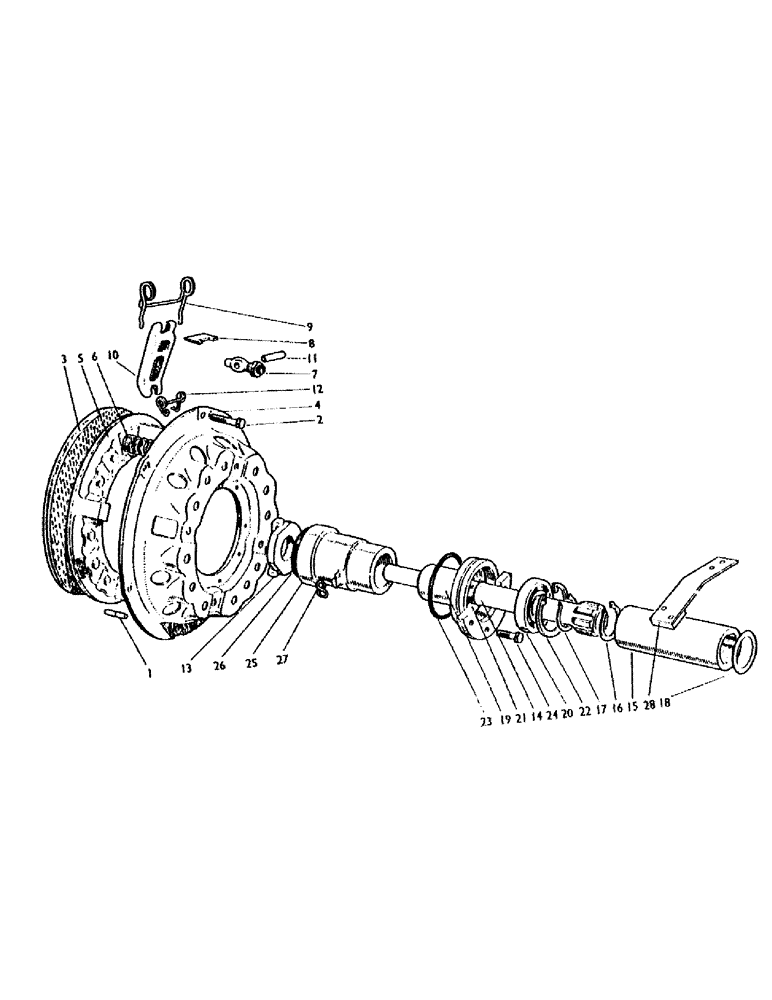

Запчасти Case IH 990B (24) - SINGLE CLUTCH AND DRIVE, 990/B (03.1) - CLUTCH

1

K35840

PIN

Dowel--Clutch, Serial Range: Clutch-flywheel

2шт.

2

K602903

SCREW

Bolt, 3/8 UNC x 7/8 in., Serial Range: Clutch-flywheel

8шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in., Serial Range: Clutch-flywheel

8шт.

3

K915694

NO LONGER SERVICED

Driven Plate 11 in. (with facings and rivets), Supersedes 906854

1шт.

K961832

FACING

s (2) and Rivets (26) (Replaces 961019)

1шт.

K86188

CLUTCH ASSEMBLY

Cover Assembly

1шт.

4

K86189

Cover--Clutch 86188

1шт.

5

K86190

Pressure Plate 86188

1шт.

6

K961049

CLUTCH

Spring--(Yellow/Lt. Green) 86188

12шт.

7

K86195

NUT

Eyebolt and Nut 86188

4шт.

8

K14003

STOP

Strut--Lever Release 86188

4шт.

9

K86196

VALVE SPRING

Spring--Anti-rattle 86188

4шт.

10

K68729

LEVER

--Clutch Release 86188

4шт.

11

K14005

AXLE PIN

Pin--Release Lever 86188

4шт.

12

K14079

SPRING

Retaining Spring 86188

4шт.

13

K86197

CLUTCH

Plate--Release Lever 86188

1шт.

14

K901755

CLUTCH

Driveshaft

1шт.

15

K903395

COUPLING, BREAK AWAY

Muff Coupling

1шт.

16

K12922

RING, SNAP

Circlip, 1 3/4 in. ext.

1шт.

17

K14337

CIRCLIP

1 3/8 in. ext.

1шт.

19

K900574

SUPPORT

Snout

1шт.

20

K19021

BALL

Bearing

1шт.

21

K34610

SHIM

Shield--Clutch Shaft Bearing

1шт.

22

K13053

RING, SNAP

Circlip, 72 mm. Bore

1шт.

23

K24865

O-RING

O Ring

1шт.

24

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

Setscrew, 5/16 UNC x 1 in.

3шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

3шт.

K24866

KEY

3/16 in. x 5/32 in. x 1 1/4 in.

1шт.

25

K900583

BEARING

Thrust Bearing

1шт.

26

K14083

RING

Carbon Block

1шт.

27

K89336

SPRING

--Clutch Fork

2шт.

28

K903870

SPRING

Clutch Stop

1шт.

K624302

SCREW

2 BA x 7/8 in. (Replaces 624303)

2шт.

K623002

LOCK NUT

Nyloc Nut, 2 BA

2шт.
