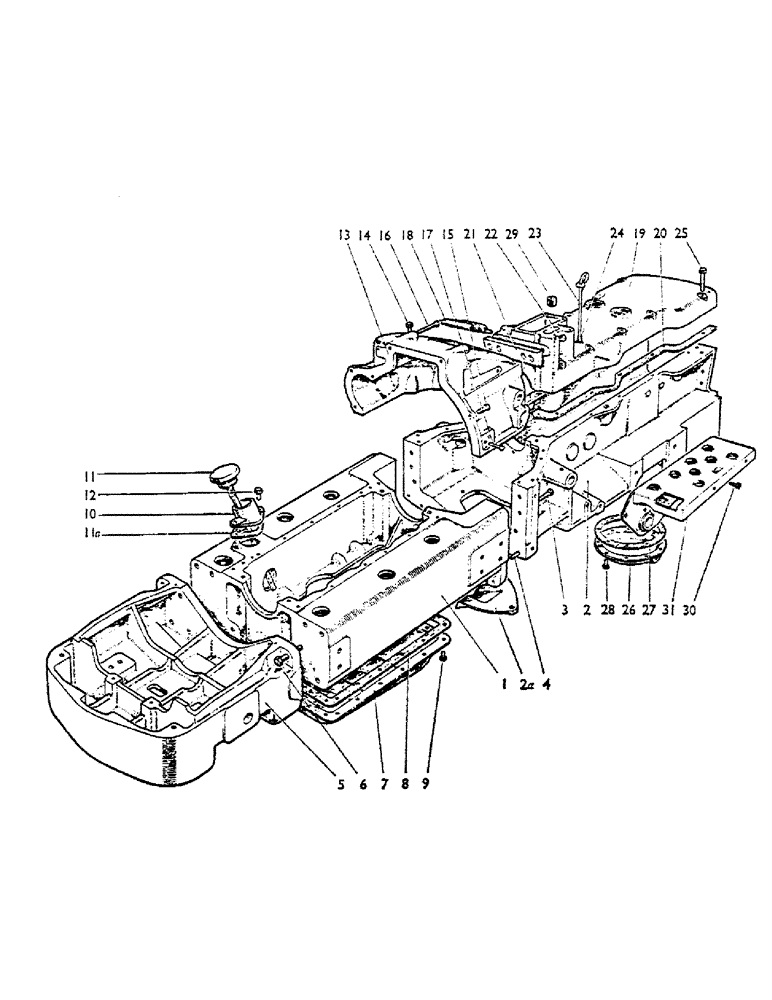

Запчасти Case IH 990B (89) - MAIN FRAME AND COVERS (12) - CHASSIS

1

K903483

FRAME

Main Frame--Front

1шт.

2

K906676

NO LONGER SERVICED

Main Frame--Rear

1шт.

K627907

X

Red Cap

10шт.

2a

K908838

NO LONGER SERVICED

Clutch Pit Cover

1шт.

K19470

WASHER

1/4 in.

2шт.

K602733

SCREW

Setscrew (Plated)

2шт.

3

K600604

SCREW

Bolt, 7/16 UNC x 1 3/4 in. Main frame, Serial Range: front-rear

4шт.

K600603

BOLT

7/16 UNC x 1 5/8 in. Main frame, Serial Range: front-rear

6шт.

K19483

SPRING WASHER

Spring Washer, 7/16 in. Main frame, Serial Range: front-rear

10шт.

280717

NUT,7/16"-14, G5

Main frame front to rear 7/16"-14, G5

4шт.

4

K30362

PIN

Dowel, 7/16 in.

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF--Clutch Cross Shaft 1/4"-28 NPT x .54" lg

2шт.

K906460

Front Extension

1шт.

5

K909034

SPARE PART

Front Extension From Tractor 456233

1шт.

6

K600604

SCREW

Bolt, 7/16 UNC x 1 3/4 in. Extension to front main frame

4шт.

K608311

STUD

7/16 UNC x 2 5/16 in. Extension to front main frame

6шт.

280717

NUT,7/16"-14, G5

Extension to front main frame 7/16"-14, G5

6шт.

K19483

SPRING WASHER

Spring Washer, 7/16 in. Extension to front main frame

10шт.

K15597

BUSHING

Bush--Trunnion Pin

4шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, --Trunnion Bearings 1/4"-28 NPT x .54" lg

2шт.

7

K904077

COVER

Sump Cover--(Steel Pressing)

1шт.

8

K906429

GASKET

--Sump Cover

1шт.

9

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Setscrew, 5/16 UNC x 5/8 in.

18шт.

K19481

SPRING WASHER

Washer, 5/16 in.

18шт.

K24850

WASHER

Drain Plug

1шт.

K626769

WASHER

--"Selon"

1шт.

10

K902042

FILLER

Oil Filler

1шт.

11

K907595

CAP

Oil Filler Cap and Dipstick Assembly

1шт.

K907596

DIPSTICK

907595

1шт.

K624150

RIVET

--Special 907595

2шт.

K15279

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

O Ring--Filler Cap

1шт.

11a

K902043

SEAL

--Oil, Serial Range: Filler-Frame

1шт.

12

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Setscrew, 3/8 UNC x 1 1/8 in.

2шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

2шт.

13

K904964

NO LONGER SERVICED

Clutch Housing

1шт.

14

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Setscrew, 3/8 UNC x 1 1/8 in. Housing to rear frame

4шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in. Housing to rear frame

4шт.

15

K600409

BOLT

3/8 UNC x 2 1/8 in Housing to support plate

1шт.

16

K600425

BOLT

3/8 UNC x 5 1/4 in Housing to support plate, Replaces 600454

2шт.

280136

NUT,3/8"-16, G8

Housing to support plate 3/8"-16, G8

1шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in. Housing to support plate

3шт.

17

K906963

SCREW

Peg--Timing Location

1шт.

18

K904246

COVER

--Clutch Housing

1шт.

K602701

BOLT

Setscrew, 1/4 UNC x 1/2 in.

2шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in.

2шт.

19

K906677

Gearbox Cover 6-Speed Gearbox

1шт.

K908432

X

Gearbox Cover 12-Speed Gearbox

1шт.

20

K906678

GASKET

--Gearbox Cover

2шт.

21

K904079

WEDGE

--Clutch Housing

1шт.

22

K600616

BOLT

7/16 UNC x 3 1/2 in. Gearbox cover to clutch housing

2шт.

22

K600612

BOLT

7/16 UNC x 2 3/4 in. Gearbox cover to clutch housing

1шт.

22

K600610

BOLT

7/16 UNC x 2 1/2 in. Gearbox cover to clutch housing

1шт.

K19483

SPRING WASHER

Spring Washer, 7/16 in. Gearbox cover to clutch housing

4шт.

23

K904238

DIPSTICK

1шт.

24

K83884

SLEEVE

--Dipstick

1шт.

25

K600615

BOLT

7/16 UNC x 3 3/4 in. Gearbox cover to rear frame

9шт.

K600665

BOLT

7/16 UNC x 6 3/4 in. Gearbox cover to rear frame

1шт.

K600459

BOLT

--Special Gearbox cover to rear frame

2шт.

K19483

SPRING WASHER

Spring Washer, 7/16 in. Gearbox cover to rear frame

10шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in. Gearboc cover to rear frame

2шт.

K600620

BOLT

7/16 UNC x 4 1/2 in. Axle case to gearbox cover, Replaces 600619

4шт.

K600669

BOLT

7/16 UNC x 7 3/4 in. Axle case to gearboc cover

1шт.

K626522

SEALING WASHER

Sealing Washer, 7/16 in. Axle case to gearbox cover

1шт.

K19483

SPRING WASHER

Spring Washer, 7/16 in. Axle case to gearbox cover

4шт.

26

K904222

COVER

Sump Cover--Rear Frame

1шт.

27

K906764

GASKET

1шт.

K19581

PLUG

Drain Plug, 1/4 BSP

1шт.

K626765

GASKET

Washer, 1/4 BSP

1шт.

28

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Setscrew, 5/16 UNC x 5/8 in.

8шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

8шт.

29

K12362

PLUG

Taper Plug, 1 in. BSP

1шт.

K912891

NO LONGER SERVICED

Stirrup--L.H. Platform

1шт.

K603004

SCREW

Setscrew, 7/16 UNC x 1 1/8 in.

1шт.

K19483

SPRING WASHER

Spring Washer, 7/16 in.

1шт.

K602803

BOLT

Setscrew, 5/16 UNC x 3/4 in.

2шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

2шт.

30

K603003

SCREW

Setscrew, 7/16 UNC x 1 in., Serial Range: Platforms-frame

9шт.

K19483

SPRING WASHER

Spring Washer, 7/16 in., Serial Range: Platforms-frame

9шт.

31

K904188

SPARE PART

Frame Platform Assembly--L.H. To Tractor 476324

1шт.

31

K904187

SPARE PART

Frame Platform--R.H. To Tractor 476324

1шт.

31

K913906

FRAME

Platform--L.H. From Tractor 476325

1шт.

31

K913903

FRAME

Platform--R.H. From Tractor 476325

1шт.

K907050

Ballast Weight--L.H. U374 (906984)

1шт.

To Tractor 456232

1шт.

K907052

Ballast Weight--R.H. U374 (906984)

1шт.

To Tractor 456232

1шт.

K907051

Ballast Weight--Centre U374 (906984)

1шт.

To Tractor 456232

1шт.

K603108

SCREW

Setscrew, 1/2 UNC x 1 1/2 in. U374 (906984)

3шт.

To Tractor 456232

1шт.

K14431

SPARE PART

Washer--Special U374 (906984)

3шт.

To Tractor 456232

1шт.

K19484

LOCK WASHER

Spring Washer, 1/2 in. U374 (906984)

3шт.

To Tractor 456232

1шт.

K910007

X

Front Ballast Weight U505 (910489)

4шт.

K910008

Support, R.H. U505 (910489)

1шт.

K910009

Support, L.H. U505 (910489)

1шт.

K910516

Locating Pin U505 (910489)

2шт.

K602902

SCREW

Setscrew, 3/8 UNC x 3/4 in. U505 (910489)

2шт.

K88751

WASHER

Special Washer, 13/32 in. (Replaces, U505 (910489) 626693)

2шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in. U505 (910489)

2шт.

K603308

BOLT (SPREADER)

Setscrew, 5/8 UNC x 1 3/4 in. U505 (910489)

4шт.

K19485

WASHER

Spring Washer, 5/8 in. U505 (910489)

4шт.

K910476

Packing Piece U505 (910489)

2шт.

K601358

BOLT

Zinc Plated, 5/8 UNC x 2 1/4, U505 (910489) in.

2шт.

K19485

WASHER

Spring Washer, 5/8 in. U505 (910489)

3шт.

K910011

Special Nut, 5/8 UNC U505 (910489)

3шт.

K601312

Special Bolt, Zinc Plated, 5/8 UNC, U505 (910489) x 12 in.

1шт.
