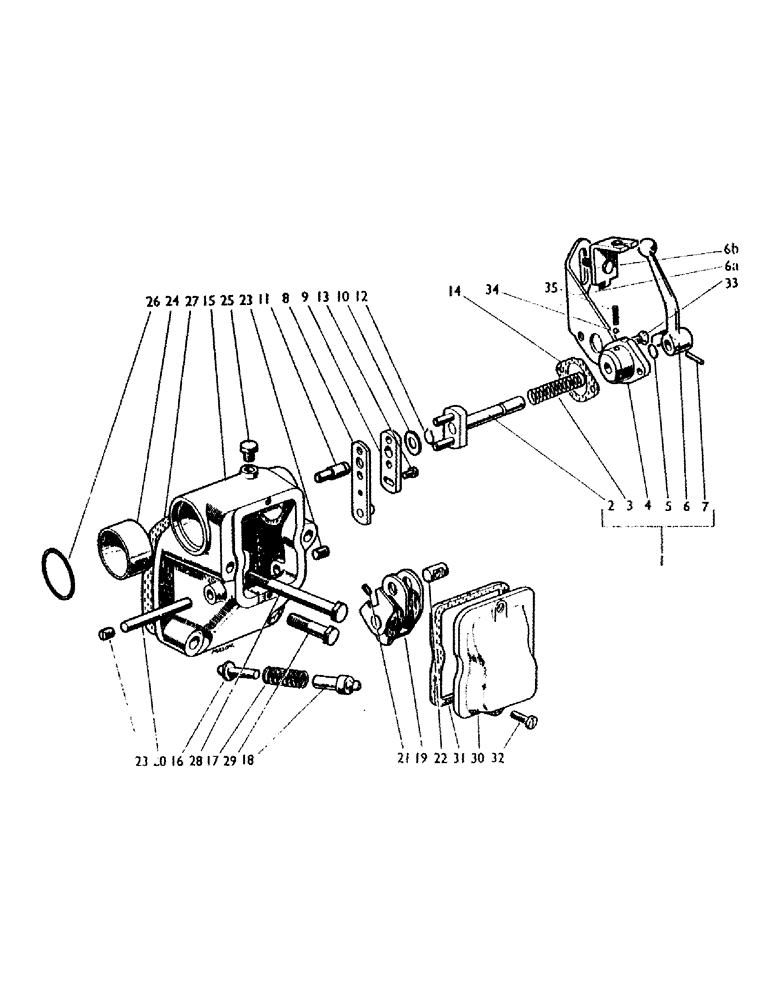

Запчасти Case IH 990B (76) - RAMSHAFT BRACKET AND HOLD MECHANISM (07) - HYDRAULIC SYSTEM

1

K903484

Override Control Assembly

1шт.

To Tractor 453123

1шт.

1

K909876

SELECTOR

Override Control Assembly

1шт.

From Tractor 453124

1шт.

2

K903400

LARGE PIN

Dog Clutch, 903484, 909876

1шт.

3

K625123

SPRING

903484, 909876

1шт.

4

K903480

Housing, 903484

1шт.

To Tractor 453123

1шт.

4

K909562

Housing, 909876

1шт.

From Tractor 453124

1шт.

5

K900380

O-RING,0.487" ID x 0.693" OD x 0.103"

903484, 909876

1шт.

6

K903479

WINDOW STAY

Override Lever, 903484

1шт.

To Tractor 453123

1шт.

6

K909560

SELECTOR

Override Lever, 909876

1шт.

From Tractor 453124

1шт.

6a

K909561

SUPPORT ASSY.

Bracket, 909876

1шт.

From Tractor 453124

1шт.

6b

K909987

CLIP

Anchor Bracket, 909876

1шт.

From Tractor 453124

1шт.

7

K623740

SPLIT PIN/SAFETY PIN

Spring Dowel, 3/16 in., 903484, 909876

1шт.

K909992

Spring Clip, 909876

1шт.

From Tractor 453124

1шт.

231-1435

LOCK NUT,5/16"-18, GB

NUT - Nyloc, 5/16 UNC, 909876

1шт.

From Tractor 453124

1шт.

K19471

WASHER

5/16 in., 909876

1шт.

From Tractor 453124

1шт.

8

K906418

HAMMER

Striker

1шт.

9

K903464

PLATE

Locating Plate

1шт.

10

K903406

WASHER

Retaining Washer

1шт.

11

K903407

PIN

Extension (Part of Ramshaft Assembly 906477)

1шт.

12

K621589

RING, SNAP

Circlip, 1/2 in. dia. ext.

1шт.

13

K610102

BOLT

Wedglok Bolt, 1/4 UNF x 9/16 in.

1шт.

K19470

WASHER

1/4 in.

1шт.

14

K903412

GASKET

1шт.

K905693

Ramshaft Bracket Assembly

1шт.

15

K906530

Ramshaft Bracket 905693

1шт.

16

K903356

INNER SHOE

Inner Plunger 905693

1шт.

17

K625122

SPRING

905693

1шт.

18

K903355

Outer Plunger 905693

1шт.

19

K903357

Operating Lever 905693

1шт.

20

K903014

PIVOT ASSY.

Pivot Pin--Operating Lever 905693

1шт.

21

K11160

SCREW

Grub Screw 905693

1шт.

22

K903370

PIN

--Operating Lever 905693

1шт.

23

K606070

Grub Screw, 7/16 UNC x 1/4 in. 905693

2шт.

24

K30126

BEARING

905693

1шт.

25

K910426

NO LONGER SERVICED

Breather (Supersedes 906531) 905693

1шт.

K19504

WASHER,9.92mm ID x 14.29mm OD x 2mm Thk

Fibre Washer, 1/8 BSP 905693

1шт.

26

K623538

O-RING,6.99mm Thk x 50.16mm ID, 60 Duro

O Ring 905693

1шт.

27

K36310

GASKET

1шт.

28

K600822

BOLT

1/2 UNC x 5 in.

2шт.

29

K600812

BOLT

1/2 UNC x 2 3/4 in.

2шт.

K11518

WASHER

Lockwasher, 1/2 in.

4шт.

30

K910804

COVER

(Steel Pressing) (Supersedes 906887)

1шт.

31

K910805

MISC PACKAGING

Gasket--Cover (Supersedes 906888)

1шт.

32

K602701

BOLT

Setscrew, 1/4 UNC x 1/2 in. (Replaces 605004)

2шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in.

2шт.

33

K604005

SCREW

1/4 UNC x 3/4 in.

2шт.

34

K17063

BALL

1шт.

35

K24563

SPRING

1шт.
