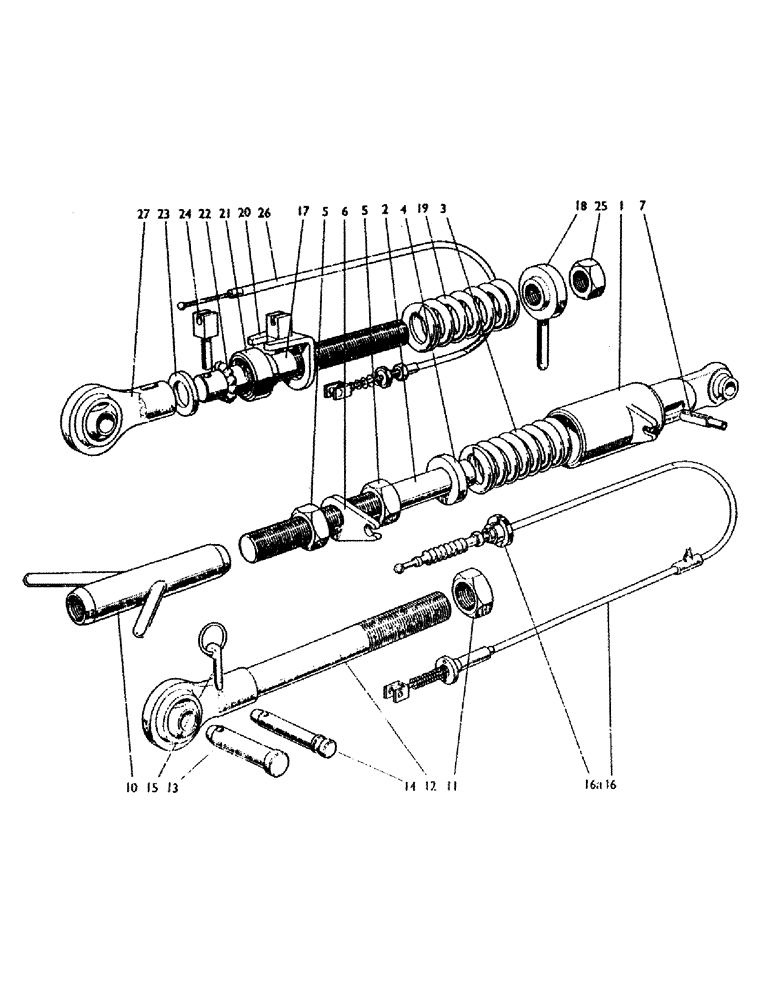

Запчасти Case IH 990B (74) - TOP LINK (07) - HYDRAULIC SYSTEM

K960959

UPPER LINK

Top Link Assembly (Single Acting)--Tractor End

1шт.

To Tractor 453123

1шт.

K909981

LINK

Top Link Assembly (Single Acting)--Tractor End

1шт.

From Tractor 453124

1шт.

1

K907950

HOUSING

Spring Housing (Supersedes 906979), 960959

1шт.

To Tractor 453123

1шт.

1

K909628

Spring Housing, 909981

1шт.

From Tractor 453124

1шт.

2

K907043

SHAFT

Screwed Shaft, 960959

1шт.

To Tractor 453123

1шт.

2

K909629

Screwed Shaft, 909981

1шт.

From Tractor 453124

1шт.

3

K902884

Spring, 960959, 909981

1шт.

4

K903063

Abutment Washer, 960959, 909981

1шт.

5

K19448

LOCK NUT

Locknut, 1 1/4 BSF, 960959, 909981

2шт.

6

K903430

Inner Cable Abutment, 960959

1шт.

To Tractor 453123

1шт.

6

K909985

Inner Cable Abutment, 909981

1шт.

From Tractor 453124

1шт.

K911966

SHIM,.005" Thk

1шт.

From Tractor 453124

1шт.

K911967

SHIM

.010 in.

1шт.

From Tractor 453124

1шт.

K911968

SHIM,.030" Thk

1шт.

From Tractor 453124

1шт.

K912407

Shim, .090 in.

1шт.

From Tractor 453124

1шт.

7

K623900

PIN

Spring Pin (outer), 960959, 909981

1шт.

7

K623910

SPARE PART

Spring Pin (inner), 960959, 909981

1шт.

K903428

CABLE

Outer Cable Abutment, 960959

1шт.

To Tractor 453123

1шт.

K38632

SPRING

Clip, 960959

1шт.

To Tractor 453123

1шт.

10

K46246

NO LONGER SERVICED

Turnbuckle, 960959, 909981

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, --Turnbuckle, 960959, 909981 1/4"-28 NPT x .54" lg

1шт.

K961283

Top Link Assembly (Double Acting)--Tractor End

1шт.

1

K909668

Spring Housing 961283

1шт.

K903066

Adjusting Nut 961283

1шт.

K11160

SCREW

Grubscrew, 1/4 BSF 961283

1шт.

2

K909667

Screwed Shaft 961283

1шт.

3

K903175

Spring 961283

1шт.

4

K903063

Abutment Washer 961283

2шт.

5

K19448

LOCK NUT

Locknut, 1 1/4 BSF 961283

2шт.

6

K909985

Inner Cable Abutment 961283

1шт.

7

K623910

SPARE PART

Spring Pin 961283

1шт.

K623900

PIN

Spring Pin 961283

1шт.

11

K623308

NUT

Locknut, 1 1/4 BSF--L.H.

1шт.

12

K904212

NO LONGER SERVICED

Screw and Housing

1шт.

13

K65690

HITCH PIN

Link Pin--(Category 2)

1шт.

14

K903981

HITCH PIN

Link Pin--(Category 1)

1шт.

15

K62995

NO LONGER SERVICED

Linch Pin and Ring

1шт.

16

K903415

Cable Assembly

1шт.

To Tractor 453123

1шт.

16

K909627

CABLE

Assembly

1шт.

From Tractor 453124

1шт.

16a

K910890

NUT

Hand Nut

1шт.

From Tractor 453124

1шт.

K911970

BOOT

Dirt Excluder (Supersedes 906182)

1шт.

K22179

Grease Nipple--Cable

1шт.

K12121

SCREW

2 BA x 1/2 in.

2шт.

K19488

SPRING WASHER

Spring Washer, 3/16 in.

2шт.

17

K904264

Ball Locating Shaft, overload release--top link

1шт.

18

K904266

NUT

Adjusting Nut and Peg, overload release--top link

1шт.

19

K46243

SPRING

overload release--top link

1шт.

20

K46242

CABLE

Outer Cable Retainer, overload release--top link

1шт.

21

K46241

Thrust Collar, overload release--top link

1шт.

22

K13506

BALL

overload release--top link

11шт.

23

K46240

WASHER

Thrust Washer, overload release--top link

1шт.

24

NLS

NO LONGER SERVICED

Inner Cable Retainer and Pin, overload release--top link

1шт.

25

K623308

NUT

Locknut, 1 1/4 BSF--L.H., overload release--top link

1шт.

26

K904560

CABLE

Assembly, overload release--top link

1шт.

27

K904262

BALL

Rear Ball End Assembly, overload release--top link

1шт.

13

K65690

HITCH PIN

Link Pin--(Category 2), overload release--top link

1шт.

14

K903981

HITCH PIN

Link Pin--(Category 1), overload release--top link

1шт.

15

K62995

NO LONGER SERVICED

Linch Pin and Ring, overload release--top link

1шт.
