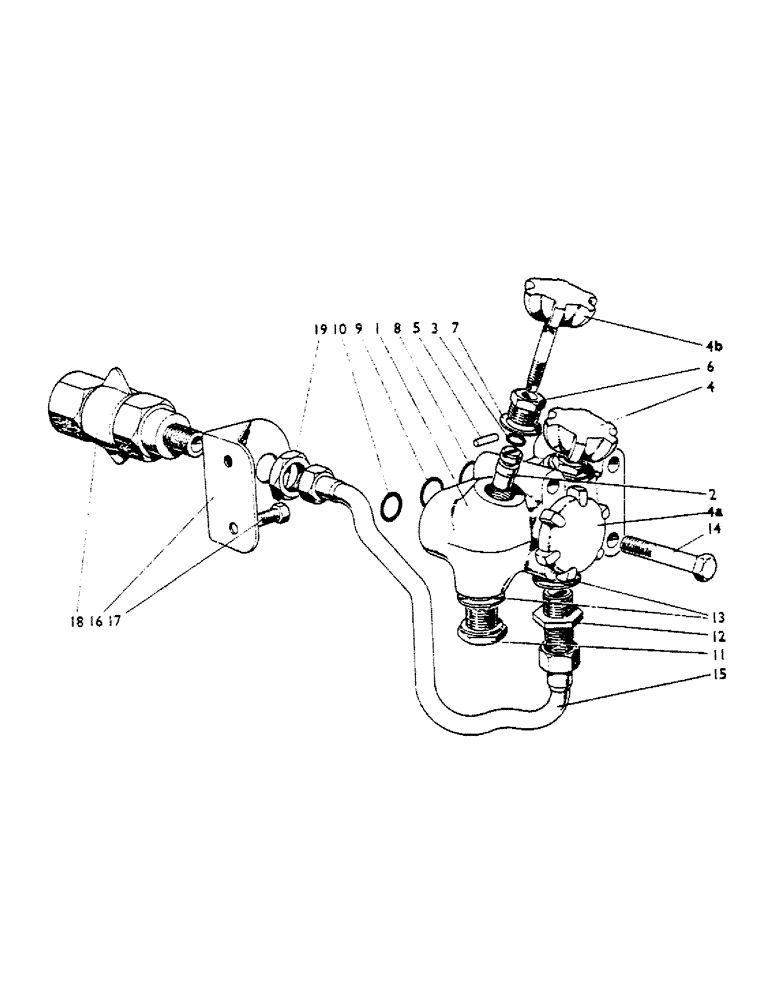

Запчасти Case IH 990B (72A) - THREE-WAY HYD. VALVE, U578, WITH EXACTOR COUPLING, THREE-WAY HYD. VALVE, U664, LESS EXACTOR COUPLING (07) - HYDRAULIC SYSTEM

K912826

SPARE PART

Selector Valve Assembly

1шт.

1

K911996

Valve Body 912826

1шт.

2

K901868

PLUNGER

912826

3шт.

3

K623534

O-RING,0.352" OD x 0.103" Width

O Ring 912826

3шт.

4

K912825

Handwheel and Spindle 912826

1шт.

4a

K914419

KNOB

Handwheel and Spindle 912826

1шт.

4b

K914589

HANDWHEEL

and Spindle 912826

1шт.

5

K623730

PIN

Mills Pin, 1/8 x 1/2 in. 912826

3шт.

6

K901870

BUSHING, LARGE

Screwed Bush 912826

3шт.

7

K15143

WASHER

Rolled Copper Washer 912826

3шт.

8

K15028

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

O Ring--Valve Body

1шт.

9

K24555

O-RING,0.737" ID x 0.943" OD x 0.103"

O Ring--Body to Cylinder Inlet

1шт.

10

K24676

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

O Ring--Body to Pipe

1шт.

11

K24850

WASHER

Flanged Plug

1шт.

12

K30100

UNION

Special Union

3шт.

13

K626783

WASHER

Sealing Washer

4шт.

14

K600416

BOLT

3/8 UNC x 3 in.

4шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

4шт.

15

K912808

NO LONGER SERVICED

, Serial Range: Pipe--Valve-Coupling

1шт.

16

K913927

NO LONGER SERVICED

Bracket--Coupling

1шт.

17

K602840

SCREW

Setscrew, 5/16 UNC x 1/2 in. Bracket to seat support

2шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in. Bracket to seat support

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC Bracket to seat support

2шт.

18

K34087

COUPLING

Exactor Coupling

1шт.

K960657

BREAKER POINTS

Dust Cover--Exactor Coupling

1шт.

19

K19647

NUT

Locknut, 1/2 in. BSP

1шт.
