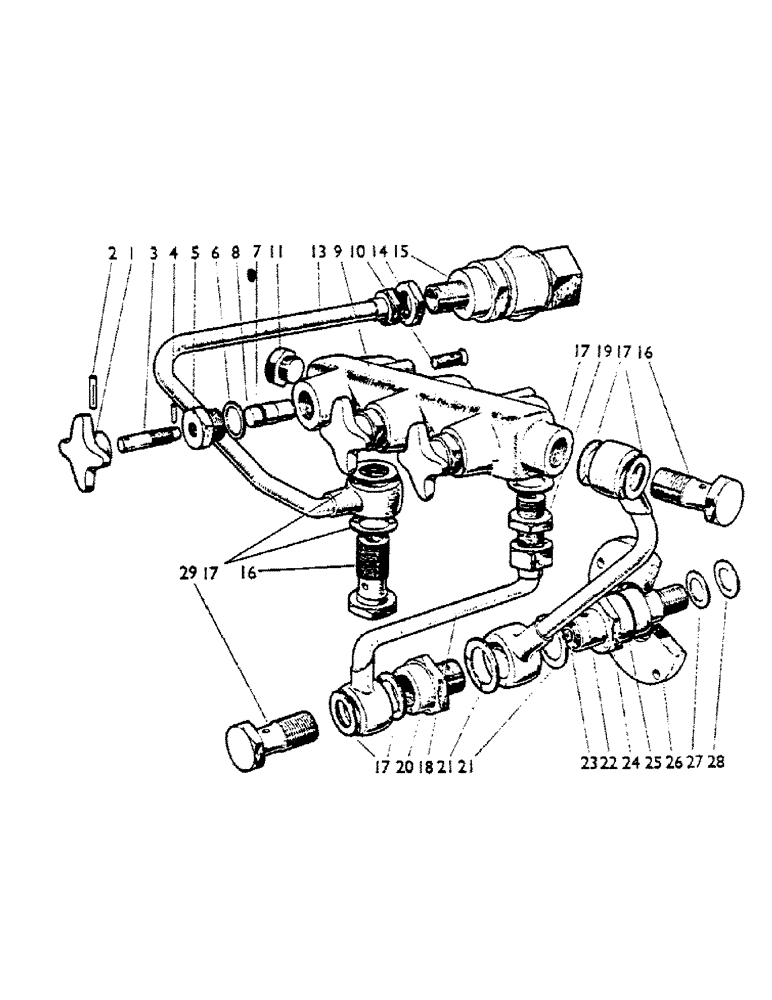

Запчасти Case IH 990B (72) - THREE-WAY HYD. VALVE, U279, WITH EXACTOR COUPLING, THREE-WAY HYD. VALVE, U279, LESS EXACTOR COUPLING (07) - HYDRAULIC SYSTEM

K902761

VALVE, CHECK

Selector Valve Assembly

1шт.

1

K910129

HANDWHEEL

(Supersedes 901871) 902761

3шт.

2

K623727

GROOVED PIN,5/32" x 7/8", Type A

Pin, Grooved, , Mills Pin 902761 5/32" x 7/8", Type A

3шт.

3

K901869

SPARE PART

Valve Spindle 902761

3шт.

4

K623730

PIN

Mills Pin, 1/8 x 1/2 in. 902761

3шт.

5

K901870

BUSHING, LARGE

Screwed Bush 902761

3шт.

6

K15143

WASHER

Copper Washer 902761

3шт.

7

K623534

O-RING,0.352" OD x 0.103" Width

Sealing Ring 902761

3шт.

8

K901868

PLUNGER

902761

3шт.

9

K901867

Valve Body 902761

1шт.

10

K624712

SCREW

C'sk., 5/16 in. 902761

4шт.

11

K624745

Plug, 1/2 BSP x 9/16 in. (Replaces 24850), 902761

1шт.

13

K901883

PIPE

--Valve, Serial Range: Body-Take-off

1шт.

14

K19647

NUT

Locknut

1шт.

15

K34087

COUPLING

Exactor Coupling

1шт.

K960657

BREAKER POINTS

Dust Cover--Exactor Coupling

1шт.

16

K901876

UNION

Banjo Bolt, 1/2 BSP

2шт.

17

K626783

WASHER

Sealing Washer, 1/2 BSP

8шт.

18

K901885

PIPE

--Valve, Serial Range: Body-Distributor

1шт.

19

K30100

UNION

Adaptor, 1/2 BSP

1шт.

20

K901875

DISTRIBUTOR

Extension

1шт.

21

K626785

WASHER

Sealing Washer

2шт.

22

K901887

PIPE

--Distributor to Valve Body

1шт.

23

K24701

O-RING,0.426" ID x 0.566" OD x 0.07"

Cord Ring, 7/16 in. dia.

1шт.

24

K901874

DISTRIBUTOR

Body and Tube

1шт.

25

K24618

O-RING

O Ring, 1 5/16 in. dia.

1шт.

26

K905475

Cover Plate

1шт.

K19471

WASHER

5/16 in

3шт.

27

K626784

WASHER,23.24mm ID x 33.34mm OD x 2.34mm Thk

Sealing Washer

1шт.

28

K626782

WASHER

Sealing Washer

1шт.

K909892

Flow Control Valve

1шт.

29

K909757

BOLT (SPREADER)

Special Banjo Bolt (Replaces 901876), 909892

1шт.

K909637

Plunger 909892

1шт.

K24832

SPRING

Return Spring 909892

1шт.

K621446

Internal Circlip 909892

1шт.
