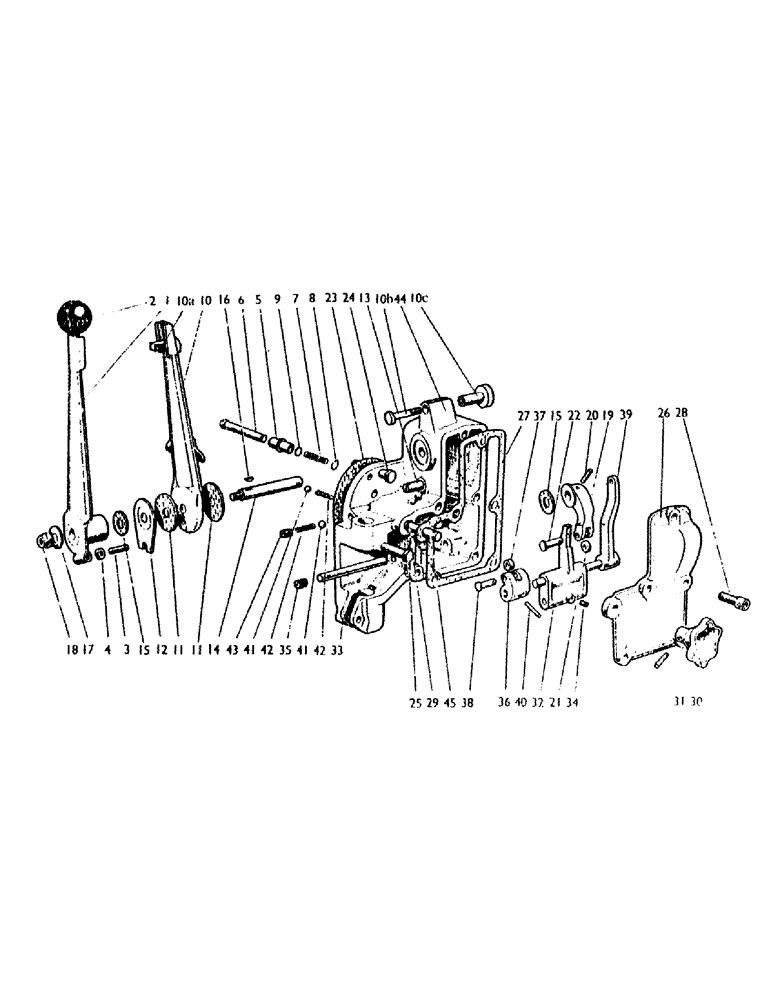

Запчасти Case IH 990B (70) - HYDRAULIC CONTROLS (07) - HYDRAULIC SYSTEM

1

K903374

X

Control Lever

1шт.

To Tractor 453123

1шт.

1

K909871

LEVER

Control Lever

1шт.

From Tractor 453124

1шт.

2

K902270

KNOB

1шт.

3

K903380

ADJUSTMENT SCREW,5/16" x 1 3/16"

Grub Screw

1шт.

4

K19441

NUT

Locknut, 5/16 BSF

1шт.

5

K903436

INSERT

1шт.

6

K911999

PLUNGER

(Supersedes 903437)

1шт.

6

K903437

SPARE PART

Plunger (Used with "E" Clip 621583)

1шт.

7

K908934

SPRING

(Replaces 12043)

1шт.

K19470

WASHER

1/4 in.

2шт.

K621500

RING, SNAP

Circlip (Replaces 24568)

1шт.

8

K621583

RING, SNAP

E Clip (Used with Plunger 903437)

1шт.

9

K14658

O-RING,0.07" Thk x 0.239" ID

O Ring

1шт.

10

K903439

SPARE PART

Pre-set Guide

1шт.

To Tractor 453123

1шт.

10

K909869

SPARE PART

Pre-set Guide

1шт.

From Tractor 453124

1шт.

10a

K909866

Latch Stop

1шт.

From Tractor 453124

1шт.

K909867

CLIP

Spring Clip

1шт.

From Tractor 453124

1шт.

K623736

Mills Pin

1шт.

From Tractor 453124

1шт.

10b

K903441

BOLT

Special Bolt

1шт.

From Tractor 453124

1шт.

10c

K909728

NUT

Hand Nut

1шт.

From Tractor 453124

1шт.

K19481

SPRING WASHER

Spring Washer

1шт.

From Tractor 453124

1шт.

11

K903019

GASKET

Friction Disc

2шт.

12

K903020

PLATE

Restraining Plate

1шт.

13

K908210

NO LONGER SERVICED

Stop

1шт.

14

K906003

SHAFT

--Control Lever

1шт.

15

K903018

WASHER

Friction Washer

2шт.

16

K19603

KEY

Woodruff Key--No. 305

1шт.

17

K626723

BELLEVILLE WASHER

Belleville Washer

1шт.

18

87016560

JAM NUT,Jam, 3/8"-16, G5

Locknut, 3/8 UNC (Replaces 607302)

2шт.

19

K903505

NO LONGER SERVICED

Actuating Lever

1шт.

20

K623733

PIN

Mills Pin, 3/16 x 7/8 in.

1шт.

21

K903046

ROLLER

1шт.

22

K903045

Pin

1шт.

K19470

WASHER

Plain Washer, 1/4 in.

1шт.

K19520

PIN

Split Pin, 1/16 x 1/2 in.

1шт.

23

K903026

GASKET

Box to rear axle casing

1шт.

24

K602806

BOLT

Setscrew, 5/16 UNC x 1 1/8 in. Box to rear axle casing

2шт.

25

K600217

BOLT

5/16 UNC x 3 in. Box ti rear axle casing

1шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in. Box to rear axle casing

3шт.

26

K910823

Cover (Steel Pressing) (Supersedes 902984)

1шт.

27

K910824

GASKET

--Cover (Supersedes 902985)

1шт.

28

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Setscrew, 5/16 UNC x 5/8 in. (Replaces 605534)

5шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

5шт.

29

K14573

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

O Ring

1шт.

30

K901698

NO LONGER SERVICED

Hand Wheel, TCU

1шт.

31

K623930

SPRING

Dowel, 1/8 x 3/4 in.

1шт.

32

K903010

Rocker Lever

1шт.

33

K903014

PIVOT ASSY.

Pivot Pin--Rocker

1шт.

34

K11160

SCREW

Grub Screw, 1/4 BSF

1шт.

35

K606070

Grub Screw, 7/16 UNC

2шт.

36

K903012

Lever--Plunger

1шт.

37

K903046

ROLLER

1шт.

38

K903045

Pin

1шт.

K19470

WASHER

1шт.

K19520

PIN

Split Pin, 1/16 x 1/2 in.

1шт.

39

K907905

Operating Lever

1шт.

40

K623727

GROOVED PIN,5/32" x 7/8", Type A

Pin, Grooved, , Mills Pin (Replaces 623734) 5/32" x 7/8", Type A

1шт.

41

K17063

BALL

2шт.

42

K14367

SPRING

2шт.

43

K606021

SCREW

Grub Screw

1шт.

44

K905684

Control Box

1шт.

45

K903025

Adjusting Spindle--Hand Wheel

1шт.
