Запчасти Case IH 990B (69) - DEPTH CONTROL VALVE AND BODY (07) - HYDRAULIC SYSTEM

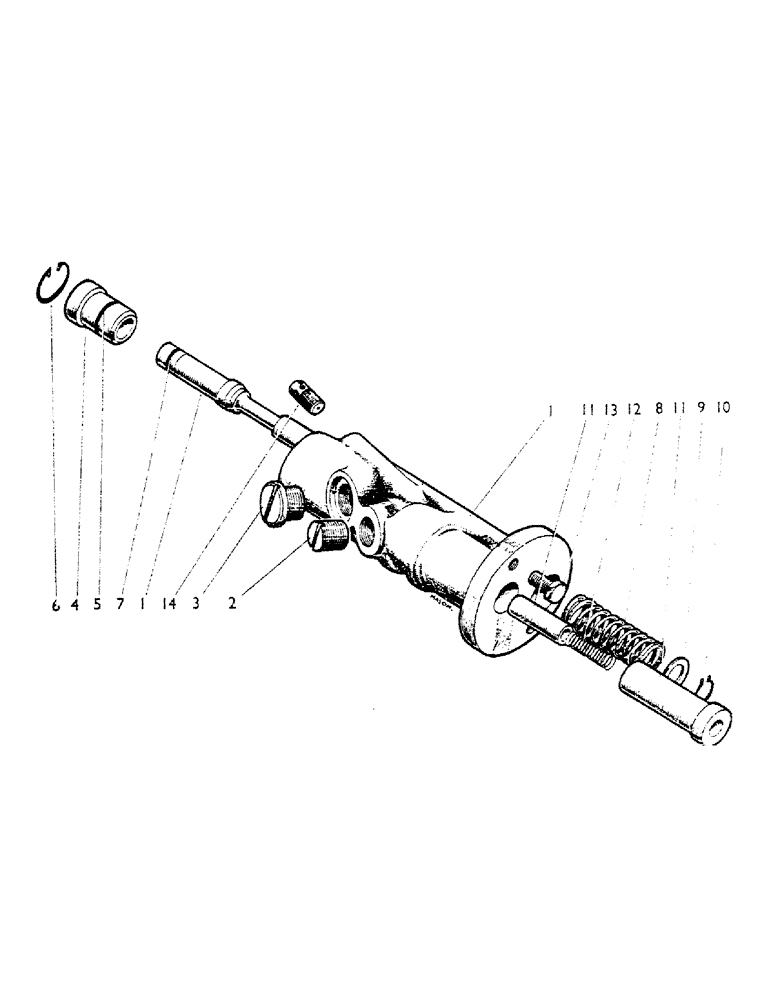

Схема запчастей Case IH 990B - (69) - DEPTH CONTROL VALVE AND BODY (07) - HYDRAULIC SYSTEM
8
1
11
12
10
9
11
1
4
14
7
6
3
2
13
5

Артикул

Название

Примечание

Количество

K961281

LOCK VALVE

Valve Body (Complete with valves) Supersedes 961029

1шт.

1

K961282

LOCK VALVE

Valve Body and Spindle (Not supplied separately) Supersedes 961030, 961281

1шт.

2

K606090

SET SCREW

Grub Screw, 5/8 UNC 961281

1шт.

3

K609440

PLUG

--Valve Body 961281

1шт.

K626780

WASHER

961281

1шт.

4

K902976

SLEEVE

961281

1шт.

5

K623540

O-RING,0.614" ID x 0.754" OD x 0.07"

O Ring, 3/4 in. o/dia. 961281

1шт.

6

K14143

Circlip, 7/8 in. 961281

1шт.

7

K24554

O-RING

O Ring, 1/2 in. o/dia. 961281

1шт.

8

K625117

Return Spring 961281

1шт.

9

K902978

Thrust Washer 961281

1шт.

10

K15457

Circlip, 7/16 in. 961281

1шт.

11

K961028

SLEEVE CYLINDER

Sleeve and Plunger (Not supplied separately), 961281

1шт.

12

K12043

SPRING

961281

1шт.

14

K907213

VALVE

Restrictor Valve 961281

1шт.

13

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

Setscrew, 5/16 UNC x 1 in. Valve

2шт.

K19481

SPRING WASHER

Spring Washer body fixing

2шт.

Выбрано товаров: 17
