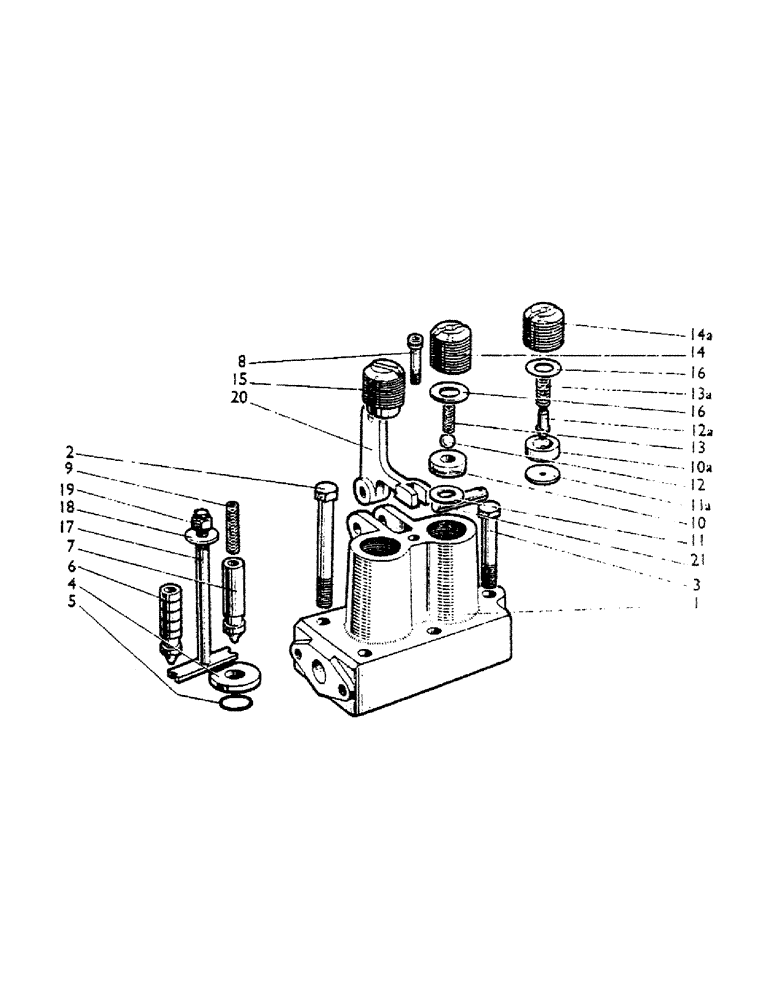

Запчасти Case IH 990B (68) - CONTROL VALVE, HYDRAULIC LIFT PUMP (07) - HYDRAULIC SYSTEM

K961024

VALVE

Control Valve (Complete)

1шт.

1

K961025

HOUSING ASSY.

Valve Housing and Plungers

1шт.

2

K24838

BOLT

5/16 BSF x 2 5/8 in.

2шт.

3

K19227

BOLT

5/16 BSF x 1 5/8 in.

2шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

5шт.

4

K901638

VALVE

Seat

2шт.

5

K24852

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

Sealing Ring

2шт.

6

K909288

PLUNGER

--Leak-off Valve (Supersedes 903298)

1шт.

7

K89236

VALVE

Plunger--Control Valve

1шт.

8

K624677

SCREW

Cap Head, 5/16 BSF x 1 5/8 in.

1шт.

9

K24832

SPRING

Valve Return Spring

2шт.

10

K901965

SPARE PART

Ball Seat

1шт.

To Tractor 457319

1шт.

10a

K910412

INSERT

Valve Seat

2шт.

From Tractor 457320

1шт.

11

K15735

WASHER

Special Washer

2шт.

To Tractor 457319

1шт.

11a

K910421

WASHER

Restrictor Washer

2шт.

From Tractor 457320

1шт.

12

K17063

BALL

1/4 in. dia.

1шт.

To Tractor 457319

1шт.

12a

K910413

VALVE

Plunger

2шт.

From Tractor 457320

1шт.

13

K24831

SPRING

1шт.

To Tractor 457319

1шт.

13a

K625160

SPRING

2шт.

From Tractor 457320

1шт.

14

K89238

SPARE PART

Special Plug

1шт.

To Tractor 457319

1шт.

14a

K910414

PLUG

Special Plug

2шт.

From Tractor 457320

1шт.

15

K901967

SEALING LEAD

Sealing Plug

1шт.

To Tractor 457319

1шт.

17

K906102

VALVE

Operating Lever

1шт.

18

K89245

WASHER

Special Washer

1шт.

19

K607300

NUT

Nyloc Nut, 1/4 UNC

1шт.

20

K89246

BUZZER

Bell Crank

1шт.

21

K89247

PIN

--Valve Housing

1шт.

K19470

WASHER

1/4 in.

2шт.

K11934

PIN

Split Pin, 1/16 x 1/2 in.

2шт.
