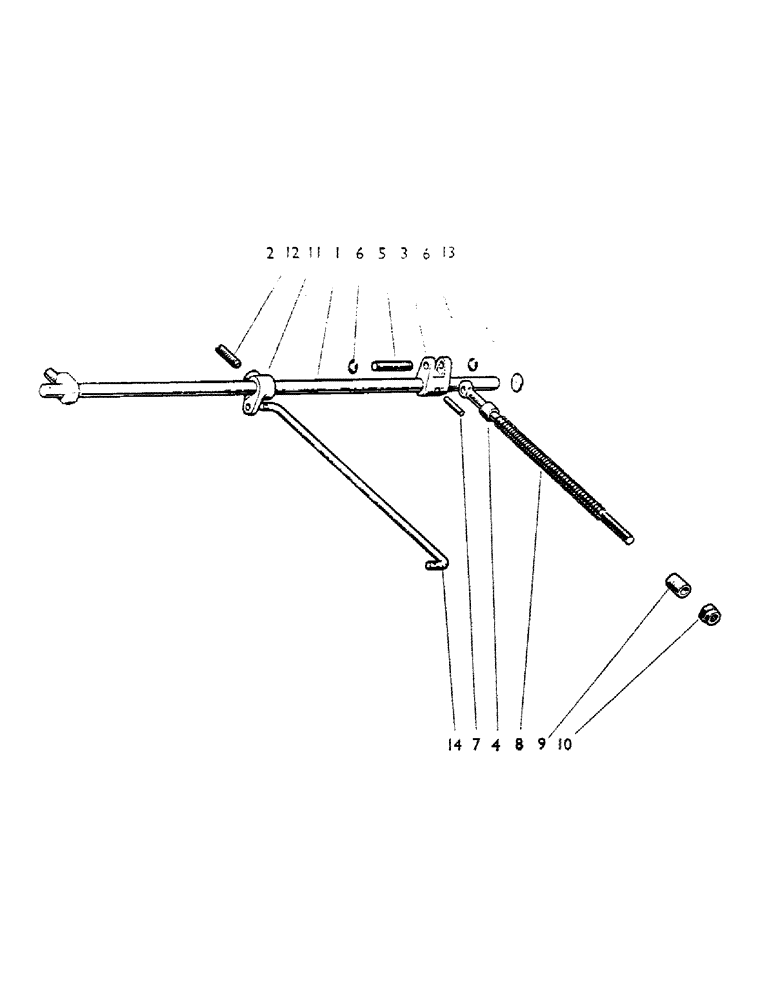

Запчасти Case IH 990B (65) - CONTROLS, HYDRAULIC LIFT PUMP (07) - HYDRAULIC SYSTEM

1

K902991

Control Shaft

1шт.

2

K906001

SUPPORT

Control Shaft Support

1шт.

3

K904146

LEVER

and Thrust Button

1шт.

4

K903365

Connecting Rod

1шт.

5

K903373

NO LONGER SERVICED

Pin

1шт.

6

K621585

RING, SNAP

E Clip

2шт.

7

K623740

SPLIT PIN/SAFETY PIN

Spring Dowel Pin

1шт.

8

K625118

SPRING

1шт.

9

K903368

COLLAR

2шт.

10

K14420

NO LONGER SERVICED

Nyloc Nut, 5/16 BSF

1шт.

11

K902990

Operating Lever

1шт.

12

K30111

Locating Screw

1шт.

K626674

WASHER

Special Washer, 1/2 in.

2шт.

K19535

PIN

Split Pin, 1/8 x 3/4 in.

2шт.

13

K24711

SHIM

Welch Plug, 5/8 in.

1шт.

K19441

NUT

Locknut, 5/16 BSF

1шт.

14

K902989

Operating Rod--Pump

1шт.

K19470

WASHER

1/4 in.

2шт.

K19520

PIN

Split Pin, 1/16 x 3/8 in.

2шт.
