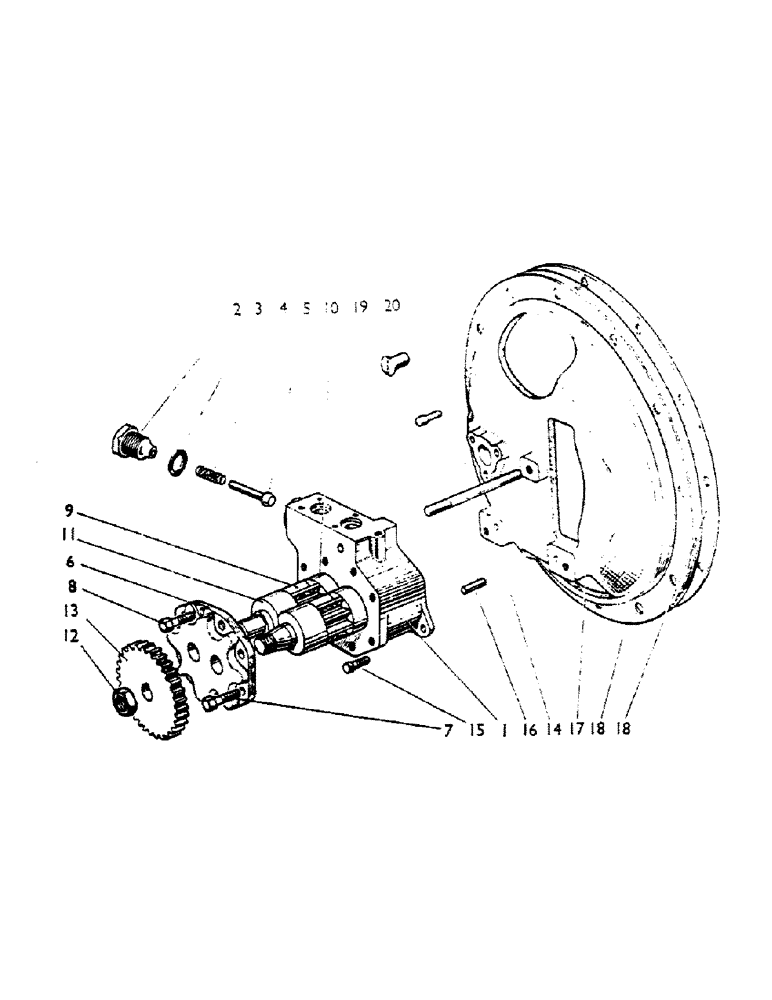

Запчасти Case IH 990B (64) - HYDRAULIC LIFT PUMP (07) - HYDRAULIC SYSTEM

K961023

PUMP

Hydraulic Pump (with Valve Housing and Gear)

1шт.

K913744

NO LONGER SERVICED

Pump Assembly (Supersedes 901637)

1шт.

1

K903208

PUMP

Body 913744

1шт.

2

K903096

PLUG

913744

1шт.

3

K903097

GASKET

Bonded Seal 913744

1шт.

4

K903098

SPRING

913744

1шт.

5

K903099

VALVE POPPET

Poppet 913744

1шт.

6

K903209

PLATE

End Plate 913744

1шт.

7

K612905

BOLT

3/8 UNF x 1 1/8 in. 913744

6шт.

8

K612904

NO LONGER SERVICED

Bolt, 3/8 UNF x 1 in. 913744

2шт.

9

K961695

SPARE PART

Rotor Pack and Gear (Supersedes 903095), 913744

1шт.

To Tractor 467575

1шт.

9

K961694

ROTOR

Pack (Taper Shaft) 961695 913744

1шт.

From Tractor 467576

1шт.

10

K961728

ROTOR

Bush (Pair) 961694 961695 913744

1шт.

11

K961729

ROTOR

Bush (Pair) 961694 961695 913744

1шт.

K960648

O-RING

O Ring 961694 961695 913744

2шт.

K913552

WASHER

Tab Washer 961694 961695 913744

1шт.

From Tractor 467576

1шт.

12

425-158

JAM NUT,Jam, 1/2"-20, G5

1/2 UNF 961694 961695 913744

1шт.

From Tractor 467576

1шт.

13

K913380

GEAR

Driven Gear (Taper Bore) 961695

1шт.

From Tractor 467576

1шт.

K11262

KEY

--Woodruff No. 505 961695

1шт.

From Tractor 467576

1шт.

13

K30081A

GEAR

Driven Gear (Parallel Bore)

1шт.

To Tractor 467575

1шт.

K19604

KEY

--Woodruff No. 405

1шт.

To Tractor 467575

1шт.

K30114

Circlip

1шт.

To Tractor 467575

1шт.

14

K608221

STUD

3/8 UNC x 3 11/16 in. Pump to back plate

1шт.

15

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

Setscrew, 3/8 UNC x 1 1/8 in. Pump to back plate

2шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in. Pump to back plate

3шт.

280136

NUT,3/8"-16, G8

Pump to back plate 3/8"-16, G8

1шт.

16

K24853

PIN

Dowel Pump to back plate

2шт.

17

K905667

SUPPORT

Plate

1шт.

18

K89175

GASKET

2шт.

19

K605157

SCREW

7/16 UNC x 1 1/8 in.

1шт.

20

K24827

PIN

Headed Dowel

1шт.

K961003

Hydraulic Pump (with Valve Housing and Gear)--Reconditioned

1шт.
