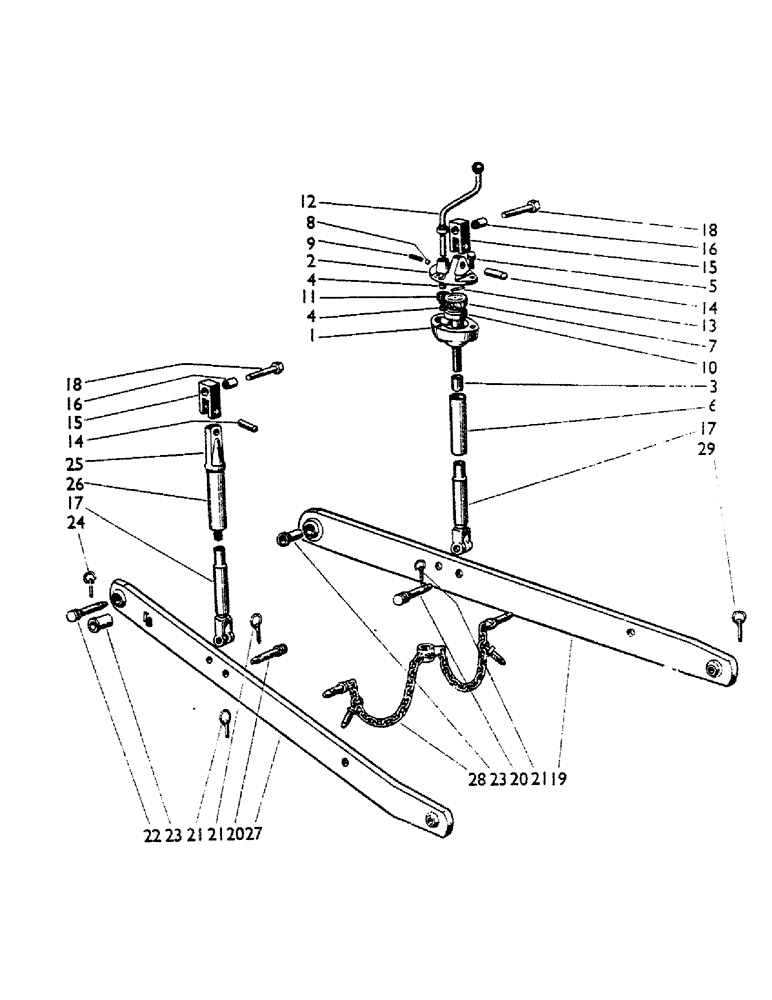

Запчасти Case IH 990B (62) - LEVELLING LEVER AND LOWER LINK (07) - HYDRAULIC SYSTEM

K906095

Levelling Lever Assembly

1шт.

1

K961034

HOUSING

Gear Housing (Complete with Bushes) 906095

1шт.

2

K902185

CAP

--Gear Housing (Complete with Bush), 906095

1шт.

3

K621339

BUSHING

Bush 906095

1шт.

4

K621340

BUSHING

Bush 906095

2шт.

5

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

906095 Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in. 906095

3шт.

6

K907975

NO LONGER SERVICED

Outer Tube 906095

1шт.

7

K907974

SCREW

Levelling Screw 906095

1шт.

8

K11483

BALL

Steel Ball, 3/16 in. 906095

1шт.

9

K625128

VALVE SPRING

Spring 906095

1шт.

10

K19187

THRUST BEARING

906095

1шт.

11

K901951

GEAR

Spur Pinion 906095

1шт.

12

K907046

NO LONGER SERVICED

Hand Lever and Shield 906095

1шт.

13

K623741

SPRING

Dowel Pin 906095

1шт.

14

K901962

PIN

Pivot Pin 906095

1шт.

15

K901960

FORK

End 906095

1шт.

16

K901963

BUSHING

Bush 906095

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , 906095 1/4"-28 NPT x .54" lg

3шт.

17

K907938

NUT

Adjusting Nut 906095

1шт.

18

K601414

BOLT

3/4 UNC x 4 in. Lifting Arm (Replaces 601413), 906095

1шт.

K19476

WASHER

3/4 in. Lifting Arm 906095

1шт.

18

K607332

SPARE PART

Nyloc Nut, 3/4 UNC (Thin Head) Lifting Arm Alternatives, 906095

1шт.

K607392

NUT

Philidas Nut, 3/4 UNC (Thin Head) Alternatives, 906095

1шт.

19

K907014

ARM

Lower Link--R.H.

1шт.

20

K903399

HITCH PIN

Link Pin

2шт.

21

K66408

PIN

Linch Pin and Ring

4шт.

22

K900054

LINK

Pin

2шт.

23

K900055

BUSHING

Bush

2шт.

24

K900139

PIN

Linch Pin and Ring

2шт.

K907936

Lift Rod Assembly

1шт.

25

K901961

NUT

Adjustment Screw 907936

1шт.

26

K907946

TUBE

Outer Tube 907936

1шт.

14

K901962

PIN

Pivot Pin 907936

1шт.

15

K901960

FORK

End 907936

1шт.

16

K901963

BUSHING

Bush 907936

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , 907936 1/4"-28 NPT x .54" lg

2шт.

17

K907938

NUT

Adjusting Nut 907936

1шт.

18

K601414

BOLT

3/4 UNC x 4 in. Lift Arm Replaces 601413

1шт.

K19476

WASHER

3/4 in. Lift Arm

1шт.

K607332

SPARE PART

Nyloc Nut, 3/4 UNC (Thin Head) Lift, Alternatives Arm

1шт.

K607392

NUT

Philidas Nut, 3/4 UNC (Thin Head) Alternatives

1шт.

27

K907015

ARM

Lower Link--L.H.

1шт.

28

K906999

CHAIN (AG)

Check Chain Assembly

1шт.

To Tractor 476324

1шт.

28

K914188

Check Chain

2шт.

From Tractor 476325

1шт.

28

K600406

BOLT

3/8 UNC X 1 3/4 in.

2шт.

From Tractor 476325

1шт.

28

87016560

JAM NUT,Jam, 3/8"-16, G5

Locknut, 3/8 UNC

4шт.

From Tractor 476325

1шт.

28

K914134

BRACKET

Anchor Bracket

1шт.

From Tractor 476325

1шт.

28

K608317

SCREW

Stud, 7/16 UNC x 1 1/2 in.

3шт.

From Tractor 476325

1шт.

28

K607512

SCREW

Nut--Special, 7/16 UNC

3шт.

From Tractor 476325

1шт.

29

K62995

NO LONGER SERVICED

Linch Pin and Ring

2шт.
