(61) - STABILISER BARS, U382

Запчасти Case IH 990B (61) - STABILISER BARS, U382 (07) - HYDRAULIC SYSTEM

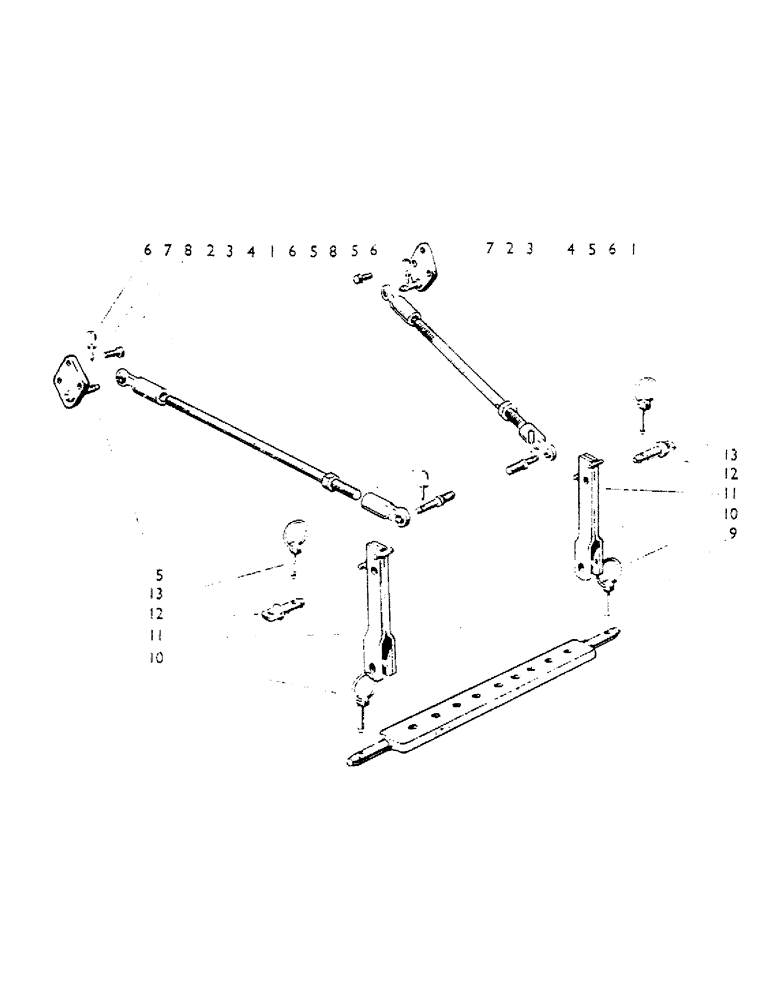

Схема запчастей Case IH 990B - (61) - STABILISER BARS, U382 (07) - HYDRAULIC SYSTEM
9
10
6
12
5
12
4
6
7
4
2
6
1
7
5
3
5
10
13
6
5
13
11
1
11
8
8
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

K901821

BALL

Housing--Rear

2шт.

2

K901818

PIVOT

Ball Housing--Front

2шт.

3

K901815

SCREW,21-1/4mm

ed Bar

2шт.

4

K11569

NUT

Locknut, 1 in. BSF

2шт.

5

K907008

PIN

--Lower Link and Support Plate

4шт.

280954

NUT,3/4"-10, G5

3/4 UNC (Plated) (Replaces 607007)

4шт.

K19486

WASHER, LOCK

Spring Washer, 3/4 in.

4шт.

6

K900139

PIN

Linch Pin and Ring

4шт.

7

K901824

SUPPORT

Plate

2шт.

8

K603107

BOLT,1/2" x 1 3/8"

Setscrew, 1/2 UNC x 1 3/8 in. Support plate to spur reduction

6шт.

K19484

LOCK WASHER

Spring Washer, 1/2 in. Support plate to spur reduction

6шт.

K85782

LINKAGE DRAWBAR (U291)

1шт.

9

K902280

LINKAGE

Drawbar

1шт.

10

K900139

PIN

Linch Pin and Ring

2шт.

11

K902281

Lift Rod Extension

2шт.

12

K903399

HITCH PIN

2шт.

13

K66408

PIN

Linch Pin and Ring

2шт.
