Запчасти Case IH 990B (19) - AIR CLEANER (01) - ENGINE

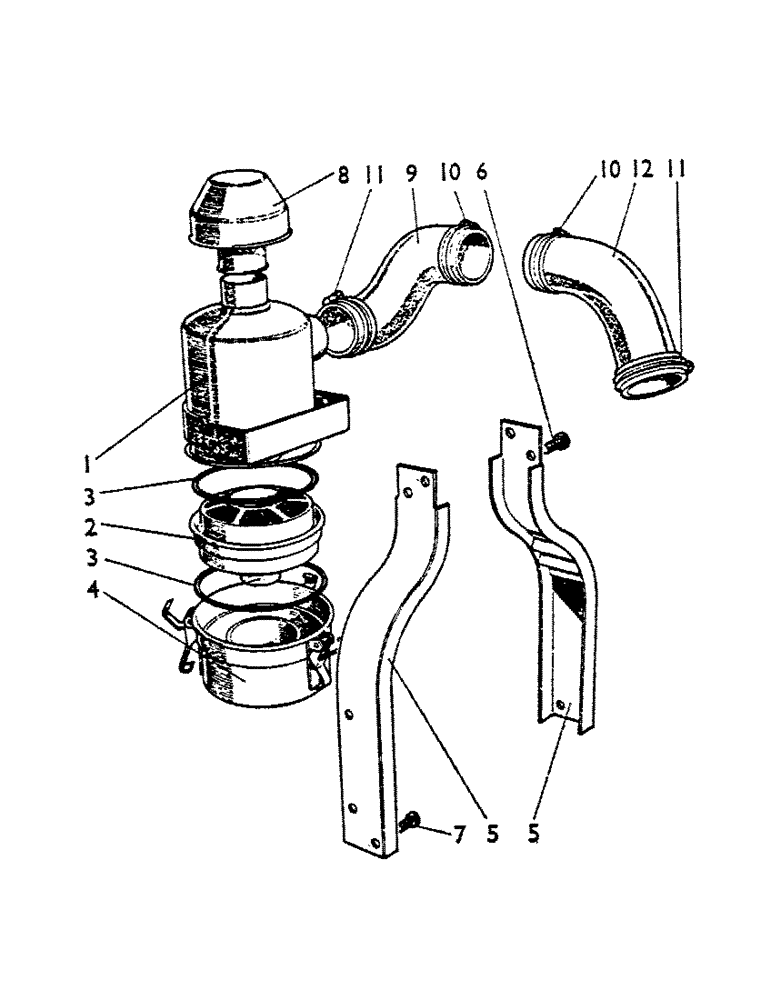

Схема запчастей Case IH 990B - (19) - AIR CLEANER (01) - ENGINE
3
1
6
10
7
10
9
4
5
11
11
5
8
2
12
3

Артикул

Название

Примечание

Количество

1

K906529

Air Cleaner, 6 in. dia. (Complete)

1шт.

To Tractor 456232

1шт.

1

K909917

AIR CLEANER

6 in. dia. (Complete)

1шт.

From Tractor 456233

1шт.

2

K900218

FILTER, ELEMENT

Lower Element

1шт.

3

K902981

SPARE PART

Rubber Sealing Ring

2шт.

4

K903432

Bowl (with Toggle Clips)

1шт.

5

K906528

Bracket--Air Cleaner

1шт.

To Tractor 456232

1шт.

5

K908976

Bracket--Air Cleaner

2шт.

From Tractor 456233

1шт.

6

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Setscrew, 5/16 UNC x 5/8 in.--Bracket to Air Cleaner

4шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

4шт.

9635082

NUT,5/16" - 18, Gr 5

Plain Nut, 5/16 UNC

4шт.

7

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

Setscrew, 5/16 UNC x 7/8 in.--Bracket to Front Extension

2шт.

To Tractor 456232

1шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

2шт.

To Tractor 456232

1шт.

7

K602803

BOLT

Setcrew, 5/16 UNC x 3/4 in.--Bracket to Front Extension

4шт.

From Tractor 456233

1шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

4шт.

From Tractor 456233

1шт.

8

K906619

SPARE PART

Pre-Cleaner

1шт.

To Tractor 456232

1шт.

8

K909918

CLEANER

Pre-Cleaner

1шт.

From Tractor 456233

1шт.

K906872

ELBOW UNION

Elbow Coupling

1шт.

To Tractor 456232

1шт.

9

K908977

PIPE

, Serial Range: Pipe--Cleaner-Radiator

1шт.

From Tractor 456233

1шт.

10

K13083

NO LONGER SERVICED

Hose Clip, 2 1/2 in. dia. (Replaces 13082)

2шт.

11

K13085

NO LONGER SERVICED

Hose Clip, 2 3/4 in. dia.

2шт.

K906874

HOSE

Coupling

1шт.

To Tractor 456232

1шт.

12

K908978

PIPE

, Serial Range: Pipe--Radiator-Manifold

1шт.

From Tractor 456233

1шт.

K906873

PIPE

, Serial Range: Pipe--Cleaner-Manifold

1шт.

To Tractor 456232

1шт.

K13445

CLIP

Jubilee Clip, No. 2--Manifold, Serial Range: Pipe-Radiator

1шт.

To Tractor 456232

1шт.

K903381

NO LONGER SERVICED

Transfer--Air Cleaner (English)

1шт.

Выбрано товаров: 41
