Запчасти Case IH 990B (16) - OIL FILTER (01) - ENGINE

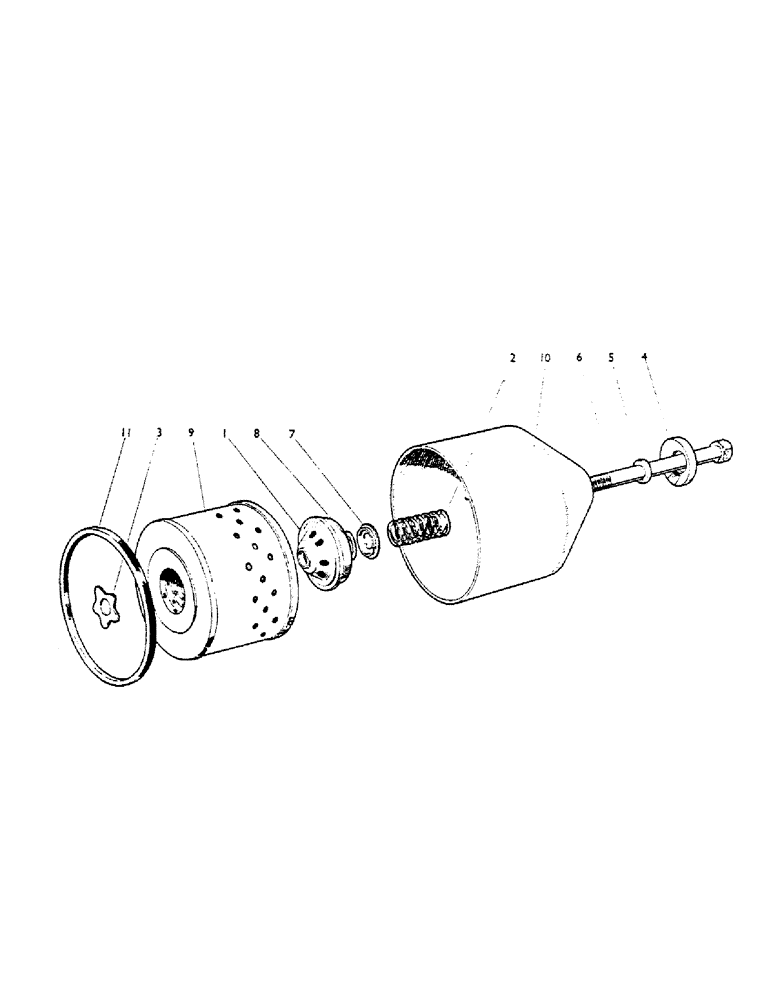

Схема запчастей Case IH 990B - (16) - OIL FILTER (01) - ENGINE
7
8
2
4
6
9
10
3
1
5
11

Артикул

Название

Примечание

Количество

K907654

CLEANER

Oil Filter (Complete) Alternative to 907657, Includes: Ref. 1 thru 11

1шт.

1

K903057

VALVE

Relief

1шт.

2

K903056

SPRING

1шт.

3

K903058

PLATE

Locating

1шт.

4

K903053

COLLAR

1шт.

5

K903054

SEAL

Ring

1шт.

6

K903052

BOLT

7/16 UNC x 5 3/8 in.

1шт.

7

K19473

WASHER

7/16 in.

1шт.

8

K903075

WASHER

Sealing 7/16 in.

1шт.

9

K902321

FILTER

Element (Purolator Alternatives

1шт.

9

K902125

FILTER, ELEMENT

(AC-Delco) Alternatives

1шт.

10

K903222

CLEANER

Bowl and Relief Valve Assembly, (Supersedes 903055), Includes: Ref. 1 thru 8

1шт.

11

K87644

RING

Sealing

1шт.

SERVICE PARTS, PACKS AND TOOLS

1шт.

K961050

ENGINE ASSEMBLY

Diesel , 3 5/8 in. bore--less Dynamo, Starter and Clutch (Reconditioned) AD4/47A Livedrive, service parts, packs and tools

1шт.

K961051

ENGINE ASSEMBLY

Diesel , 3 5/8 in. bore--less, service parts, packs and tools Dynamo, Starter and Clutch (Reconditioned) AD4/47B Non-Livedrive

1шт.

K961002

NO LONGER SERVICED

Sleeve and Piston Pack (Single), service parts, packs and tools

4шт.

K67922

NO LONGER SERVICED

Piston Ring Pack Sets of 16 Rings Standard, service parts, packs and tools

1шт.

K67923

NO LONGER SERVICED

Piston Ring Pack Sets of 16 Rings .010 in. Oversize, service parts, packs and tools

1шт.

K67924

NO LONGER SERVICED

Piston Ring Pack Sets of 16 Rings .020 in. Oversize, service parts, packs and tools

1шт.

K67925

Piston Ring Pack Sets of 16 Rings .040 in. Oversize, service parts, packs and tools

1шт.

K65035

NO LONGER SERVICED

Piston Ring--No. 1 Compression .010 in. Oversize, service parts, packs and tools

4шт.

K65036

RING, PISTON

-No. 2 and 3 Compression, .010 in. Oversize, service parts, packs and tools

8шт.

K89074

SCRAPER

Piston Ring--.010 in. Oversize, service parts, packs and tools

4шт.

K908084

X

Piston Assembly (Complete with Rings), service parts, packs and tools

4шт.

K908085

Piston (Not supplied separately) 908084 .020 in. Oversize, service parts, packs and tools

1шт.

K65030

Ring--No. 1 Compression 908084 .020 in. Oversize, service parts, packs and tools

1шт.

K65031

PISTON

Ring--No. 2 and 3 Compression, 908084 .020 in. Oversize, service parts, packs and tools

2шт.

K89076

RING

Piston -Scraper 908084 .020 in. Oversize, service parts, packs and tools

1шт.

K908086

SPARE PART

Piston Assembly, service parts, packs and tools(Complete with Rings)

4шт.

K908087

Piston (Not supplied separately) 908086 .040 in. Oversize, service parts, packs and tools

1шт.

K65033

Piston Ring--No. 1 Compression 908086 .040 in. Oversize, service parts, packs and tools

1шт.

K65034

Piston Ring--No. 2 and 3 Compression, 908086 .040 in. Oversize, service parts, packs and tools

2шт.

K89078

PISTON ASSY.

Ring--Scraper 908086 .040 in. Oversize, service parts, packs and tools

1шт.

K908072

BEARING HALF

-Big End (Halves) .010 in. Undersize, service parts, packs and tools

8шт.

K908073

BEARING HALF

-Big End (Halves) .020 in. Undersize, service parts, packs and tools

8шт.

K913668

BEARING

-Big End (Halves) .030 in. Undersize, service parts, packs and tools

8шт.

K908074

BEARING HALF

Main (Upper) .010 in. Undersize, service parts, packs and tools

3шт.

K908075

NO LONGER SERVICED

Main Bearing--(Lower) .010 in. Undersize, service parts, packs and tools

3шт.

K908076

NO LONGER SERVICED

Main Bearing--(Upper) .020 in. Undersize, service parts, packs and tools

3шт.

K908077

NO LONGER SERVICED

Main Bearing--(Lower) .020 in. Undersize, service parts, packs and tools

3шт.

K913667

BEARING

Main -(Upper) .030 in. Undersize, service parts, packs and tools

3шт.

K913666

NO LONGER SERVICED

Main Bearing--(Lower) .030 in. Undersize, service parts, packs and tools

3шт.

K908078

SPARE PART

Thrust Washer--(Upper) .005 in. Oversize, service parts, packs and tools

2шт.

K908079

NO LONGER SERVICED

Thrust Washer--(Lower) .005 in. Oversize, service parts, packs and tools

2шт.

K908080

SPARE PART

Thrust Washer--(Upper) .020 in. Oversize, service parts, packs and tools

2шт.

K908081

SPARE PART

Thrust Washer--(Lower) .020 in. Oversize, service parts, packs and tools

2шт.

K961038

BEARING

Main and Big End Pack (With Thrust Washers), Standard, service parts, packs and tools

1шт.

K961039

BEARING

Main and Big End Pack (Less Thrust Washers), .010 in. Undersize, service parts, packs and tools

1шт.

K961040

SPARE PART

Main and Big End Bearing Pack (Less Thrust Washers), .020 in. Undersize, service parts, packs and tools

1шт.

K908082

SPARE PART

Valve--Inlet .010 in. Oversize Stem, service parts, packs and tools

4шт.

K908083

NO LONGER SERVICED

Valve--Exhaust .010 in. Oversize Stem, service parts, packs and tools

4шт.

K915366

SPARE PART

Valve--Inlet .020 in. Oversize Stem, service parts, packs and tools

4шт.

K915365

NO LONGER SERVICED

Valve--Exhaust .020 in. Oversize Stem, service parts, packs and tools

4шт.

K961769

Ram Piston and Insert .020 in. Oversize, service parts, packs and tools

1шт.

K961000

GASKET KIT

Engine Pack, service parts, packs and tools

1шт.

K961001

GASKET KIT

Pack (Decarbonising), service parts, packs and tools

1шт.

K961004

KIT

Water Pump Repair Pack, service parts, packs and tools

1шт.

K961003

Hydraulic Pump, Valve Housing and Gear (Reconditioned), service parts, packs and tools

1шт.

K960595

PADDING

Brake Lining and Rivet Pack (Four Linings with Rivets), service parts, packs and tools

1шт.

K960998

NO LONGER SERVICED

Loctite Sealant c.c. bottle, service parts, packs and tools

10шт.

K961061

Molybdenum Disulphide lb. tin (453 gr.), service parts, packs and tools

1шт.

K961060

NO LONGER SERVICED

Molybdenum Disulphide oz. tube (57 gr.), service parts, packs and tools

2шт.

K914379

BOX, TOOL

From Tractor 476325, service parts, packs

1шт.

K66408

PIN

Linch and Ring From Tractor 476325, service parts, packs and tools

1шт.

K602903

SCREW

Setscrew, 3/8 UNC x 7/8 in. Toolbox to frame, From Tractor 476325, service parts, packs and tools

2шт.

K19472

WASHER

3/8 in. Toolbox to frame From Tractor 476325, service parts, packs and tools

2шт.

K19482

SPRING WASHER

Spring 3/8 in. Toolbox to frame, From Tractor 476325, service parts, packs and tools

2шт.

K627607

1 1/8 AF x 15/16 AF, service parts, packs and tools

1шт.

K627603

TOOL

Spanner, 3/4 AF x 5/8 AF, service parts, packs

1шт.

K627604

TOOL

Spanner, 9/16 AF x 1/2 AF, service parts, packs

1шт.

K627608

TOOL

Spanner, 7/16 AF x 5/16 AF, service parts, packs

1шт.

K64256

Grease Gun, service parts, packs and tools

1шт.

K627609

Box 15/16 AF x 3/4 AF, service parts, packs and tools

1шт.

K63474

Tommy , 5/8 dia. x 12 in., service parts, packs and tools

1шт.

K627610

TOOL

Box Spanner, 9/16 AF x 1/2 AF, service parts, packs and tools

1шт.

K19806

BAR

Tommy 5/16 dia. x 6 in., service parts, packs and tools

1шт.

K19803

service parts, packs and tools

1шт.

K39426

OPEN END WRENCH

Drain Plug, service parts, packs and tools

1шт.

K38618

WHEEL

Brace, service parts, packs and tools

1шт.

Выбрано товаров: 80
