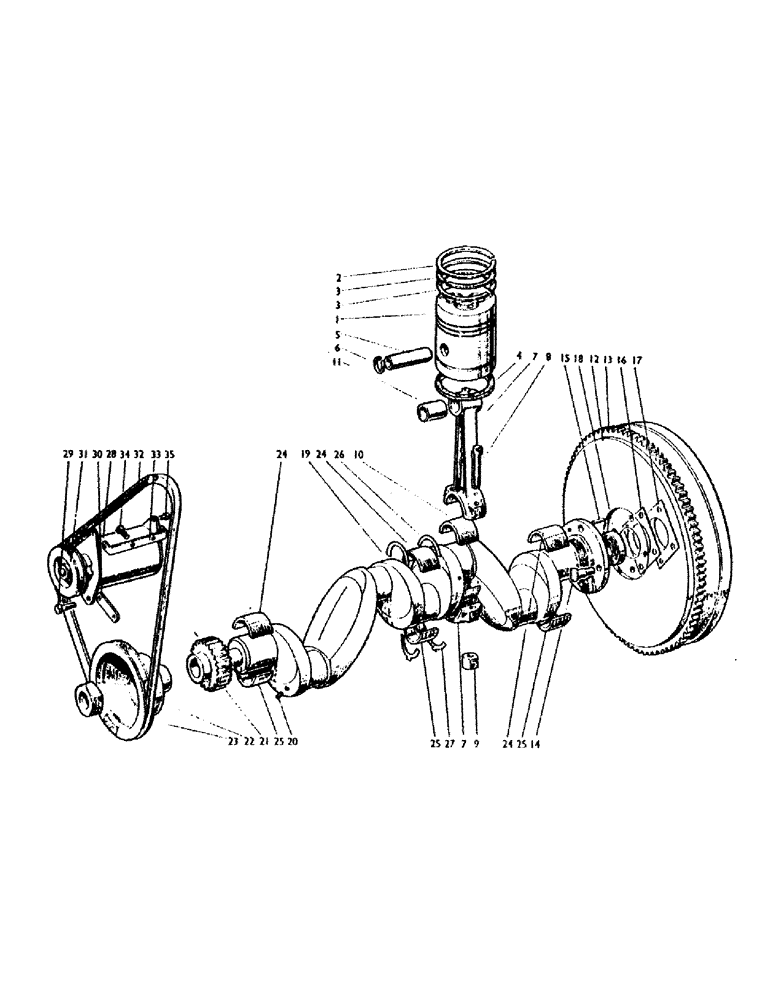

Запчасти Case IH 990B (06) - PISTONS, CONNECTING RODS, FLYWHEEL, AND CRANKSHAFT (01) - ENGINE

K902667

NO LONGER SERVICED

Piston and Gudgeon Pin Assembly

4шт.

1

K902668

Piston (Not supplied separately) 902667 Standard

1шт.

2

K64974

SPARE PART

Piston Ring--No. 1 Compression 902667 Standard

1шт.

3

K64975

RING, PISTON

Piston Ring--No. 2 and 3 Compression, 902667 Standard

2шт.

4

K83789

SCRAPER

Piston Ring--Scraper 902667 Standard

1шт.

5

K37023

PIN

Gudgeon Pin 902667 Standard

1шт.

6

K34501

RING, SNAP

Circlip 902667 Standard

2шт.

7

K63086

ROD

Connecting Rod and Cap Assembly Supersedes 961006

4шт.

8

K905198

BOLT

--Connecting Rod (Supersedes 901971), 63086

8шт.

9

K15135

NUT

Nyloc Nut, 7/16 BSF 63086

8шт.

10

K907414

HALF-BEARING, CRANKS

Bearing--Big End (Halves) Standard

8шт.

11

K31669

BEARING

--Small End

4шт.

K906673

FLYWHEEL

and Starter Ring Assembly Livedrive

1шт.

12

K906445

Flywheel (Not supplied separately) 906673

1шт.

K906670

FLYWHEEL

and Starter Ring Assembly Non-livedrive

1шт.

12

K906671

Flywheel (Not supplied separately) 906670

1шт.

13

K36134

GEAR

Starter Ring 906673 and 906670

1шт.

14

K903431

STEP BOLT

--Flywheel

4шт.

15

K10629

PIN

Dowel

1шт.

16

K903254

WASHER

Tab Washer

1шт.

K617003

NUT

7/16 UNF

4шт.

17

K903255

DISC

Locating Disc Livedrive only

1шт.

18

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

1шт.

19

K961007

CRANKSHAFT

(with Bearings and Thrust Washers)

1шт.

20

K606061

SCREW

Grub Screw, 7/16 UNC--Crankshaft Oilway

4шт.

21

K901989

NO LONGER SERVICED

Gear--Crankshaft

1шт.

22

K905230

PULLEY

--Crankshaft

1шт.

K19608

KEY

Woodruff No. 606

1шт.

K913369

RING

Flinger--Oil

1шт.

23

K623300

NUT

--Crankshaft

1шт.

K626403

WASHER

1шт.

24

K902037

BEARING HALF

Main Bearing--Upper Standard

3шт.

25

K902038

NO LONGER SERVICED

Main Bearing--Lower Standard

3шт.

26

K902023

NO LONGER SERVICED

Thrust Washer--Upper Standard

2шт.

27

K902024

NO LONGER SERVICED

Thrust Washer--Lower, Standard

2шт.

28

K908882

GENERATOR

Dynamo (Lucas C40A) (Replaces 35521)

1шт.

K961766

ALTERNATOR

Dynamo (Lucas C39P/2)

1шт.

K961267

CONNECTOR, ELEC

Female Connector (Lucar), 35 amp. Dynamo 908882 to Lead 907469

1шт.

K961269

INSULATOR

--35 amp. Connector Dynamo 908882 to Lead 907469

1шт.

K961266

ELEC CONNECTOR

Female Connector (Lucar), 14 amp. Dynamo 908882 to Lead 907469

1шт.

K961268

CONNECTOR,ELECTRIC

Insulator--14 amp. Connector Dynamo 908882 to Lead 907469

1шт.

29

280345

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

Setscrew, 5/16 UNC x 7/8 in. (Replaces 15397)

1шт.

K902420

NO LONGER SERVICED

Washer

1шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

1шт.

30

K902063

STRAP

Adjuster Strap

1шт.

K910610

BUSHING

Distance Piece--Adjuster Strap to Pressed Timing Cover

1шт.

31

K900757

PULLEY

--Dynamo

1шт.

K912757

NO LONGER SERVICED

Guard--Pulley

1шт.

32

K901111

BELT

V-BELT, Driving

1шт.

33

K912758

BRACKET

Support (Supersedes 902062)

1шт.

34

K602903

SCREW

Bolt, 3/8 UNC x 7/8 in., Serial Range: Bracket-block

2шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in., Serial Range: Bracket-block

2шт.

35

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

Setscrew, 5/16 UNC x 1 in.--Dynamo to Bracket

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

2шт.

K19481

SPRING WASHER

Washer, 5/16 in.

2шт.
