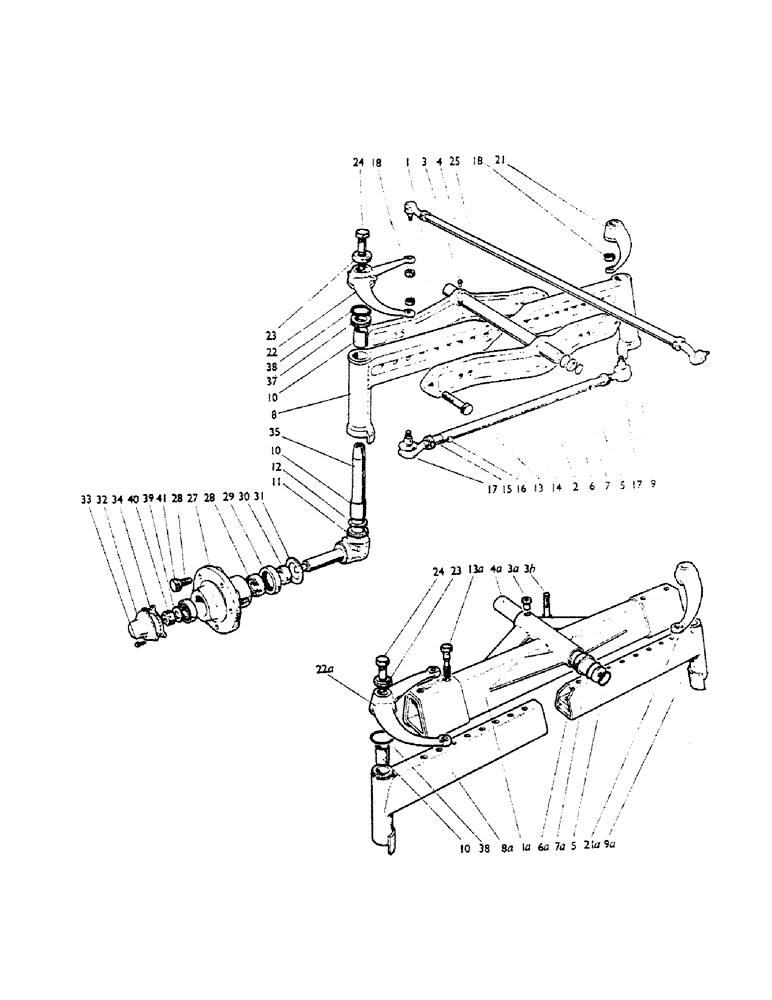

Запчасти Case IH 990B (58) - FRONT AXLE Steering & Front Axle

1

K906197

BEAM

Centre Beam--Front Forged Axle (To Tractor 455560)

1шт.

1a

K912712

SPARE PART

Centre Beam (Supersedes 907816), Fabricated Axle (From Tractor 455561)

1шт.

Introduced at Tractor 461111

1шт.

2

K906198

BEAM

Centre Beam--Rear Forged Axle (To Tractor 455560)

1шт.

3

K606863

SCREW

Bolt, Cap Hd. 3/8 UNC x 7/8 in. Forged Axle (To Tractor 455560)

1шт.

3a

K690250

BUSHING

Screwed Bush (Used with 907806), Fabricated Axle (From Tractor 455561)

1шт.

3a

K913092

NUT

Screwed Bush (Used with 913091), Fabricated Axle (From Tractor 455561)

1шт.

3b

K600505

BOLT

Special Bolt, 3/8 UNC x 2 3/4 in., Fabricated Axle (From Tractor 455561)

1шт.

7

K15619

SEAL

Dirt Excluder Forged Axle (To Tractor 455560)

2шт.

4

K906211

TRUNNION

Pin Forged Axle (To Tractor 455560)

1шт.

4a

K913091

PIN

Trunnion Pin (Supersedes 907806), Fabricated Axle (From Tractor 455561)

1шт.

5

K15596

RING,3.63mm Thk x 31.34mm ID

'O' Ring--Trunnion Pin Forged Axle (To Tractor 455560)

1шт.

6

K902719

WASHER

Thrust Washer, 15/64 in., Forged Axle (To Tractor 455560)

1шт.

6

K902720

X

Thrust Washer, 17/64 in., Forged Axle (To Tractor 455560)

1шт.

6

K902721

WASHER

Thrust Washer, 9/32 in., Forged Axle (To Tractor 455560)

1шт.

6

K86661

WASHER

Thrust Washer, 5/32 in., Forged Axle (To Tractor 455560)

1шт.

6

K86662

WASHER

Thrust Washer, 3/16 in., Forged Axle (To Tractor 455560)

1шт.

6

K86663

WASHER

Thrust Washer, 7/32 in., Forged Axle (To Tractor 455560)

1шт.

6

K86664

WASHER

Thrust Washer, 1/4 in., Forged Axle (To Tractor 455560)

2шт.

6a

K907824

SLEEVE

Trunnion Thrust Sleeve, Fabricated Axle (From Tractor 455561)

2шт.

7a

K15265

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

Sealing Ring, Fabricated Axle (From Tractor 455561)

2шт.

8

K961014

SHAFT

Beam Extension, L.H. (with Bushes and Seal Retainer), Forged Axle (To Tractor 455560)

1шт.

8a

K961230

BEAM

Extension, L.H. With Bushes, Fabricated Axle (From Tractor 455561)

1шт.

9

K961013

BEAM

Extension, R.H. (with Bushes and Seal Retainer), Forged Axle (To Tractor 455560)

1шт.

9a

K961231

BEAM

Extension, R.H. With Bushes, Fabricated Axle (From Tractor 455561)

1шт.

K627889

SEAL

Plastic Plug, Fabricated Axle (From Tractor 455561)

6шт.

10

K11598

BUSHING

Bush--Stub Axle Standard

4шт.

10

K14411

HALF-BUSHING

Bush--Stub Axle (.020 in. Undersize), Also suitable for earlier models

1шт.

10

K14412

HALF-BUSHING

Bush--Stub Axle (.040 in. Undersize), Also suitable for earlier models

1шт.

11

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

Sealing Ring--Stub Axle

2шт.

12

K33682

WASHER,35.24mm ID x 55.56mm OD x 4.78mm Thk

Thrust Washer--Stub Axle

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

13

K601417

BOLT

3/4 UNC x 4 3/4 in.

4шт.

K607007

NUT

3/4 UNC

4шт.

K19486

WASHER, LOCK

Spring Washer, 3/4 in.

4шт.

13a

K601308

BOLT

Special Bolt, 3/4 UNC x 3 1/8 in, Fabricated Axle (From Tractor 455561)

4шт.

14

K906209

BUSHING

Spacer Tube--Track Rods (Used with 907816)

1шт.

K912708

BUSHING

Spacer Tube (Used with 912712)

1шт.

15

K906210

ROD

Track Rod (Used with 907816)

2шт.

15

K912709

ROD

Track Rod (Used with 912712)

2шт.

16

K600316

BOLT

5/16 UNC x 2 1/4 in.

2шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

2шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 UNC

2шт.

17

K908071

BALL JOINT

Ball Socket Assembly (Supersedes 905631-2)

2шт.

K19530

PIN

Split Pin, 3/32 x 1 in.

2шт.

21

K906205

SPARE PART

Steering Lever, R.H. Forged Axle (To Tractor 455560)

1шт.

21a

K908614

Steering Lever, R.H. (Keyed), Fabricated Axle (From Tractor 455561)

1шт.

To Tractor 468894

1шт.

21a

K912085

LEVER

Steering Lever, R.H. (Splined)

1шт.

From Tractor 468895

1шт.

22

K906204

LEVER

Steering Lever, L.H. Forged Axle (To Tractor 455560)

1шт.

22

K907202

KIT

Steering Lever, L.H. (Power Steering Only), Forged Axle (To Tractor 455560)

1шт.

K622316

KEY

Parallel Key (Replaces 15592)

2шт.

To Tractor 468894

1шт.

22a

K908613

Steering Lever, L.H. (Keyed), Fabricated Axle (From Tractor 455561)

1шт.

To Tractor 468894

1шт.

22a

K910772

SPARE PART

Steering Lever, L.H. (Keyed), Fabricated Axle--Power Steering only (From Tractor 455561)

1шт.

To Tractor 468894

1шт.

22a

K912084

LEVER

Steering Lever, L.H. (Splined)

1шт.

From Tractor 468895

1шт.

22a

K913924

LEVER

Steering Lever, L.H. (Splined)--Power Steering only

1шт.

From Tractor 468895

1шт.

23

K15595

WASHER

Special Washer

2шт.

24

K601210

BOLT (SPREADER)

Bolt, 5/8 UNC x 2 3/4 in.

2шт.

K19485

WASHER

Spring Washer, 5/8 in.

2шт.

25

K905625

Drag Link Assembly

1шт.

To Tractor 456232

1шт.

25

K912076

LINK

Drag Link Assembly (Supersedes 909032)

1шт.

From Tractor 456233

1шт.

K901646

DRAG LINK

905625 912076

1шт.

To Tractor 456232

1шт.

K909033

DRAG LINK

905625 912076

1шт.

From Tractor 456233

1шт.

K908071

BALL JOINT

Ball Socket Assembly (Supersedes 905631), 905625 912076

2шт.

18

K617104

NUT

Slotted Nut, 1/2 UNF 903071 905625 912076

2шт.

K622500

LOCK NUT

Locknut 903071 905625 912076

2шт.

K961701

BOOT

Dirt Excluder 905625 912076

1шт.

25

K907293

Drag Link Assembly (Power Steering only)

1шт.

25

K903411

Drag Link Assembly (for Wheels 905277)

1шт.

27

K910176

HUB

Front Hub (Supersedes 907800) Six-bolt wheel

2шт.

27

K906557

HUB

Front Hub Five-bolt wheel

2шт.

28

K620046

BEARING

Taper Roller Bearing

4шт.

29

K15638

NO LONGER SERVICED

Oil Seal

2шт.

30

K906569

SLEEVE

Oil Seal Sleeve 960966

2шт.

31

K906568

RING

Dirt Excluder 960966

2шт.

32

K908913

CAP

Hub Cap (Supersedes 15610)

2шт.

33

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Setscrew, 5/16 UNC X 5/8 in.

6шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in.

6шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

2шт.

34

K15344

GASKET,0.25mm Thk

--Hub Cap

2шт.

35

K960966

SHAFT

Stub Axle Assembly (with Sleeve and Dirt Excluder), Supersedes 906222

2шт.

To Tractor 468894

1шт.

35

K961725

SHAFT

Stub Axle Assembly (with Sleeve and Dirt Excluder)

2шт.

From Tractor 468895

1шт.

37

K906059

SEAL

Retainer--Top (Forged Axle)

2шт.

38

K15594

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

Sealing Ring

2шт.

39

K626673

WASHER

Special Washer

2шт.

40

K617157

NUT

Slotted Nut, 3/4 UNF (Replaces 617107)

2шт.

K623603

PIN

Split Pin, 11/64 x 1 1/8 in. (Replaces 19541)

2шт.

41

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

Wheel Bolt, 1/2 UNC x 1 in. Six-bolt fixing

12шт.

41

K16228

Wheel Bolt, 5/8 BSF x 1 1/8 in. Five-bolt fixing

10шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in., Fabricated Axle (From Tractor 455561)

1шт.
