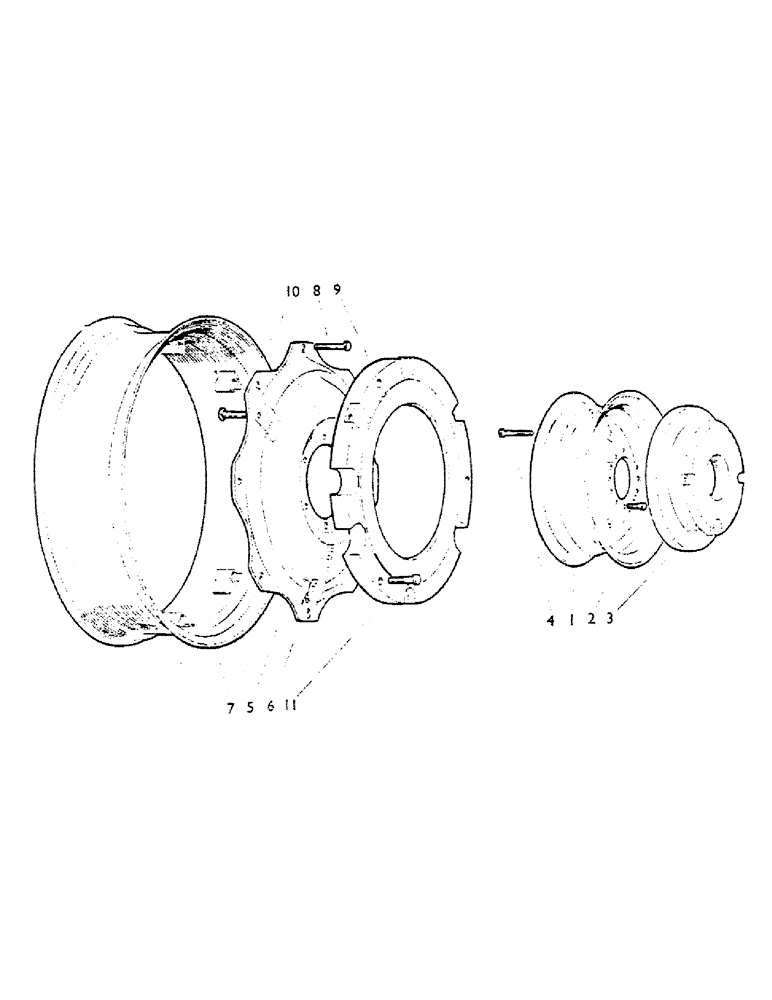

Запчасти Case IH 990B (56) - FRONT WHEELS Steering & Front Axle

1

K907803

NO LONGER SERVICED

Front Wheel, 4.50E x 16 in. (Fits 6.00 x 16 in. tyres), Six-bolt fixing

2шт.

1

K907805

SPARE PART

Front Wheel, 5.50F x 16 in. (Fits 7.50 x 16 in. tyres), Six-bolt fixing

2шт.

1

K907858

SPARE PART

Front Wheel, 3.62 x 19 in. (Fits 6.00 x 19 in. tyres), Six-bolt fixing

2шт.

1

K86145

Front Wheel, 4.00E x 16 in. (Fits 6.00 x 16 in. tyres), Five-bolt fixing

2шт.

1

K905277

SPARE PART

Front Wheel, 5.50F x 16 in. (Fits 7.50 x 16 in. tyres), Five-bolt fixing

2шт.

1

K907493

Front Wheel, 3.62 x 19 in. (Fits 6.00 x 19 in. tyres), Five-bolt fixing

2шт.

2

K907400

WHEEL BOLT,1/2" - 13 x 1 1/8"

Wheel Bolt, 1/2 UNC x 1 in. Six-bolt fixing

12шт.

2

K16228

Wheel Bolt, 5/8 BSF x 1 1/8 in. Five-bolt fixing

10шт.

3

K909316

WEIGHT

Ballast Weight (Replaces 907893), U427 (907796) For Wheels 907803 and 907858

4шт.

4

K600829

BOLT

1/2 UNC x 6 3/4 in. (Replaces and 600827), U427 (907796) For Wheels 907803 and 907858

8шт.

K19484

LOCK WASHER

Spring Washer, 1/2 in., U427 (907796) For Wheels 907803 and 907858

8шт.

K607004

NUT

1/2 UNC, U427 (907796) For Wheels 907803 and 907858

8шт.

3

K909316

WEIGHT

Ballast Weight U475 (909326) For Wheels 907805

4шт.

K909324

BUSHING

Spacer Tube U475 (909326) For Wheels 907805

8шт.

4

K600831

BOLT

1/2 UNC x 7 1/2 in. U475 (909326) For Wheels 907805

8шт.

K19484

LOCK WASHER

Spring Washer, 1/2 in. U475 (909326) For Wheels 907805

8шт.

K607004

NUT

1/2 UNC U475 (909326) For Wheels 907805

8шт.

3

K907006

Ballast Weight U375 (906985) For Five-bolt Wheels

2шт.

4

K600810

BOLT

1/2 UNC x 2 1/2 in. U375 (906985) For Five-bolt Wheels

8шт.

K19484

LOCK WASHER

Spring Washer, 1/2 in. U375 (906985) For Five-bolt Wheels

8шт.

K607004

NUT

1/2 UNC, U375 (906985) For Five-bolt Wheels

8шт.

5

K901851

Rear Rim and Centre Assembly, W10 x 32 in. (Fits 11 x 32 in. tyres)

2шт.

6

K901853

DISC, WHEEL

Rear Wheel Centre 901851

1шт.

7

K901852

WHEEL

Rear Wheel Rim 901851

1шт.

8

K611261

BOLT

Rim Bolt, 5/8 UNF (Replaces 621003) 901851

8шт.

K19475

WASHER

5/8 in. (Replaces 19485) 901851

8шт.

425-1110

NUT,5/8"-18, G5

(Replaces 19406) 901851 5/8"-18, G5

8шт.

5

K910861

Rear Rim and Centre Assembly, W10 x 36 in. (Fits 11 x 36 in. tyres) (Replaces 900329)

2шт.

6

K910862

SPARE PART

Rear Wheel Centre (Replaces 89742) 910861

1шт.

7

K89741

Rear Wheel Rim 910861

1шт.

8

K615727

BOLT

Rim Bolt, 5/8 UNF x 2 3/4 in. (Replaces 11541), 910861

4шт.

425-1110

NUT,5/8"-18, G5

(Replaces 19406) 910861 5/8"-18, G5

4шт.

K19485

WASHER

Spring Washer, 5/8 in. 910861

4шт.

5

K903268

Twin Rear Wheels and Centre Assembly, 10 x 32 in. (Fits 11 x 32 in. tyres)

2шт.

6

K903267

Rear Wheel Centre--Inner 903268

1шт.

6

K903266

Rear Wheel Centre--Outer 903268

1шт.

7

K901852

WHEEL

Rear Wheel Rim 903268

2шт.

8

K611261

BOLT

Rim Bolt, 5/8 UNF (Replaces 621003) 903268

16шт.

K19475

WASHER

5/8 in. (Replaces 19485) 903268

16шт.

425-1110

NUT,5/8"-18, G5

(Replaces 19406) 903268 5/8"-18, G5

16шт.

K19312

Bolt, 5/8 BSF x 3 3/4 in.--Wheels to Final Drive Shaft, 903268

6шт.

K19485

WASHER

Spring Washer, 5/8 in. 903268

6шт.

K903264

SPARE PART

Special Nut, 5/8 BSF 903268

6шт.

5

K87297

SPARE PART

Rear Rim and Centre Assembly, W11 x 28 in. (Fits 13 x 28 in. tyres)

2шт.

6

K86283

SPARE PART

Rear Wheel Centre 87297

1шт.

7

K67980

WHEEL

Rear Wheel Rim 87297

1шт.

8

K611261

BOLT

Rim Bolt, 5/8 UNF (Replaces 15471) 87297

6шт.

K19475

WASHER

5/8 in. (Replaces 19485) 87297

6шт.

425-1110

NUT,5/8"-18, G5

(Replaces 19406) 87297 5/8"-18, G5

6шт.

5

K902802

RIM

Rear Rim and Centre Assembly, DW12 x 30 in. (Fits 14 x 30 in. tyres)

2шт.

6

K86283

SPARE PART

Rear Wheel Centre 902802

1шт.

7

K902160

NO LONGER SERVICED

Rear Wheel Rim 902802

1шт.

8

K611261

BOLT

Rim Bolt, 5/8 UNF (Replaces 15471) 902802

6шт.

K19475

WASHER

5/8 in. (Replaces 19485) 902802

6шт.

425-1110

NUT,5/8"-18, G5

(Replaces 19406) 902802 5/8"-18, G5

6шт.

9

K86167

WEIGHT

Ballast Weight U184 (21180) For Wheels 901851

4шт.

10

K690452

BOLT

Carriage Bolt, 5/8 BSF U184 (21180) For Wheels 901851

6шт.

K19406

WHEEL NUT

5/8 BSF U184 (21180) For Wheels 901851

6шт.

K19485

WASHER

Spring Washer, 5/8 in. U184 (21180) For Wheels 901851

6шт.

K910181

BUSHING

Distance Piece U184 (21180) For Wheels 901851

6шт.

11

K19305

BOLT

5/8 BSF x 2 in. Weight to weight, U184 (21180) For Wheels 901851

6шт.

K19485

WASHER

Spring Washer, 5/8 in. Weight to weight, U184 (21180) For Wheels 901851

6шт.

9

K908766

Ballast Weight, U406 (907207) For Wheels 87297 and 902802

4шт.

K908772

Special Stud, 5/8 UNF x 4 7/8 in., U406 (907207) For Wheels 87297 and 902802

6шт.
