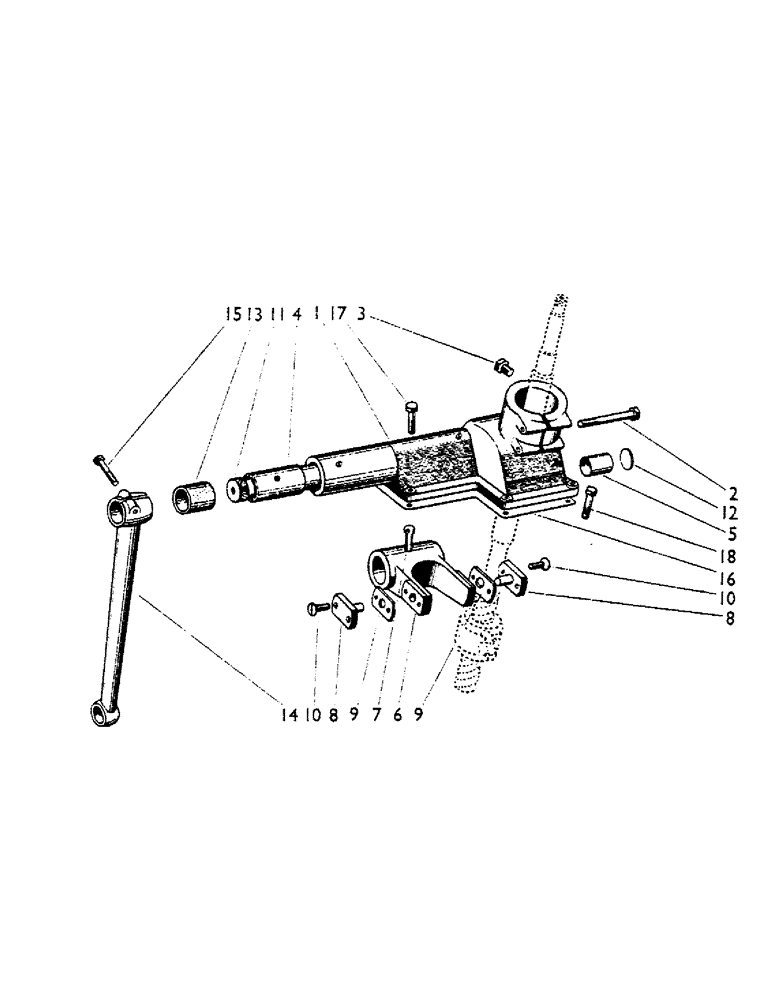

Запчасти Case IH 990B (47) - STEERING BOX AND DROP ARM Steering & Front Axle

1

K912296

BOX

Steering Box (Supersedes 905645)

1шт.

2

K600444

Bolt, 3/8 UNC x 3 1/4 in. (Replaces 600417)

2шт.

280136

NUT,3/8"-16, G8

(Replaces 607002) 3/8"-16, G8

2шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

2шт.

3

K606401

SCREW

Grubscrew, 3/8 UNC (Replaces 606400)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

3шт.

4

K16561

BUSHING

Bush--Long Drop Arm Shaft

2шт.

5

K16560

SPARE PART

Bush--Short Drop Arm Shaft

1шт.

6

K905646

NO LONGER SERVICED

Rocker Arm

1шт.

7

K26232

PIN

Split Pin, 3/16 x 2 1/4 in.

1шт.

8

K900944

BALL

Peg

2шт.

9

K900945

GASKET

Shim Set, .003"

2шт.

10

K604004

SCREW

C'sk. Head, 1/4 UNC x 5/8 in.

4шт.

11

K902673

ARM

Drop Arm Shaft

1шт.

9

K900946

SHIM,.005" Thk

2шт.

12

K10050

PLUG

Welch Plug

1шт.

9

K900947

GASKET

Shim Set, .007"

2шт.

13

K86963

LARGE HOSE

Dust Shield--Drop Arm Shaft

1шт.

9

K900948

SHIM,.010" Thk

Set .010" Thk

2шт.

14

K901140

ARM

Drop Arm

1шт.

15

K600412

BOLT

3/8 UNC x 2 1/2 in. Drop, Serial Range: arm-shaft

1шт.

280136

NUT,3/8"-16, G8

Drop arm to shaft 3/8"-16, G8

1шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in. Drop, Serial Range: arm-shaft

1шт.

16

K89395

GASKET

--Steering Box Steering box to gearbox cover

1шт.

17

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Steering box to gearbox cover Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in. Steering box to gearbox cover

6шт.

18

K600403

BOLT

3/8 UNC x 1 3/8 in. Steering box to gearbox cover

4шт.
