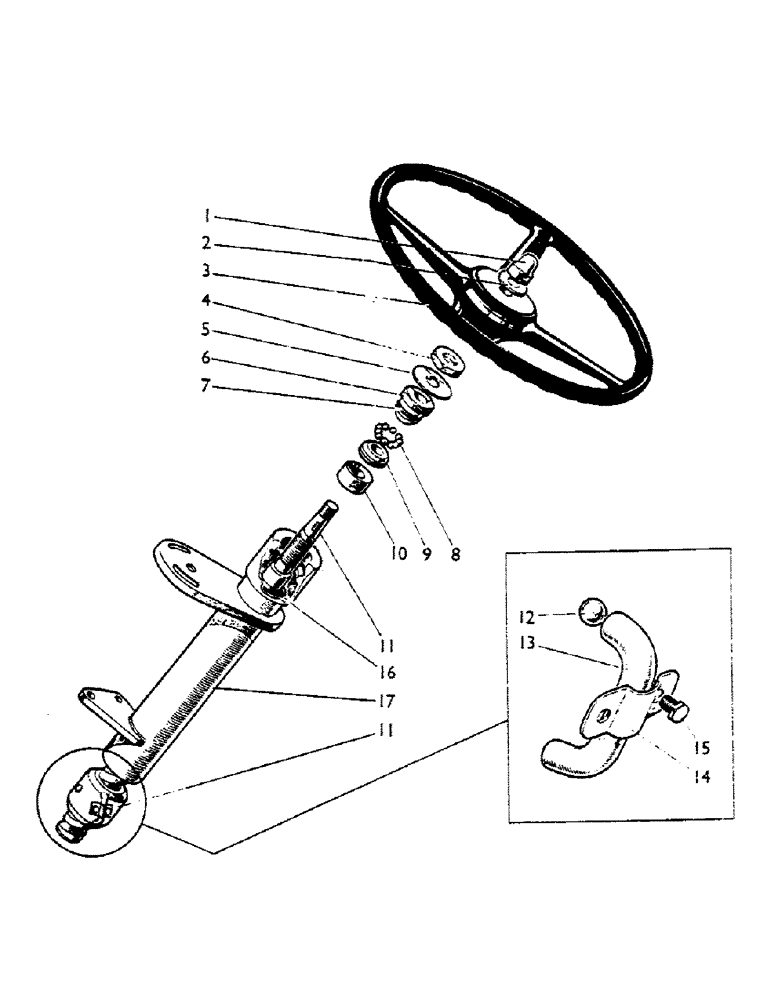

Запчасти Case IH 990B (46) - STEERING WHEEL AND COLUMN Steering & Front Axle

1

K905679

NUT

Domed Nut

1шт.

2

K626671

WASHER

Special Flat Washer

1шт.

3

K83746

WHEEL

Steering Wheel

1шт.

K19608

KEY

Woodruff Key, No. 606

1шт.

K910163

STEERING COLUMN

Assembly (Supersedes 905630)

1шт.

4

K903467

NUT

Locknut 910163

1шт.

5

K905189

WASHER

Tab Washer 910163

1шт.

6

K903463

BEARING CONE

Adjustable Bearing Cone 910163

1шт.

7

K903468

O-RING,0.156" Thk x 1.234" ID, 75 Duro

O Ring 910163

1шт.

8

K13506

BALL

3/8 in. dia. 910163

12шт.

9

K903462

SPHERICAL BEARING

Lower Bearing 910163

1шт.

10

K903461

SPACER

Spherical Seating 910163

1шт.

11

K906765

STEERING COLUMN

Steering Screw and Nut 910163

1шт.

K961672

NUT

Steering Nut 906765 910163

1шт.

12

K11286

BALL

Steel Ball, 5/16 in. dia. 906765 910163

28шт.

13

K960990

TUBE NUT

Transfer Tube (Halves) 906765 910163

1шт.

14

K960991

RETAINER

Clip--Transfer Tube 906765 910163

1шт.

15

K960992

BOLT

Special Bolt 906765 910163

2шт.

16

K903469

PAD, RUBBER

Rubber Baffle 910163

1шт.

17

K910164

Column Support (Supersedes 906005) 910163

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , 910163 1/4"-28 NPT x .54" lg

1шт.
