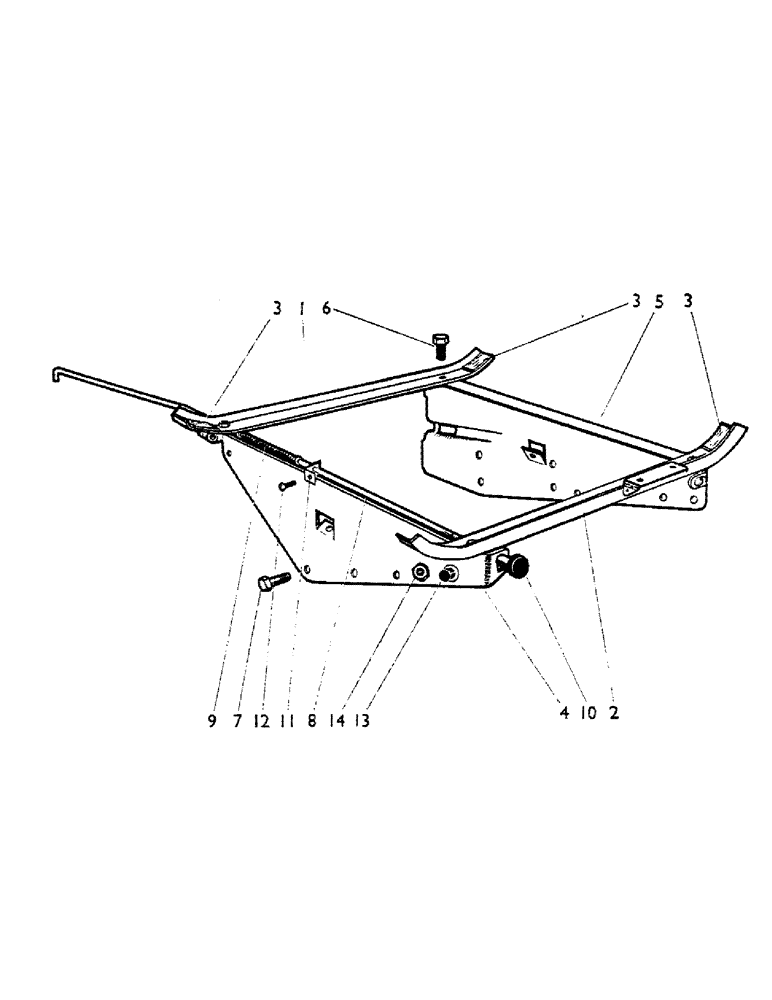

Запчасти Case IH 990B (45) - FUEL TANK SUPPORT AND ENGINE CONTROLS Engine Controls & Instruments

1

K89448

Support--Fuel Tank (Front)

1шт.

2

K903509

Support--Fuel Tank (Rear) To Tractor 444552

1шт.

2

K908821

Support--Fuel Tank (Rear) From Tractor 444553

1шт.

3

K89449

PAD

Tank Seating Pad

4шт.

4

K907478

NO LONGER SERVICED

Support Bracket, L.H.

1шт.

5

K89453

SPARE PART

Support Bracket--R.H. To Tractor 461119

1шт.

5

K909943

Support Bracket, R.H. From Tractor 461120

1шт.

6

K602702

SCREW

Setscrew, 1/4 UNC x 5/8 in. Tank support to bracket, Replaces 602701

4шт.

K607000

NUT

1/4 UNC Tank, Serial Range: support-bracket

4шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in. Tank, Serial Range: support-bracket

4шт.

K19470

WASHER

1/4 in. Tank, Serial Range: support-bracket

4шт.

7

K602902

SCREW

Setscrew, 3/8 UNC x 3/4 in.

4шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

4шт.

8

K908504

ROD

Engine Stop Rod (Replaces 908221)

1шт.

9

K24780

SPRING

--Stop Rod

1шт.

10

K910720

HANDLE

Knob--Engine Stop (Replaces 908294)

1шт.

K11109

NUT

2 BA

1шт.

K12939

WASHER

1шт.

K19496

WASHER

3/16 in.

3шт.

K19520

PIN

Split Pin, 1/16 x 3/8 in.

3шт.

11

K88068

Support Bracket

1шт.

12

K614984

SCREW

Slotted Pan Hd., No. 10 UNF x 1/2 in.

1шт.

120614

NUT,Hex, #10 - 32

Nut, No. 10 UNF

1шт.

K19488

SPRING WASHER

Spring Washer. 3/16 in.

1шт.

13

K19903

IGNITION SWITCH

Starter Button To Tractor 463764

1шт.

14

K68534

STARTING MOTOR

Isolating Switch To Tractor 463764

1шт.

K88614

KEY

To Tractor 463764

2шт.

13

K912384

IGNITION SWITCH

Ignition and Starter Switch From Tractor 463765

1шт.

K912417

KEY

From Tractor 463765

2шт.

K912408

NUT

From Tractor 463765

1шт.
