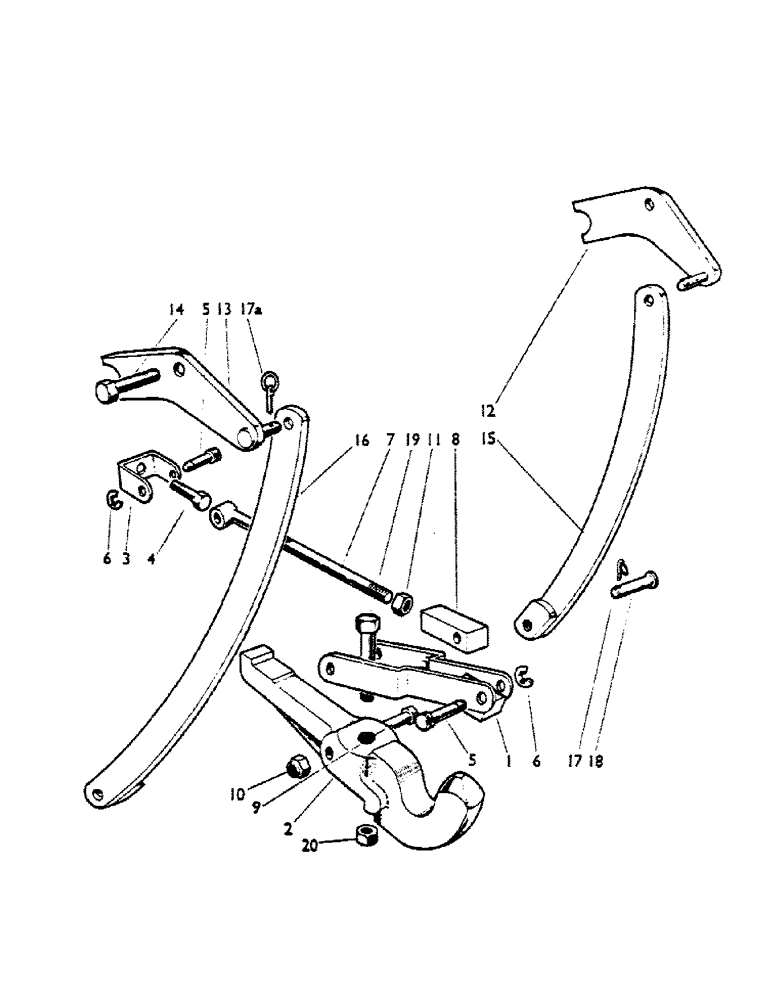

Запчасти Case IH 990B (73) - PICK-UP HITCH, U385, TO TRACTOR 476324 Drawbars & Hitches

1

K904494

Locking Jaw

1шт.

2

K904887

HOOK

Towing Hook

1шт.

3

K904500

Bracket--Adjusting Link

1шт.

4

K600608

BOLT

7/16 UNC x 2 1/4 in.

1шт.

K19483

SPRING WASHER

Spring Washer

1шт.

5

K904505

Clevis Pin

2шт.

6

K38632

SPRING

Clip

2шт.

7

K904501

Adjusting Link

1шт.

8

K904502

Block--Adjusting Link

1шт.

9

K600818

BOLT (SPREADER)

Bolt, 1/2 UNC x 4 in.--Locking Jaw (Supersedes 904503)

1шт.

10

K607304

NUT

Nyloc Nut, 1/2 UNC (Replaces Circlip 11302)

2шт.

11

K19445

NUT

Locknut, 5/8 BSF

1шт.

12

K908415

ARM

Lift Arm, R.H. (Supersedes 904496)

1шт.

13

K908414

ARM

Lift Arm, L.H. (Supersedes 904497)

1шт.

14

K601416

BOLT

3/4 UNC x 4 1/2 in.

2шт.

15

K907125

Lift Rod, R.H.

1шт.

16

K907126

Lift Rod, L.H.

1шт.

17

K900139

PIN

Linch Pin and Ring

2шт.

17a

K66408

PIN

Linch Pin and Ring

2шт.

18

K903936

Selector Pin

2шт.

19

K601611

BOLT

7/8 UNC x 3 3/4 in.

1шт.

20

K607308

NUT

Nyloc Nut, 7/8 UNC

1шт.
