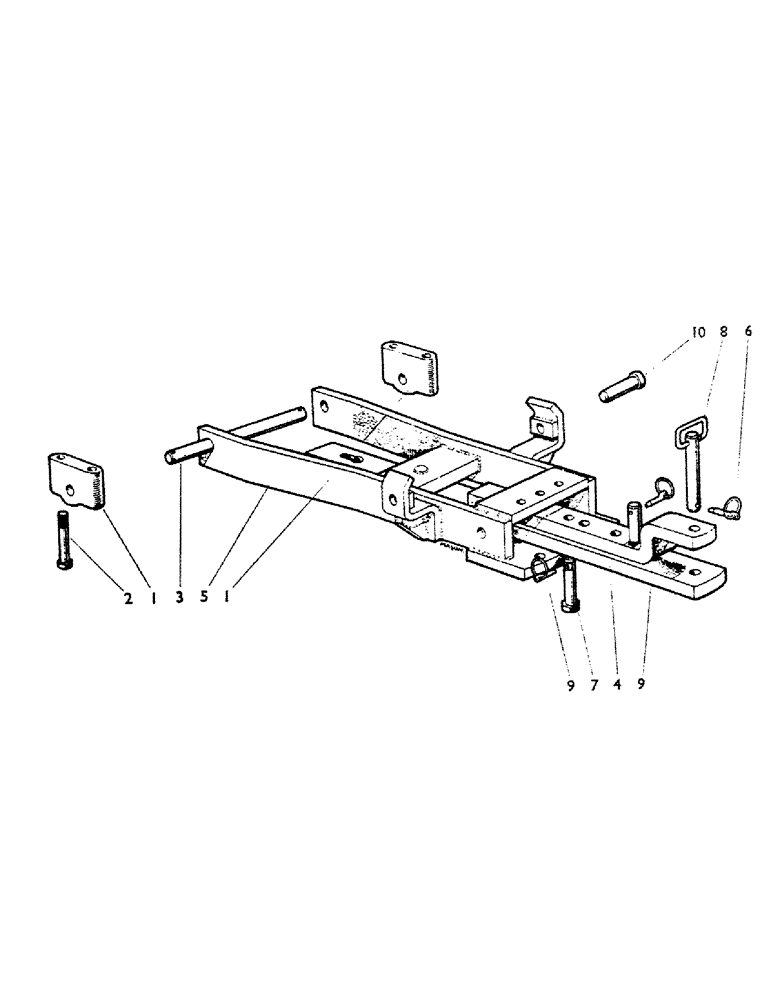

Запчасти Case IH 990B (60) - UNIVERSAL DRAWBAR Drawbars & Hitches

1

K903969

Hinge Bracket U463 (908878) (To Tractor 476324)

2шт.

2

K601215

BOLT

5/8 UNC x 3 3/4 in. U463 (908878) (To Tractor 476324)

4шт.

K621381

WASHER

Tab Washer (Replaces 12994) U463 (908878) (To Tractor 476324)

2шт.

3

K903935

Hinge Bar U463 (908878) (To Tractor 476324)

1шт.

K19558

PIN

Split Pin, 1/4 x 1 1/2 in. U463 (908878) (To Tractor 476324)

2шт.

5

K912519

Drawbar Support (Supersedes 904491) U463 (908878) (To Tractor 476324)

1шт.

280954

NUT,3/4"-10, G5

3/4 UNC U463 (908878) (To Tractor 476324)

2шт.

K19486

WASHER, LOCK

Spring Washer, 3/4 in. U463 (908878) (To Tractor 476324)

2шт.

4

K910423

DRAWBAR

(Supersedes 903937) U373 (906983) (To Tractor 476324)

1шт.

6

K62995

NO LONGER SERVICED

Linch Pin and Ring U373 (906983) (To Tractor 476324)

1шт.

7

K903940

STOP

Lateral Stop Pin U373 (906983) (To Tractor 476324)

1шт.

8

K901782

HITCH PIN

--Drawbar U373 (906983) (To Tractor 476324)

1шт.

9

K900139

PIN

Linch Pin and Ring U373 (906983) (To Tractor 476324)

2шт.

10

K908290

STEP BOLT

Special Bolt U463 (908878) (To Tractor 476324)

2шт.

K961702

PLATE

Conversion Plate (for fitting, Serial Range: 910423-904491)

1шт.
