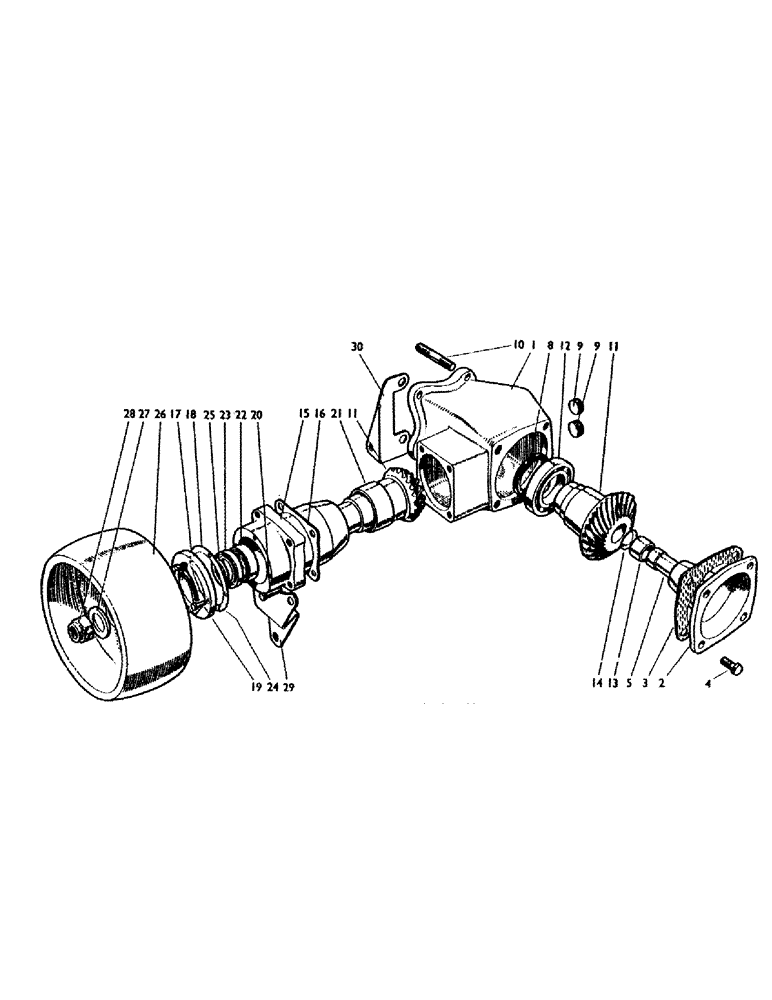

Запчасти Case IH 990B (38) - BELT PULLEY, U413, BELT PULLEY, U440 Auxiliary Drive Units

1

K907533

NO LONGER SERVICED

Housing--Belt Pulley

1шт.

2

K910082

COVER ASSY

End Cover (with Bearing Pin) (Supersedes 907534)

1шт.

3

K907541

JOINT

Gasket

1шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

4шт.

5

K909718

PIN

Bearing Pin (Supplied with End Cover only), Supersedes 907535

1шт.

K626676

WASHER

--Special Not required with 909718

1шт.

K607304

NUT

Nyloc Nut, 1/2 UNC Not required with 909718

1шт.

8

K16725

SEAL

Oil Seal

1шт.

9

K14518

PLUG

Taper Plug, 3/4 BSP

2шт.

10

K907546

STUD

--Special

4шт.

280717

NUT,7/16"-14, G5

(Replaces 607003) 7/16"-14, G5

4шт.

K626344

WASHER, LOCK

Spring Washer, 7/16 in. (Replaces 19483)

4шт.

11

K961037

Bevel Pinion and Wheel (Not supplied separately)

1шт.

12

K620036

BEARING

Ball Bearing

1шт.

13

K620047

ROLLER

Needle Roller Bearing

1шт.

14

K907520

NO LONGER SERVICED

Welch Plug

1шт.

15

K905956

Bearing Housing

1шт.

16

K89201

SHIM,.003" Thk

(2 Nominal) .003" Thk

1шт.

16

K89202

SHIM,.005" Thk

(2 Nominal) .005" Thk

1шт.

16

K89203

SHIM,.007" Thk

(2 Nominal) .007" Thk

1шт.

17

K89205

BEARING

Retainer

1шт.

18

K89206

JOINT

Paper Gasket

1шт.

19

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

Setscrew, 5/16 UNC x 1 in. Bearing retainer to bearing housing

4шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in. to Bearing retainer to bearing housing

4шт.

20

K603006

SCREW

Setscrew, 7/16 UNC x 1 3/8 in. Bearing housing to belt pulley housing

4шт.

K19483

SPRING WASHER

Spring Washer, 7/16 in. Bearing housing to belt pulley housing

4шт.

21

K19166

NEEDLE

Roller Bearing

1шт.

22

K19165

BALL

Bearing

1шт.

23

K19055

ROLLER

Bearing

1шт.

24

K13709

SEAL

Oil Seal

1шт.

26

K914944

BELT

Pulley, 5 11/16 in. wide x 8, U413 (907602) 1/2 in. dia. (Supersedes 63816)

1шт.

26

K908588

BELT

Pulley, 8 in. wide x 8 1/2 in., U440 (908300) dia. (Supersedes 903009)

1шт.

27

K19493

WASHER

--Special

1шт.

28

K617317

NUT

Nyloc Nut, 3/4 UNF

1шт.

K912778

COVER

--Pulley Nut

1шт.

K603925

SCREW,Pan, 1/4" - 20 x 5/8"

1/4 UNC x 5/8 in.

3шт.

K19480

SPRING WASHER

Spring Washer, 1/4 in.

3шт.

K907814

Guard--Belt Pulley U414 (907847)

1шт.

29

K907856

SUPPORT

Bracket U414 (907847)

1шт.

30

K907815

SUPPORT

Bracket U414 (907847)

1шт.

K602902

SCREW

Setscrew, 3/8 UNC x 3/4 in. U414 (907847)

2шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in. U414 (907847)

2шт.

K19472

WASHER

3/8 in. U414 (907847)

2шт.
