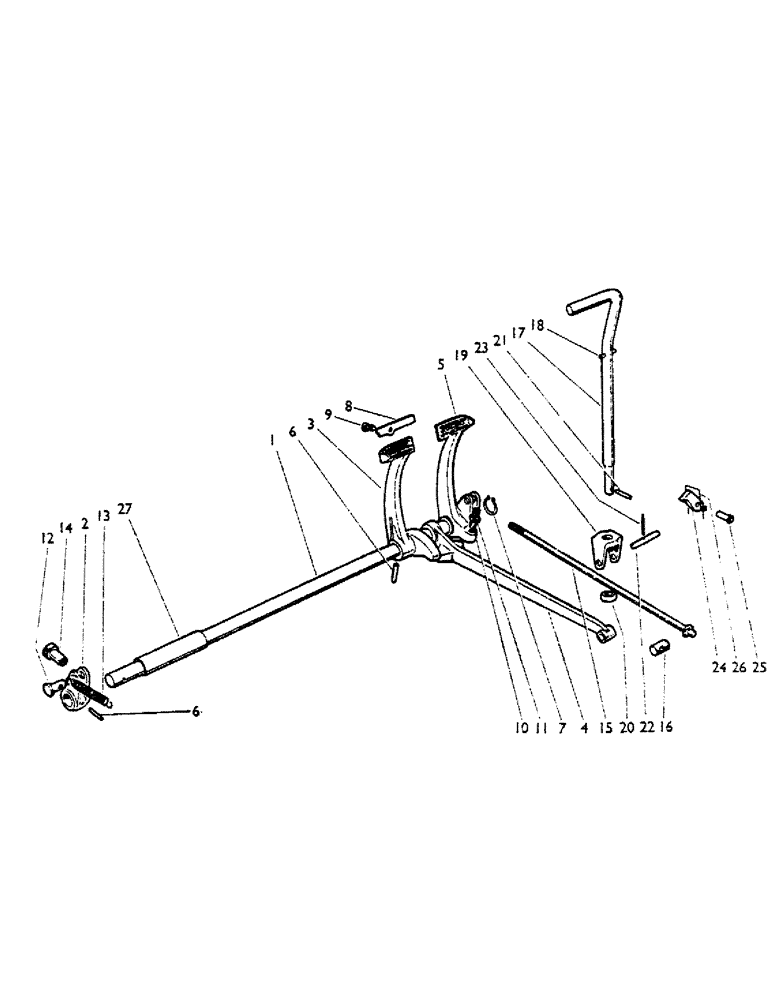

Запчасти Case IH 990A (42) - BRAKE CONTROLS (5.1) - BRAKES

1

K904354

SHAFT

Cross Shaft

1шт.

2

K903139

LEVER

--Brake

1шт.

3

K904330

NO LONGER SERVICED

Brake Pedal--L.H

1шт.

4

K904331

Operating Lever--Hand Brake

1шт.

5

K904329

BRAKE

Pedal--R.H.

1шт.

K30884

SHIM

Nominal

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , ANF 1/4"-28 NPT x .54" lg

1шт.

6

K623732

PIN

Mills Pin, 3/8 x 2 in.

3шт.

7

K11129

RING, SNAP

Circlip, 1 1/4 in. ext.

1шт.

8

K38656

PLATE

Locking Plate--Pedal

1шт.

9

K600500

SCREW

Special Bolt, 3/8 UNC

1шт.

K626700

WASHER

Double Coil Spring Washer

1шт.

10

K606170

SCREW

Grub Screw, 7/16 UNC

1шт.

11

425-147

JAM NUT,Jam, 7/16"-14, G5

Locknut, 7/16 UNC

1шт.

12

K38639

PIN

2шт.

13

K14809

SPRING

Return Spring

2шт.

14

K607504

NUT

Adjusting Nut

2шт.

280136

NUT,3/8"-16, G8

2шт.

15

K904362

NO LONGER SERVICED

Brake Rod

2шт.

16

K14744

PIN

Lever Pin

2шт.

17

K903027

LEVER

Hand Lever

1шт.

18

K13145

Spring Dowel Pin, 3/8 x 1 1/2 in. (Replaces 12328)

1шт.

19

K65773

Fork

1шт.

20

K65784

WASHER

Spherical Washer

1шт.

21

K623895

PIN

Spring Dowel Pin, 5/16 x 2 in. (Replaces 12767)

1шт.

22

K904356

PIN

--Fork

1шт.

23

K623940

PIN

Spring Pin, 5/32 x 1 in.

1шт.

24

K65786

PAWL

1шт.

25

K900010

PAWL

Pin--Pawl

1шт.

26

K65787

SPRING

--Pawl

1шт.

K621585

RING, SNAP

Circlip

2шт.

27

K904355

TUBE

Distance Tube To Tractor 452675

1шт.
