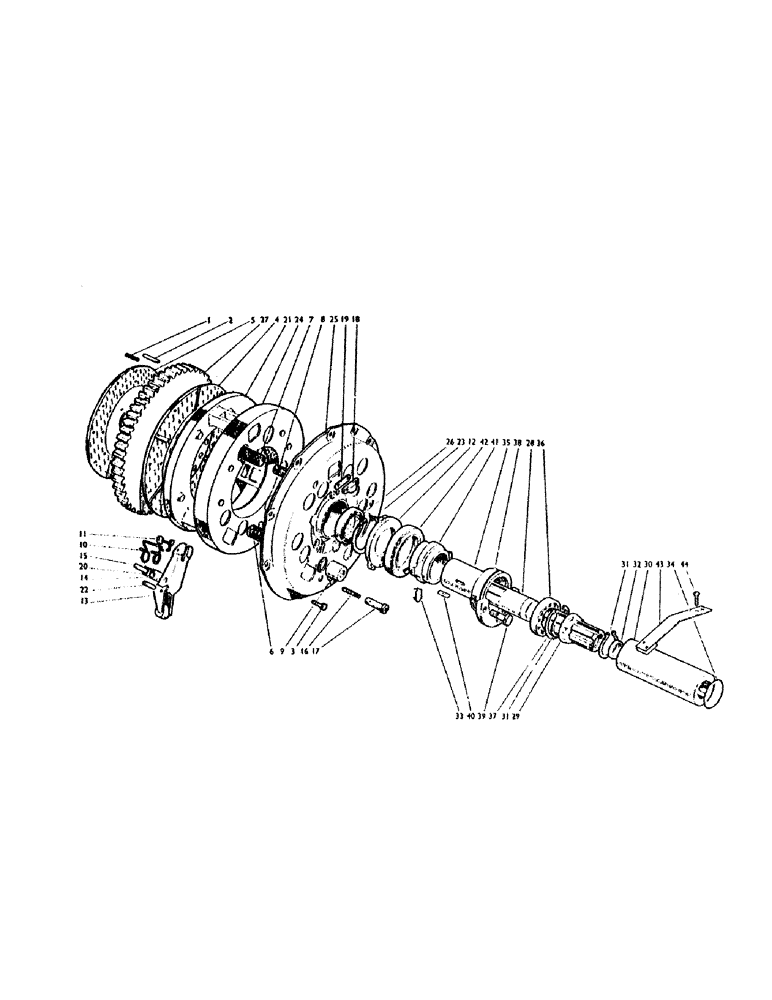

Запчасти Case IH 990A (22) - DOUBLE CLUTCH AND DRIVE, 990/A (03.1) - CLUTCH

1

K13226

SPRING

--Flywheel

3шт.

2

K35840

PIN

Dowel

2шт.

3

K602903

SCREW

Bolt, 3/8 UNC x 7/8 in.

9шт.

K19482

SPRING WASHER

Spring Washer, 3/8 in.

9шт.

4

K915397

SPARE PART

Driven Plate (with facings and rivets)--Main Drive, Supersedes 902786

1шт.

K961830

SPARE PART

Facings (2) and Rivets (26) (Replaces 961015)

1шт.

5

K89322

CLUTCH & DISC ASSY

Driven Plate (with facings and rivets)--PTO

1шт.

K961828

KIT

Facings (2) and Rivets (26) (Replaces 900249)

1шт.

K910170

NO LONGER SERVICED

Cover Assembly (Supersedes 902788)

1шт.

6

K900261

SPRING

Thrust Spring (Buff)--PTO 910170

6шт.

7

K902512

SPRING

Thrust Spring (Brown)--Main Drive Replaces 961017 Outer, 910170

6шт.

8

K902513

SPRING

Thrust Spring (Brown)--Main Drive Replaces 961018 Inner, 910170

6шт.

9

K900256

SPRING

Cup 910170

12шт.

10

K961128

SPRING

--Anti-rattle (Supersedes 900263), 910170

3шт.

11

K900267

RETAINER

--Release Lever Plate 910170

3шт.

12

K900268

PLATE

Release Lever Plate 910170

1шт.

13

K900275

LEVER

Release Lever 910170

3шт.

K900278

PIN

Split Pin 910170

3шт.

14

K900264

ROLLER

910170

3шт.

15

K900265

PIN

--Roller 910170

3шт.

K900274

RING, SNAP

Circlip 910170

6шт.

16

K900269

SCREW

Adjusting Screw (Supersedes 961043) 910170

3шт.

17

K900270

LOCK NUT

Locknut (Supersedes 961044) 910170

3шт.

18

K900257

PAD

Adjusting Pad--Release Lever 910170

3шт.

K900272

SCREW

Setscrew 910170

6шт.

20

K900273

NEEDLE

Roller--Release Lever (Supersedes 961045), 910170

57шт.

21

K961046

PLATE, THRUST

Pressure Plate 910170

1шт.

22

K900266

PIN

910170

3шт.

23

K89326

RING, SNAP

Circlip--Ball Bearing 910170

1шт.

24

K961016

COVER

Inner Cover (with Bushes and Bosses), 910170

1шт.

25

K961047

NO LONGER SERVICED

Outer Cover 910170

1шт.

26

K89325

BALL BEARING,45mm ID x 75mm OD x 16mm W

910170

1шт.

K900279

WASHER

Shakeproof Washer--Adjusting Pad 910170

6шт.

K900271

SPARE PART

Split Pin--Pressure Plate Pin 910170

6шт.

K900280

WASHER

Plain Washer--Release Lever 910170

6шт.

27

K906446

PLATE, THRUST

Separator Plate

1шт.

28

K901754

NO LONGER SERVICED

Clutch Driveshaft 6-Speed Gearbox

1шт.

28

K908364

SHAFT

Clutch Driveshaft 12-Speed Gearbox

1шт.

29

K89429

GASKET

Oil Flinger

1шт.

30

K903395

COUPLING, BREAK AWAY

Muff Coupling

1шт.

31

K12922

RING, SNAP

Circlip, 1 3/4 in. Ext.

2шт.

32

K89333

WASHER

Felt Washer

1шт.

33

K900359

SPRING

Clip--Bearing Carrier

2шт.

35

K89334

SUPPORT

Snout--Thrust Bearing Carrier

1шт.

36

K19172

BALL BEARING

1шт.

37

K621430

CIRCLIP

75 mm. Bore

1шт.

38

K24865

O-RING

O Ring

1шт.

39

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

Setscrew, 5/16 UNC x 1 in. Support snout to rear frame

3шт.

K19481

SPRING WASHER

Spring Washer, 5/16 in. Support snout to rear frame

3шт.

40

K24866

KEY

3/16 x 5/32 x 1 1/4 in.

1шт.

41

K89335

THRUST BEARING

Carrier

1шт.

42

K19169

BEARING, THRUST

Thrust Bearing

1шт.

K89336

SPRING

--Clutch Fork

2шт.

43

K903870

SPRING

Clutch Stop 6-Speed Gearbox

1шт.

43

K914340

Clutch Stop 12-Speed Gearbox

1шт.

44

K624302

SCREW

2 BA x 7/8 in. Clutch Stop to Gearbox Cover, Replaces 624303

2шт.

K623002

LOCK NUT

Nyloc Nut, 2 BA Clutch Stop to Gearbox Cover

2шт.
