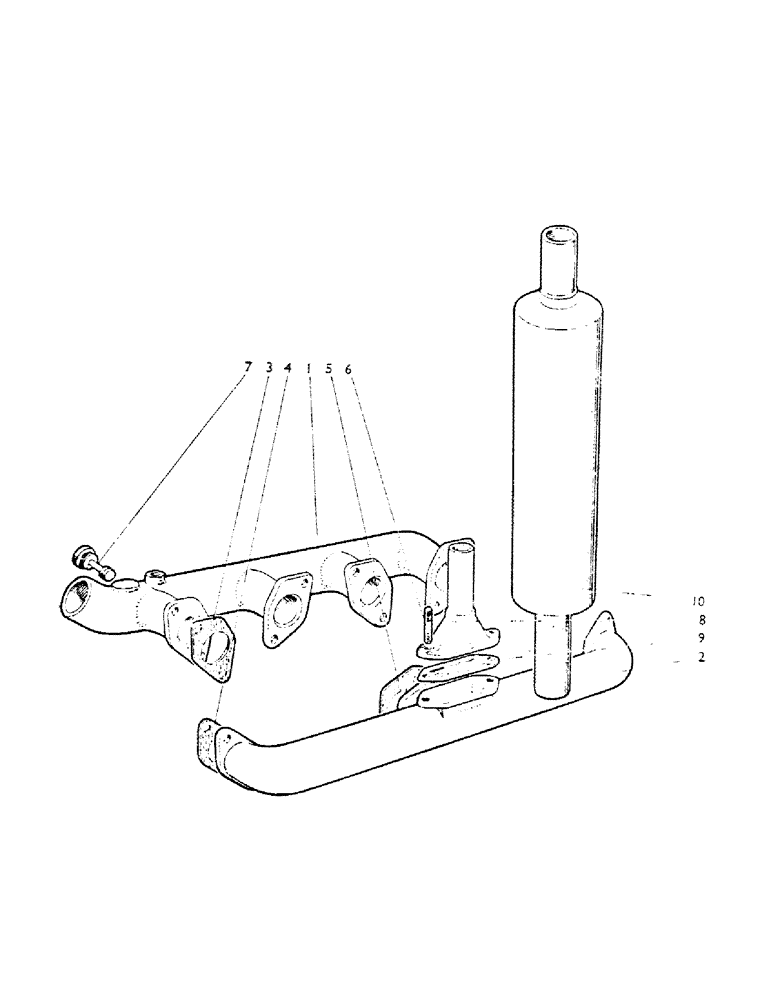

Запчасти Case IH 990A (20) - MANIFOLDS AND EXHAUST (01) - ENGINE

1

K905206

TUBE ASSY.

Manifold--Air Inlet

1шт.

2

K906744

MANIFOLD

--Exhaust

1шт.

3

K905205

GASKET

--Inlet Manifold

2шт.

3

K907746

MANIFOLD GASKET

--Inlet Manifold

2шт.

4

K900771

NO LONGER SERVICED

Gasket--Exhaust Manifold

2шт.

5

K900772

GASKET

--Exhaust Manifold

1шт.

280136

NUT,3/8"-16, G8

(Replaces 607503) 3/8"-16, G8

17шт.

6

K608203

STUD

3/8 UNC x 1 7/16 in.

2шт.

7

K906039

PLUG

Ether Plug

1шт.

8

K905165

FLANGE

--Exhaust

1шт.

9

K68327

GASKET

--Exhaust Flange

1шт.

10

K905166

SPARE PART

Silencer--Exhaust

1шт.

K908255

NO LONGER SERVICED

Pipe--Exhaust Drain

1шт.

K626009

UNION

1шт.

K19588

FERRULE

Olive

1шт.

K623204

FITTING

Union Nut

1шт.
