Запчасти Case IH 990A (18) - RADIATOR AND BLIND (01) - ENGINE

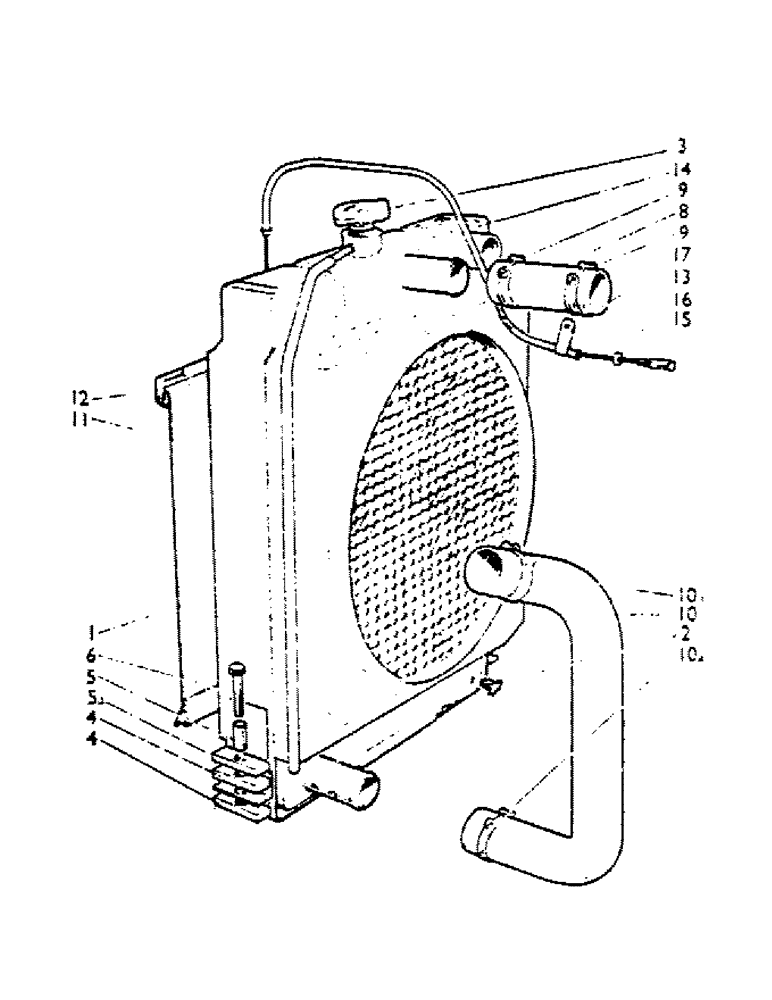

Схема запчастей Case IH 990A - (18) - RADIATOR AND BLIND (01) - ENGINE
15
4
13
5
11
8
2
9
1
16
9
5
14
10
10
10
3
4
17
12
6

Артикул

Название

Примечание

Количество

1

K907084

SPARE PART

Radiator, 50 mm. Block

1шт.

To Tractor 456232

1шт.

1

K909025

RADIATOR

50 mm. Block

1шт.

From Tractor 456233

1шт.

1

K908039

SPARE PART

Radiator, 80 mm. Block

1шт.

To Tractor 456232

1шт.

1

K909644

SPARE PART

Radiator, 80 mm. Block

1шт.

From Tractor 456233

1шт.

2

K622060

PLUG, DRAIN

Drain Tap, 1/4 BSP

1шт.

K19501

WASHER

Fibre Washer

1шт.

3

K906196

CAP

Filler Cap (Supplied with Radiator)

1шт.

4

K85434

SPARE PART

Foot Packing

4шт.

To Tractor 456232

1шт.

4

K908824

NO LONGER SERVICED

Foot Packing

4шт.

From Tractor 456233

1шт.

5

K85435

TUBE

Distance Tube

2шт.

To Tractor 456232

1шт.

5

K908823

TUBE,0.562" OD x 0.875" L

Distance Tube

2шт.

From Tractor 456233

1шт.

5a

K908822

NO LONGER SERVICED

Clamping Plate

2шт.

From Tractor 456233

1шт.

6

K600405

BOLT

3/8 UNC x 1 5/8 in.

2шт.

From Tractor 456233

1шт.

K19482

SPRING WASHER

Spring Washer 3/8 in.

2шт.

From Tractor 456233

1шт.

K908340

CLAMP

Foot Clamp (Supersedes 85436)

2шт.

To Tractor 456232

1шт.

K19483

SPRING WASHER

Spring Washer, 7/16 in.

2шт.

To Tractor 456232

1шт.

280717

NUT,7/16"-14, G5

2шт.

To Tractor 456232

1шт.

8

K37575

HOSE

--Radiator Inlet

1шт.

9

K13078

BRACKET

Hose Clip, 1 7/8 in. dia.

2шт.

10

K906875

RADIATOR HOSE,1.50" ID x 4.875", SAE 20R4 Class D1

Hose--Radiator Outlet

1шт.

10a

K13079

NO LONGER SERVICED

Hose Clip, 2 in. dia.

2шт.

11

K64924

NO LONGER SERVICED

Radiator Blind U383 (906993)

1шт.

12

K64925

ROD

Pull Rod U383 (906993)

1шт.

13

K907290

RADIATOR

Control Cord U383 (906993)

1шт.

To Tractor 456232

1шт.

13

K912476

BRACKET

Control Cord U383 (906993)

1шт.

From Tractor 456233

1шт.

14

K907291

Control Tube U383 (906993)

1шт.

15

K89494

NO LONGER SERVICED

Control Grip U383 (906993)

1шт.

16

K89501

HARDWARE

Brass Ferrule U383 (906993)

1шт.

K36895

NO LONGER SERVICED

Anchor U383 (906993)

1шт.

K11109

NUT

2BA U383 (906993)

1шт.

17

K621616

CLIP

--Control Tube to Inlet Manifold, U383 (906993)

1шт.

K621622

SPARE PART

Clip--Control Tube (Replaces 19925) Tube to air cleaner pipe, U383 (906993)

1шт.

To Tractor 456232

1шт.

K621620

SPARE PART

Clip--Air Cleaner Pipe Tube to air cleaner pipe, U383 (906993)

1шт.

To Tractor 456232

1шт.

K912667

Clip--Control Tube to Air inlet Pipe Tube to air cleaner pipe, U383 (906993)

1шт.

From Tractor 456233

1шт.

K614983

Screw, Pan Head, No. 10 UNF Tube to air cleaner pipe, U383 (906993)

1шт.

120614

NUT,Hex, #10 - 32

Nut, No. 10 UNF Tube to air cleaner pipe, U383 (906993)

1шт.

Выбрано товаров: 55
